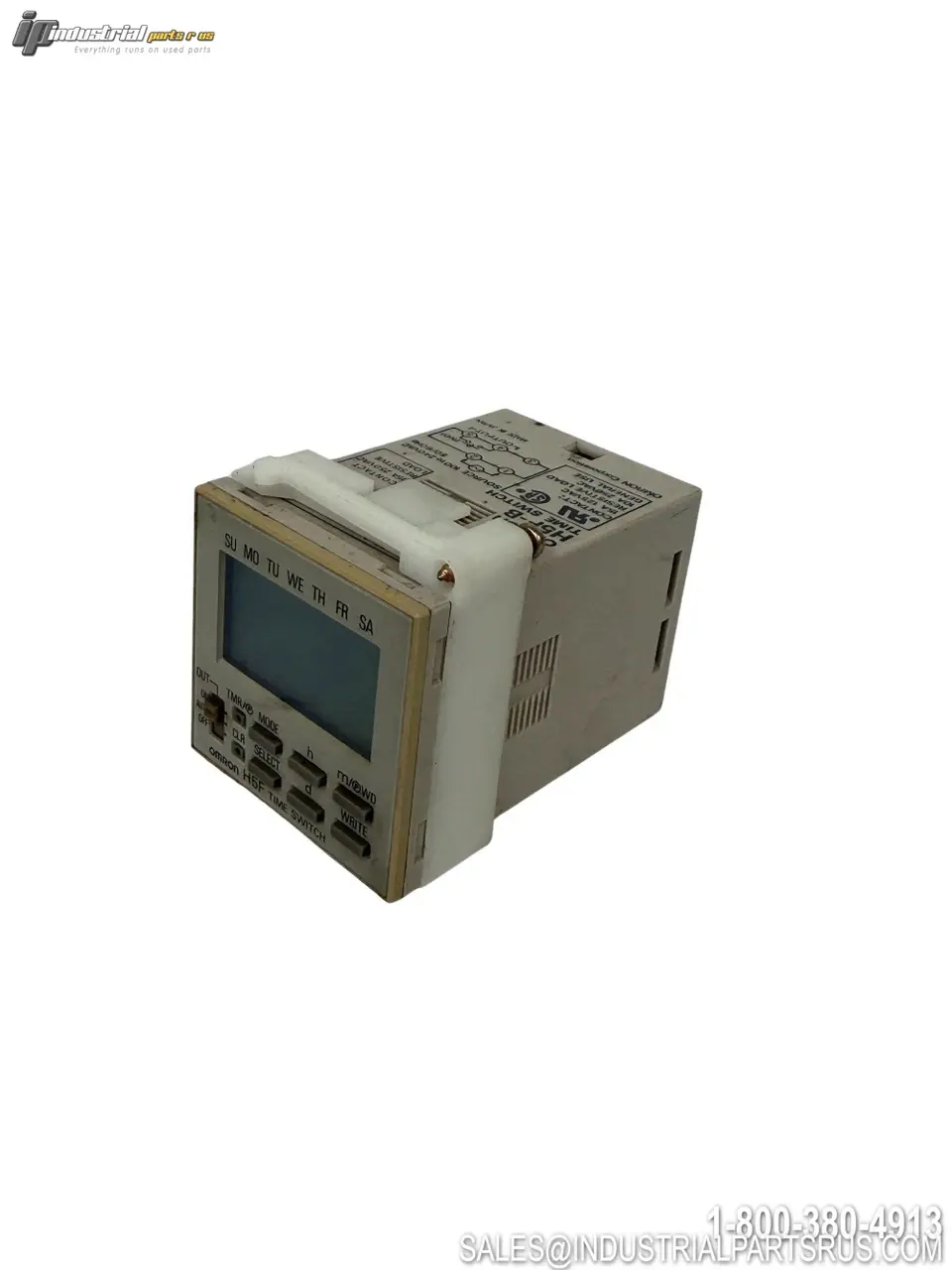

USED OMRON H5F-B

The Omron H5F-B is a 1/16 DIN (48×48 mm) Digital Daily Time Switch designed for precise daily and weekly ON/OFF scheduling in industrial and commercial control panel applications. It features a 7-segment LCD display, memory backup via lithium battery, six operating timer modes, and supports up to 12 ON/OFF operations per day (or 24 in pulse-output mode) across a full 24h×7-day schedule. The H5F-B is a flush-panel-mount model supplied with the Y92F-30 flush mounting adapter and accepts a wide supply voltage range of 100 to 240 VAC at 50/60 Hz.
Specification
Value
Brand
Omron
Model / Part Number
H5F-B
Product Type
Digital Daily Time Switch (Timer)
Series
H5F
Supply Voltage (AC)
100 to 240 VAC (110V / 120V / 200V / 208V / 220V / 230V), 50/60 Hz
Power Consumption
Approx. 2.4 VA at 264 VAC
Output Type
SPST-NO (1 Form A), no-voltage relay contact output
Contact Rating (AC)
15 A @ 250 VAC (resistive load)
Contact Rating (DC)
10 A @ 24 VDC (resistive load)
Number of Outputs
2 (SPST-NO relay contacts)
Time Range
24 hours × 7 days
Max ON/OFF Operations
12 per day (timer mode); 24 per day (pulse-output mode)
Pulse Width Range
1 to 59 s (1-second steps) or 1 to 60 min (1-minute steps)
Operating Modes
Timer ON/OFF; Pulse-output; Forced ON/OFF; Override & auto return; Partial operation on specified day; Holiday setting (6 modes)
Display
Positive 7-segment LCD, 8 mm character height, day/hours/minutes (no backlight)
Panel Language
English
Time Display Format
12-hour (AM/PM) or 24-hour selectable
Accuracy / Total Error
±0.01% ±0.05 s max.
Monthly Time Difference
±15 s (at 25°C)
Memory Backup (Lithium Battery)
Continuous use: 5 years min. (at 25°C); Power-interruption rate 50%: 10 years min. (at 25°C)
Insulation Resistance
100 MΩ min.
Dielectric Strength
2,000 VAC, 50/60 Hz for 1 min (supply to output/non-current-carrying parts); 1,000 VAC for 1 min (between non-continuous contacts)
Mounting Type
Flush panel mount (door mounting); supplied with Y92F-30 flush mounting adapter
DIN Size
1/16 DIN (48 × 48 mm)
Panel Cutout
45 mm × 45 mm
Recommended Panel Thickness
1 to 5 mm
Color
Light gray
Connection Type
M3.5 screw terminals
Applicable Wire
600 V vinyl-insulated, solid or twisted copper, 14–24 AWG, 2 wires max. per terminal
Terminal Tightening Torque
0.98 to 1.17 N·m
Recommended Fuse
T2A, 250 VAC, time-delay, low breaking capacity
Weight (Approx.)
115 g
Standards
EN61010-1, EN/IEC 61326-1, RoHS Compliant
