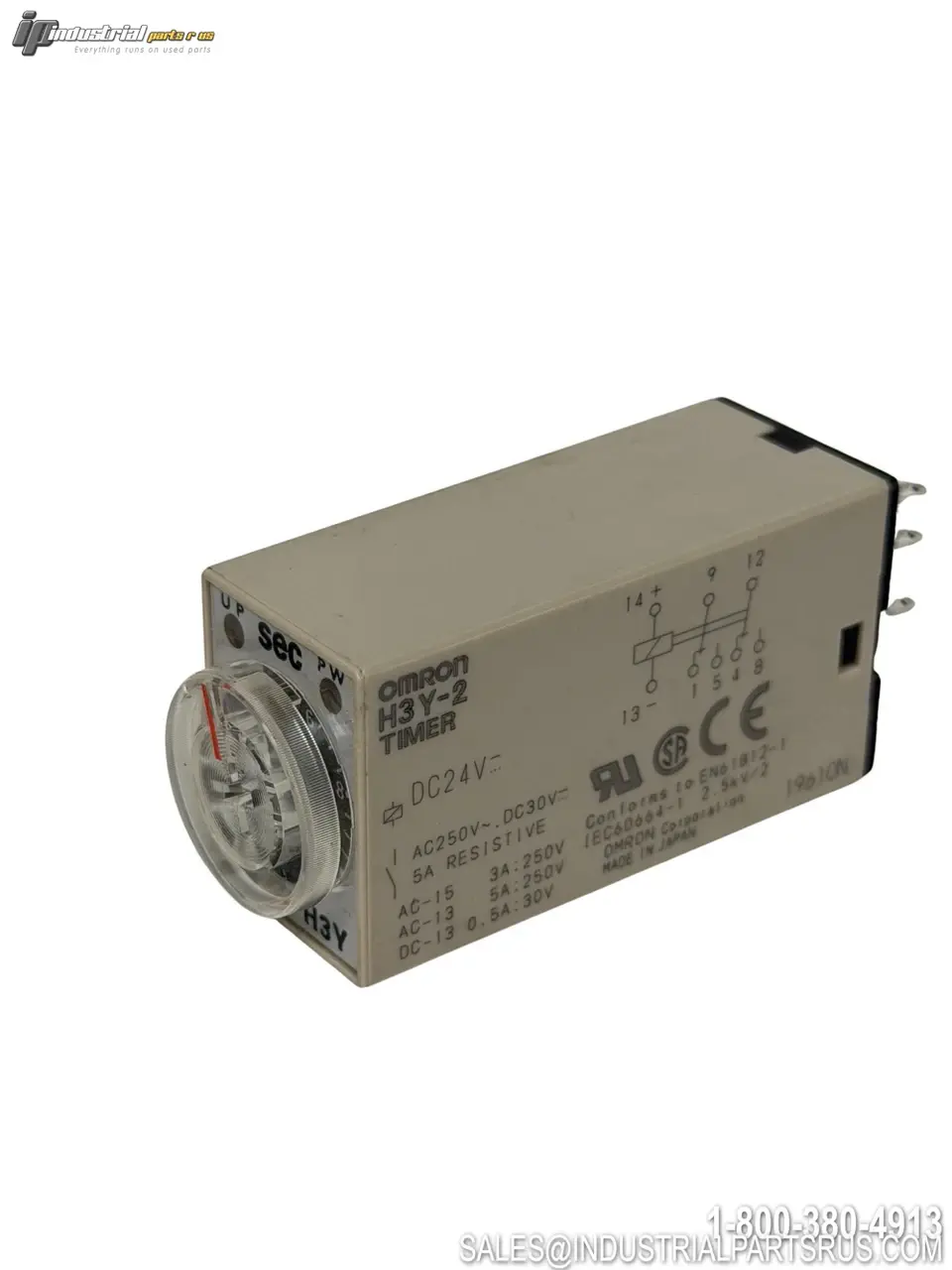

USED OMRON H3Y-2

The Omron H3Y-2 is a miniature solid-state, Power ON-delay timer from Omron's H3Y Series, designed for industrial control panels and machine automation. It features a DPDT (Double Pole Double Throw) output with a large transparent time-setting knob and an 8-pin plug-in terminal configuration that is pin-compatible with Omron's MY Series power relays. The H3Y-2 supports a wide range of AC and DC supply voltages and is suitable for motor starter sequencing, conveyor synchronization, safety interlock delays, and HVAC fan run-on timing applications.
Specification
Value
Brand
Omron
Model / Part Number
H3Y-2
Series
H3Y
Product Type
Solid-State Timer (Time Delay Relay)
Timer Function / Operating Mode
Power ON-Delay (Time-limit operation / Self-reset)
Output Contact Configuration
DPDT (Double Pole Double Throw)
Number of Poles
2
Contact Rating (Resistive)
5 A at 250 VAC, resistive load (cosφ = 1)
Contact Material
Silver (Ag)
Minimum Applicable Load
1 mA at 5 VDC
Supply Voltage Options (AC)
100–120 VAC, 200–230 VAC (50/60 Hz)
Supply Voltage Options (DC)
12 VDC, 24 VDC, 48 VDC, 100–110 VDC
Operating Voltage Range
85%–110% of rated (90%–110% for 12 VDC)
Power Consumption (Relay ON, 24 VDC)
Approx. 1.1 W
Power Consumption (Relay OFF, 24 VDC)
Approx. 0.1 W
Power Consumption (Relay ON, 120 VAC)
Approx. 1.8 VA (1.6 W)
Power Consumption (Relay ON, 230 VAC)
Approx. 2.2 VA (1.8 W)
Timing Ranges Available
0.5 s, 5 s, 10 s, 30 s, 60 s (model-suffix dependent)
Terminal / Pin Configuration
8-Pin Plug-in (Octal)
Mounting Type
Surface mount / DIN Rail (with socket)
Compatible Sockets
PYF08A, PYF08A-E (finger-safe), PYF08F, PY08
IP Rating
IP20
Ambient Operating Temperature
−10°C to +50°C
Insulation Resistance
100 MΩ min. at 500 VDC
Dielectric Strength (Impulse)
2.5 kV/2 (per EN61812-1 / IEC60664-1)
Electrical Life
500,000 operations min. (5 A at 250 VAC, 1800 ops/h)
Mechanical Life
10,000,000 operations min. (no load, 1800 ops/h)
Weight
Approx. 50 g
Dimensions (W × H × D)
20.5 × 63 × 27 mm
Body Color
Beige
Relay Compatibility
MY Series Power Relay (pin-compatible)
Certifications / Standards
UL508, CSA C22.2 No. 14, Lloyds, CCC, CE; EN61812-1, IEC60664-1
Time Setting Method
Large transparent rotary knob (also adjustable with flat-blade or Phillips screwdriver)
LED Indication
Power and output status indicators
We warranty all items for 30 days from date of purchase.
