USED SIMCO D167QG

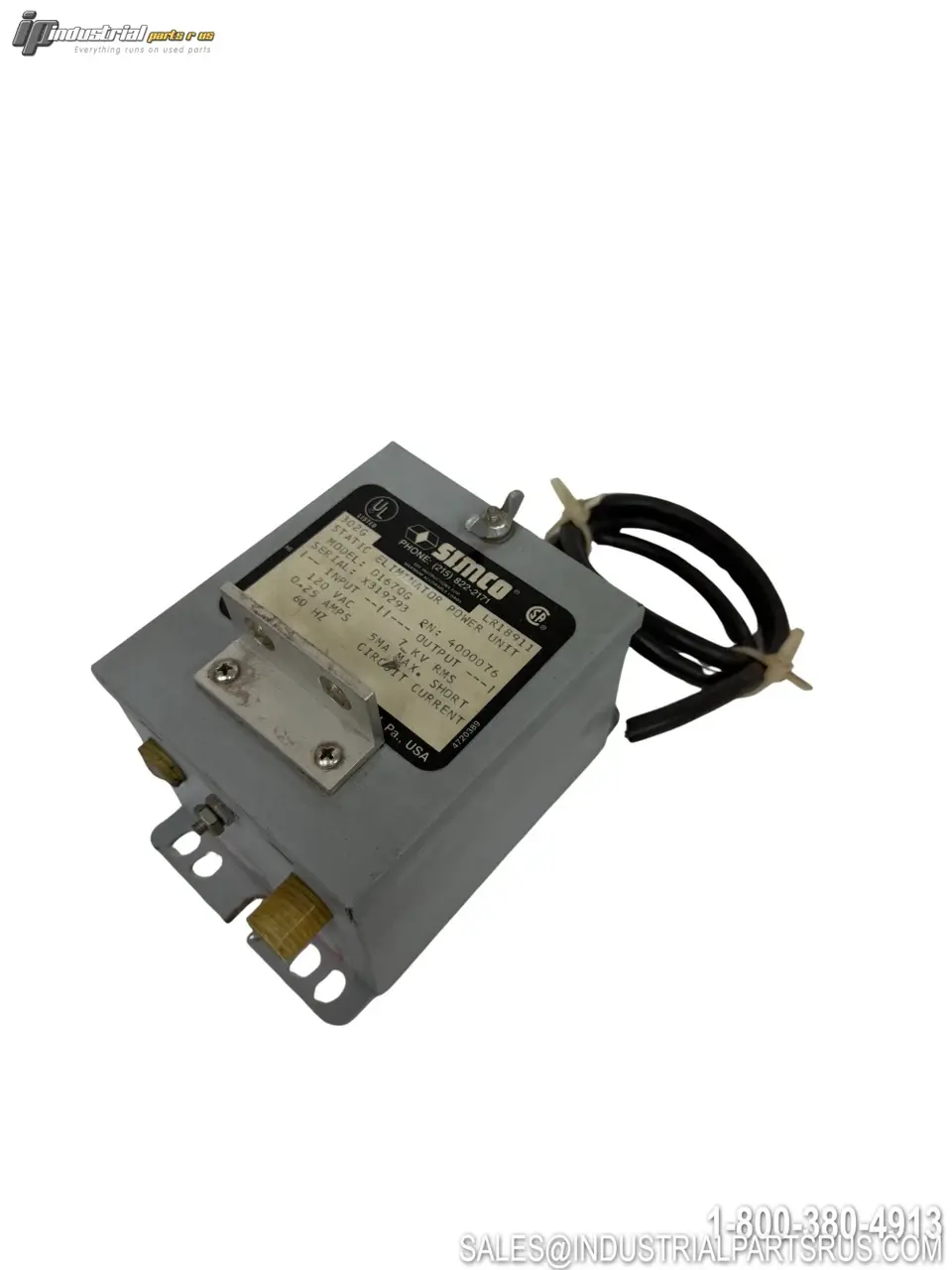

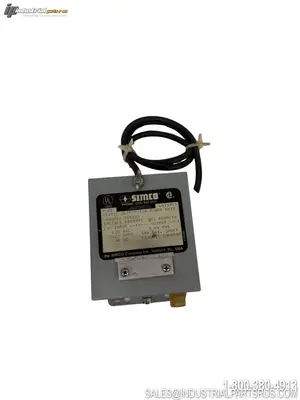

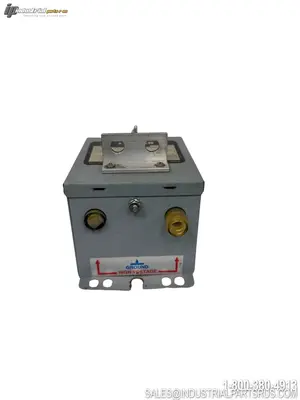

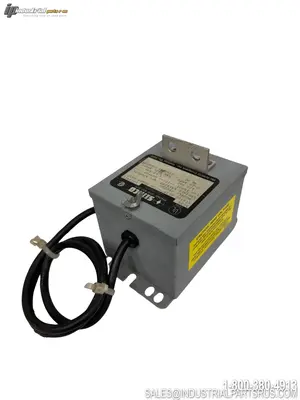

The Simco-Ion D167QG (catalog number 4000076) is a high-voltage static eliminator power supply designed to power Type HS Shockless Ionizing Air Nozzles in industrial static control applications. It accepts 120VAC input and delivers a 7 kV RMS high-voltage output to energize ionizing nozzle systems that eliminate or significantly reduce electrostatic charges on materials, webs, and parts during manufacturing. The unit is environmentally potted with no replaceable parts and features built-in short-circuit protection requiring no external fuse.
Specification
Value
Brand
Simco-Ion (ITW Simco-Ion)
Model / Part Number
D167QG
Catalog / Item Number
4000076
Product Type
Static Eliminator Power Supply (Power Unit)
Series
D Series
Color
Gray
Form Factor
Compact Panel/Wall Mount
Input Voltage
120VAC
Input Current
0.25 A (Maximum)
Input Frequency
50/60 Hz
Maximum Power
30 W
Output Voltage
7 kV RMS
Number of Outlets
1
Connectors
AC Line Cord Input (NEMA 5-15P), Spring-Loaded High Voltage Output Connector
Cooling
Passive (No Fan, Environmentally Potted)
Short-Circuit Protection
Yes (no fuse required)
Construction
Environmentally potted, no replaceable parts
Compatible Equipment
Type HS Shockless Ionizing Air Nozzles (up to 100 in series), MEB Shockless Static Bars, MEJ Shockless Static Bars, Shockless Static Bars with Shielded Cable
Application
Industrial static charge elimination / neutralization
Approvals
UL, CSA, FM
We warranty all items for 30 days from date of purchase.
