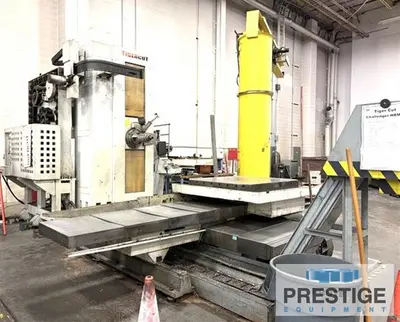

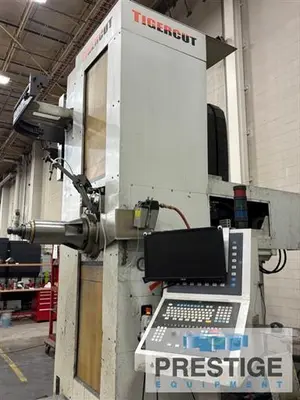

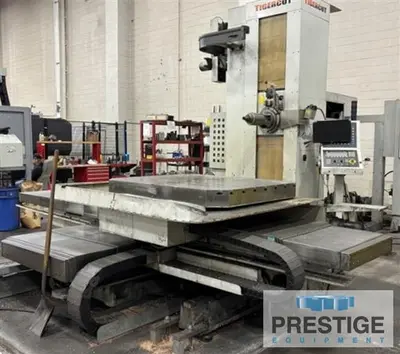

USED 2007 MICROCUT HBM-4

CAPACITY:
Spindle Diameter...................... 4.3": 4.3"
Spindle Taper......................... ISO #50: ISO #50
Vertical Head Travel, y............... 63": 63"
Table Travel, x....................... 86.6": 86.6"
Spindle Travel, w..................... 21.65": 21.65"
Saddle Travel, z...................... 63": 63"
Distance Spindle To Table Center...... 0-63": 0-63"
Built in Rotary Table................. 47.2" x 59": 47.2" x 59"
Table Index........................... 1 Degree: 1 Degree
Rapid Traverse: x,y,z Axis............ 472.5 IPM: 472.5 IPM
Feed Rates: x,y,z Axis................ .04-196.6 IPM: .04-196.6 IPM
Table Load Capacity................... 11,000 LBS: 11,000 LBS
Spindle Speeds (2 Ranges)............. 35-3000 RPM: 35-3000 RPM
Tool Change Time (Tool to Tool)....... 9 Seconds: 9 Seconds
Maximum Tool Weight in Tool Changer... 55 LBS: 55 LBS
Approximate Dimensions: 308" x 197" x 146"
Approximate Machine Weight: 49,600 Lbs.

Equipped With:
FAGOR CNC Control
Built-In Rotary Table
60 Position Automatic Tool Changer
Steel Telescoping Way Covers
Auto Power Off
Auto Lubrication System
Auger Style Chip Conveyor
25 HP Spindle Drive Motor

Features:
FAGOR CNC Control
Built-In Rotary Table
60 Position Automatic Tool Changer
