USED 2012 TSUGAMI B0385
Overview

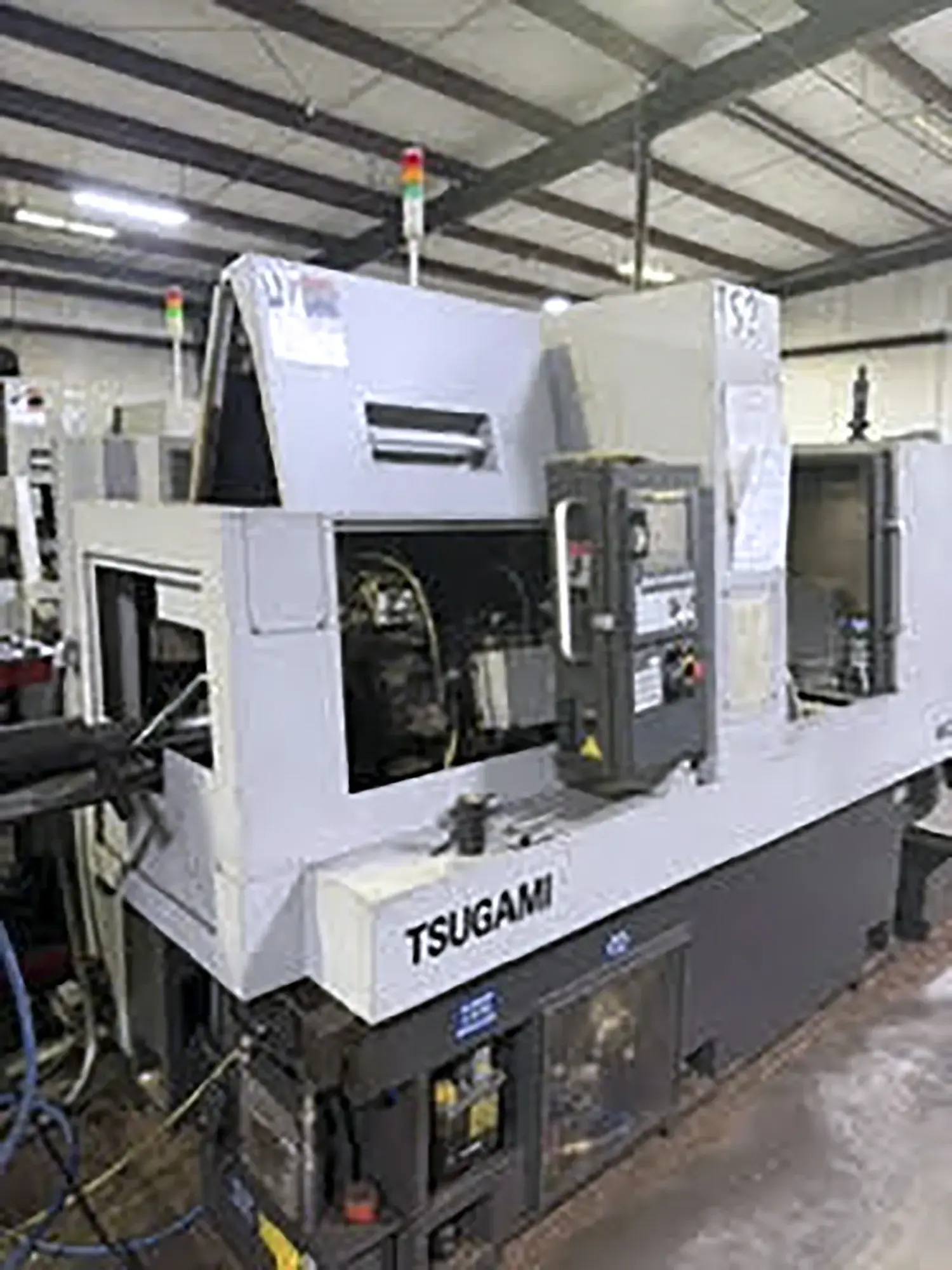

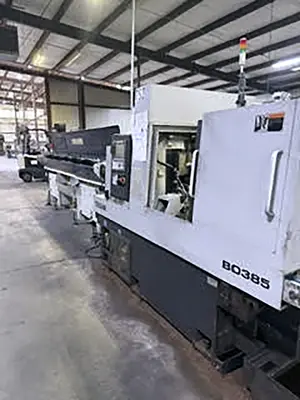

This Tsugami B0385 CNC Swiss Type Screw Machine (2012) delivers high-precision, multi-axis machining for complex, slender parts from bar stock. Ideal for medical, aerospace, automotive and hydraulic components, it offers efficient, reliable production for demanding precision manufacturing applications.
Specs
Edge Patriot 338 Barloader

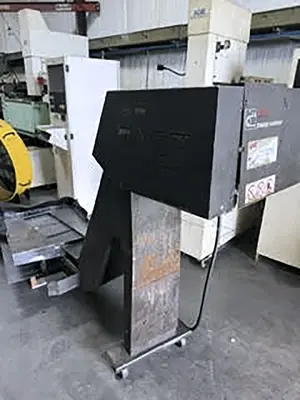

Chip Conveyor
Guide Bushing

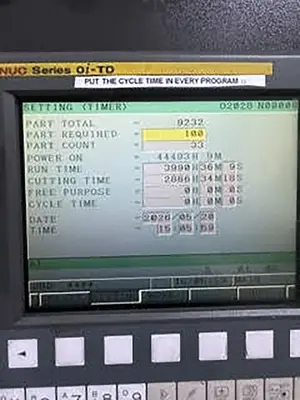

Power on Hours: 44403
Run Time Hours: 3990
Cutting Time Hours: 2866
All other tooling and accessories to be verified by buyer
Bar Capacity: 38 mm (1.4961 in)
Max Machining Length: 250 mm (9.8425 in)
Max Drilling Diameter: 13 mm (0.5118 in)
Main Spindle Motor: 11 kW (14.8 hp)
Main Spindle Speed: 6,000 rpm
Back Spindle Motor: 5.5 kW (7.4 hp)
Back Spindle Speed: 7,000 rpm
Total tool capacity: 23 positions
LIVE TOOL SPEEDS: Up to 5,000 rpm
Controllable axes: 5 (X, Y, Z, C, and optional B-axis)
Guide bushing range: 3 mm–38 mm (optional guide bushing-less mode)
Coolant System: MP H08, 2000 psi (1000 psi option)
Mist collection: Tri-Mist 850
Chip Conveyor: Turbo chip conveyor
Bar Feeder: FMB Turbo 3‑36
Weight: 4,600 kg (10,140 lb)
Footprint: 99.2″ × 52.9″ × 77.5″
Equipped With
Edge Patriot 338 Barloader
Chip Conveyor
Guide Bushing
Power on Hours: 44403
Run Time Hours: 3990
Cutting Time Hours: 2866
All other tooling and accessories to be verified by buyer
