Used

USED 1979 HARTFORD 2S

Ontario, Canada
Asking Price
USD $541.61
1 available
304Listings|147Followers
Overview
Vertical Mills

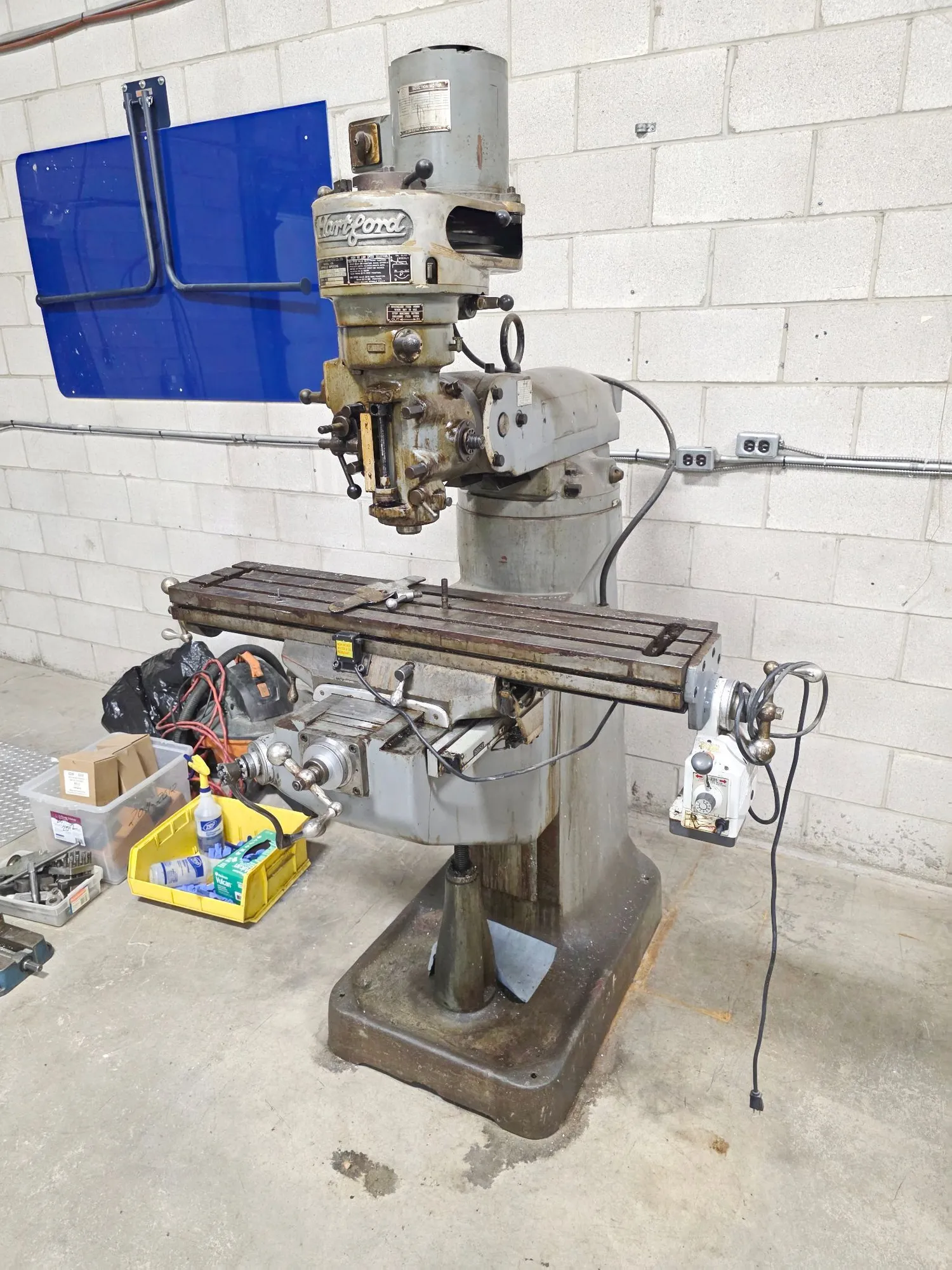

1979 Hartford 2S Vertical Knee Mill, Step-Pulley Vertical Head, Automatic Quill Feed, Tilting Head, X-Axis Power Table Feed, Quill Depth Scale, One-Shot Lubrication

Specs
Table-W
9"
228.6 mm
Table-L
42"
1,066.8 mm
X-Axis
30"
762 mm
Y-Axis
12"
304.8 mm
Z-Axis
16"
406.4 mm
Power
2 hp
1.5 kW
RPM
2,720 RPM
2,720 RPM
Taper
R8
R8
Distance Spindle Nose to Table
18.5"
469.9 mm
Quill Travel
5"
127 mm
Overarm Travel
12"
304.8 mm
Made In
Taiwan
Taiwan
Dimensions
58" X 58" X 82" (Approx.)
58" X 58" X 82" (Approx.)
Weight
1,850 lb
1,850 lb
Equipped With

Step-pulley vertical head
Tilting head
Automatic quill feed
Align X-axis power table feed
Knee & saddle hand feeds
Quill depth scale
Spindle brake / reversing switch
One-shot lubrication
