USED 2014 MAZAK VARIAXIS I-800

Mazak Variaxis I-800 5 Axis Machining Center (2014)

Axis Travels & Capacity

X-Axis Travel: 28.74" (730 mm)
Y-Axis Travel: 33.46" (850 mm)
Z-Axis Travel: 22.05" (560 mm)
A-Axis (Tilt Range): -120° to +30° (Trunnion tilt)
C-Axis (Rotation Range): 360° full contouring (0.001° indexing minimum)

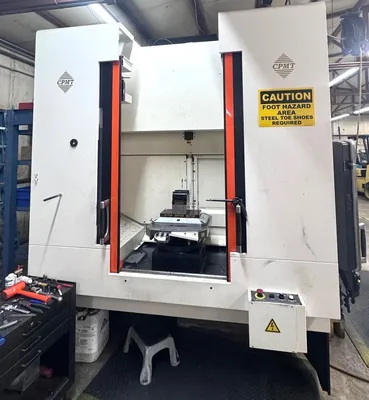

Pallet Size: 31" x 24" (2) Pallet
Max Workpiece Diameter: 39.37" (1,000 mm)
(Note: limited to 28.74" / 730 mm if equipped with a 2-pallet changer)
Max Workpiece Height: 19.69" (500 mm)
Max Table/Pallet Load: 2,200 lbs (1,000 kg)
Spindle Specifications
Spindle Taper: CAT 50
Spindle Speed: Standard 10,000 RPM (High-torque configuration).
Spindle Motor: 50 hp (37.3 kW) peak / 40 hp continuous.
Spindle Nose Clearance: Compact nose geometry designed to handle shorter, more rigid toolholders.

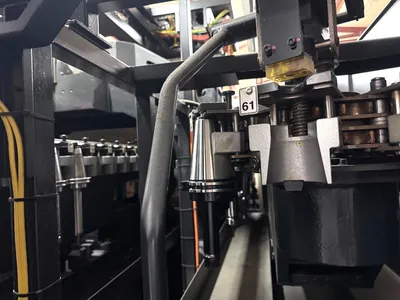

Tool Changer & Feedrates
Tool Storage Capacity: 80 ATC
Tool Exchange Speed: Approx. 4.3 seconds chip-to-chip.
Max Tool Weight: 44 lbs (20 kg).
Max Tool Length: 16.34" (415 mm).
Rapid Traverse Rates (X/Y/Z): 1,654 ipm (42 m/min).Control,
Footprint & Weights

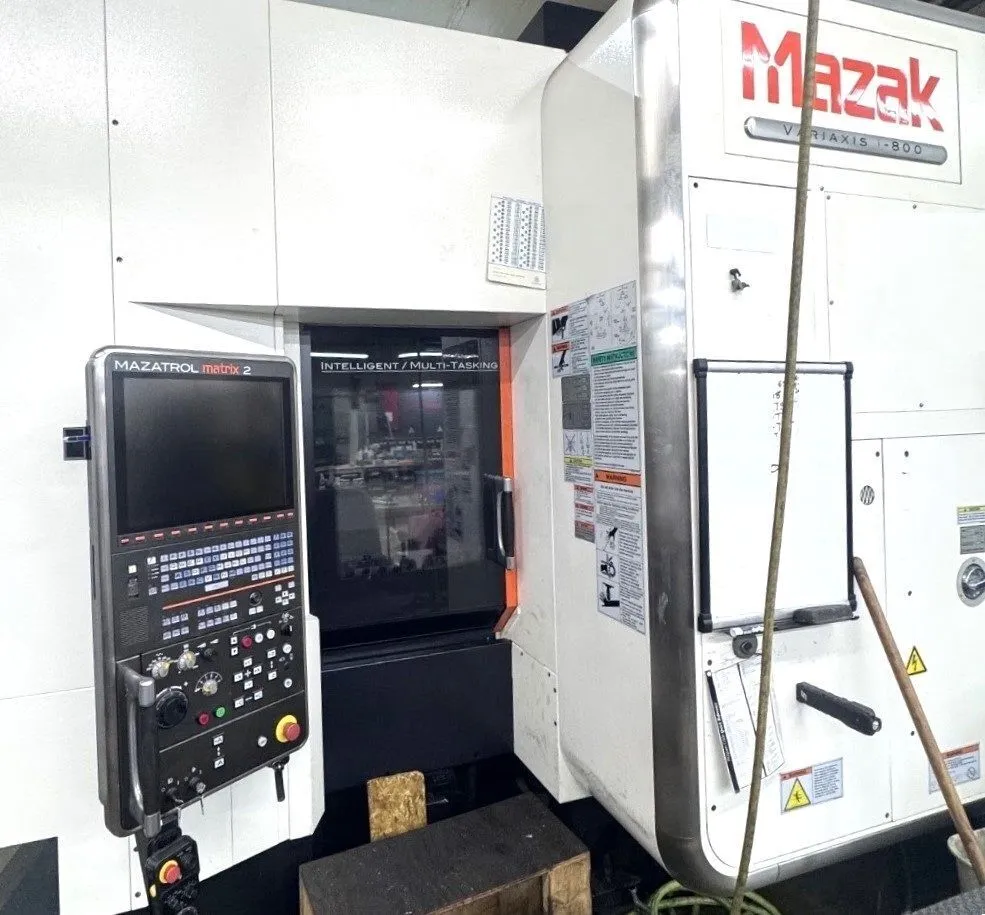

CNC Control: Mazatrol Matrix 2
Machine Weight: ~43,297 lbs to 46,297 lbs (19,639 kg to 21,000 kg) depending on ATC magazine type and pallet systems.
Coolant System: Factory configurations typically feature standard through-spindle coolant capability, often paired with high-pressure systems (ranging from 230 to 1,000 psi)
Machine Weight 49500
Utilization: 17-4 SS & 6061 Aluminum
Hours: 8820 Cut Hours
