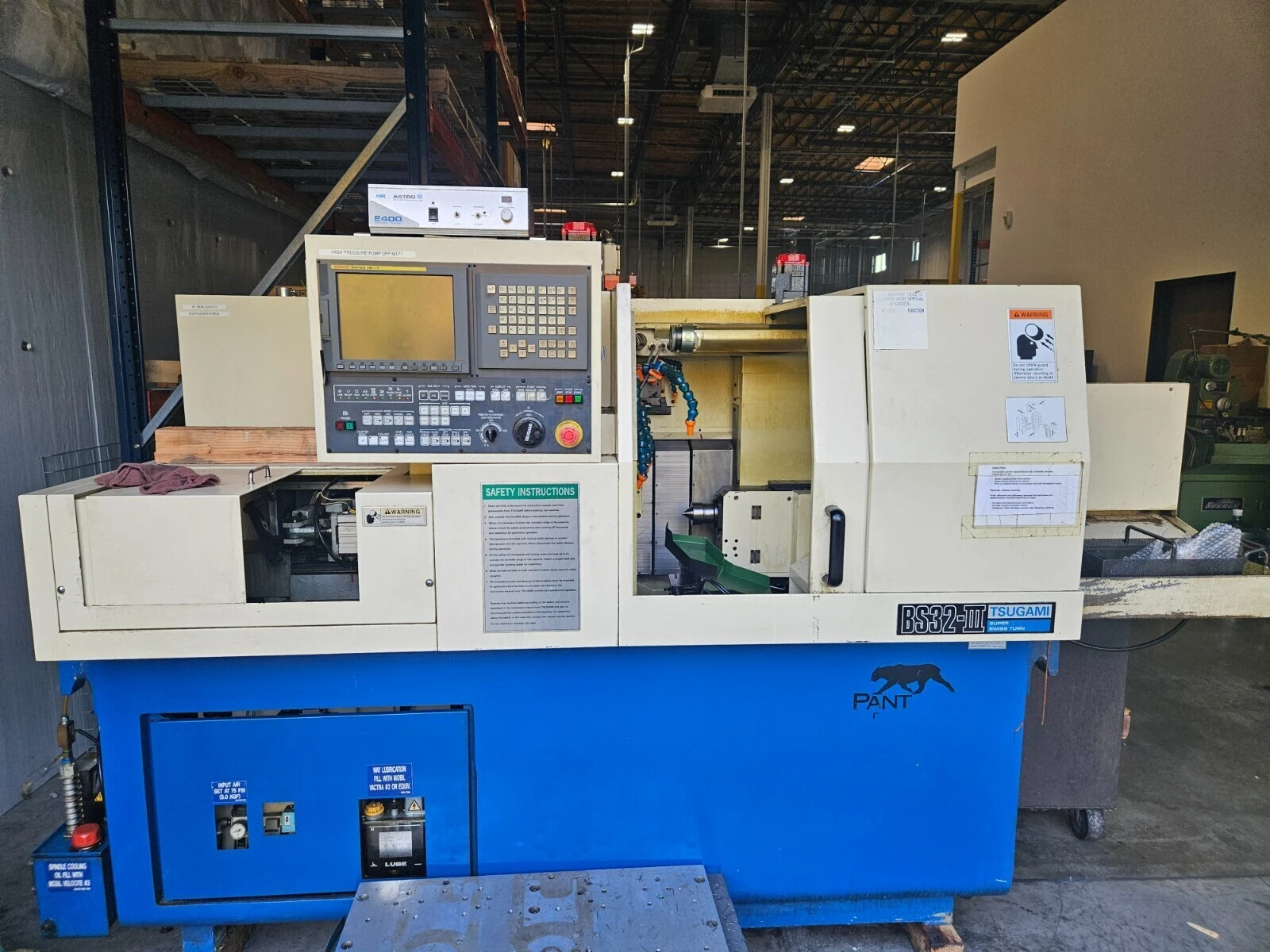

USED 2003 TSUGAMI BS32C-III
Overview
Used Swiss Type Automatic Screw Machine features a bar capacity of 0.79", max machining length of 8.27", and main spindle speeds of 200–8,000 RPM. Equipped with Fanuc 18i-TB CNC Control, IEMCA Bar Feeder, and Chip Blaster.
Specs
Bar Capacity 0.79"
Max Machining Length 8.27"
Max Main Spindle Drilling Diameter 0.39"
Max Main Spindle Tapping Diameter 0.31"
Max Back Spindle Gripping Diameter 0.79"
Max Back Spindle Drilling Diameter 0.39"
Max Back Spindle Tapping Diameter 0.31"
Max Tool Spindle Drilling Diameter 0.31"
Max Tool Spindle Tapping Diameter 0.24"
Max Tool Slotting Cutter Tapping Diameter 1.77"
Max Back Rotary Tool Drilling Diameter 0.24"
Max Back Rotary Tool Tapping Diameter 0.2"
Spindle Speeds (Main)200 – 8,000 RPM
Spindle Speeds (Back)200 – 7,000 RPM
Tool Spindle Speeds 200 – 5,000 RPM
Back Rotary Tool Speeds 200 – 4,000 RPM
Tool Storage Capacity 22 (Note 2)
Tool Size 0.63" x 3.94"
Machine Dimensions 84.6″ x 57.1″ x 71.9″
Weight 6,175 Lbs
Equipped With
Fanuc 18i-TB CNC Control
IEMCA Bar Feeder
Chip Blaster
