USED 1999 ALFA LAVAL CLIP8RH
Overview
Description

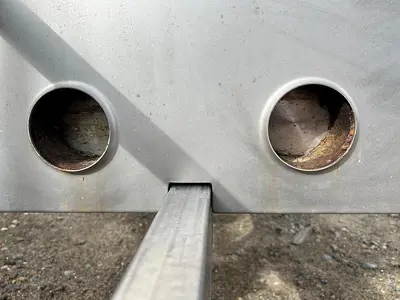

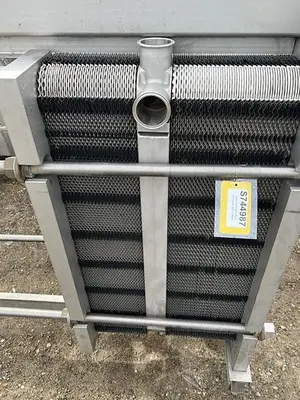

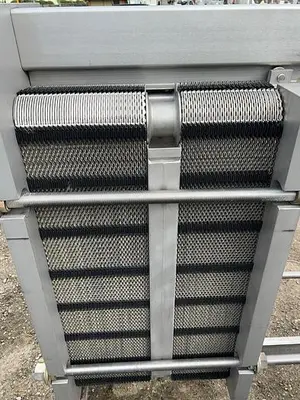

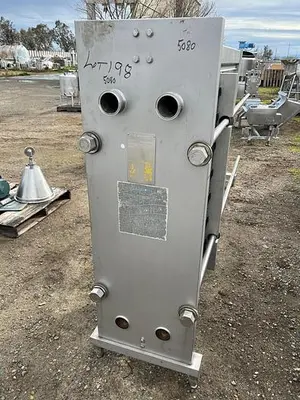

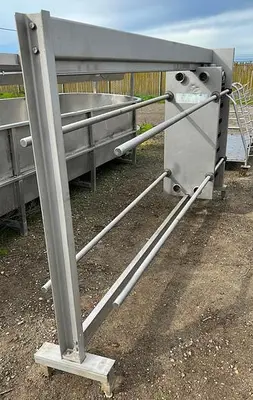

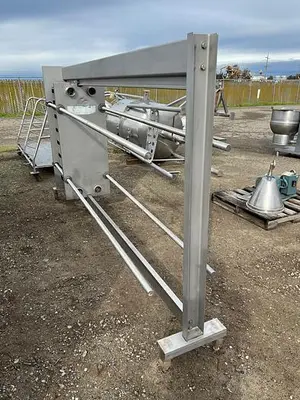

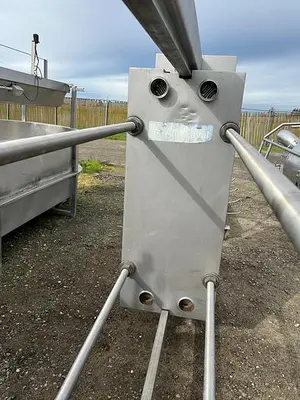

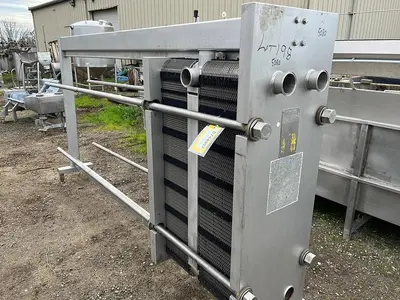

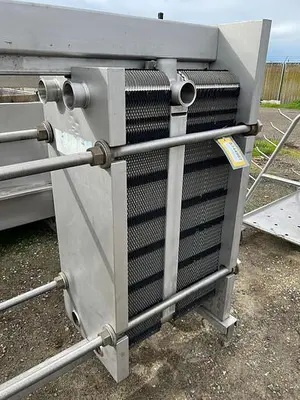

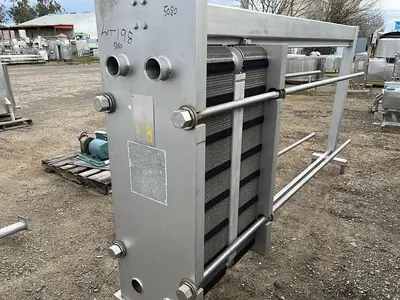

Alfa Laval Stainless Steel Plate Heat Exchanger with Divider Block and Snap-In Gaskets, Model CLIP8RH, Serial number 30104-98746, approximately 500 square feet of surface area. Rated for 15.5 bar (225 PSI) @ 110 degrees C (230 degrees F). Includes a total of (101) 16" wide x 48" high stainless steel plates - (57) plates between end and divider block and (44) plates between divider block and middle. End plates includes (4) 3" diameter corner openings. Divider block measures 3-1/4" thick and includes (3) 3" diameter top openings with tri-clamp connection. Heat exchanger can be expanded another 7'.
Specifications
Stock Number: S744987
Manufacturer: Alfa Laval
Model: CLIP8RH
Year: 1999

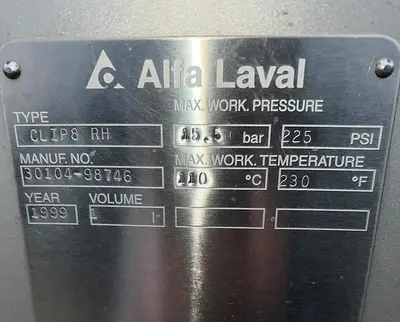

Serial Number: 30104-98746
Square Feet: 500 SF (Estimate)
Materials of Construction: Stainless Steel
Basis: FOB
