Heat Exchanger, Shell & Tube, S/st, Heat Transfer Pump Skid, (4) Pumps #S744939

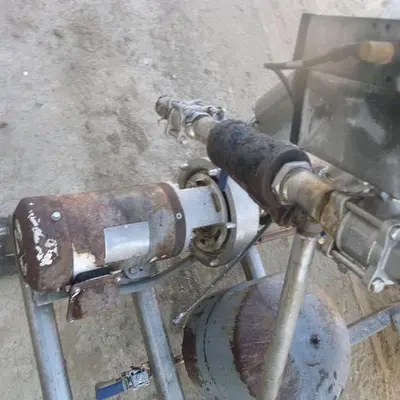

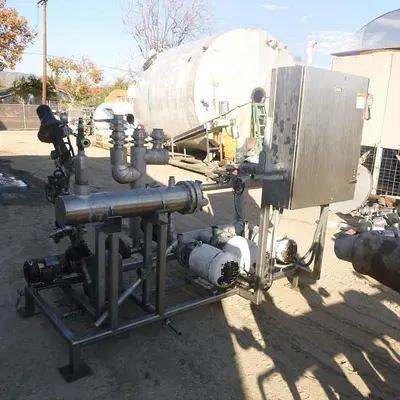

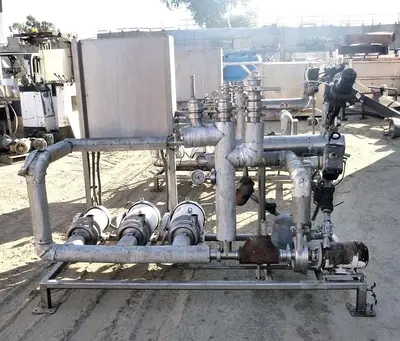

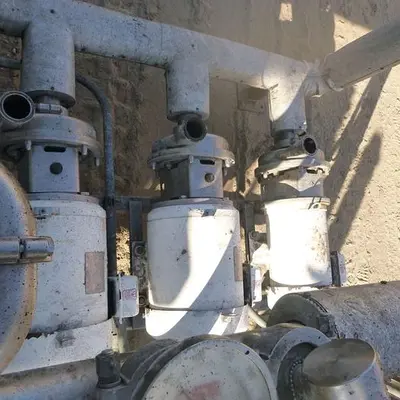

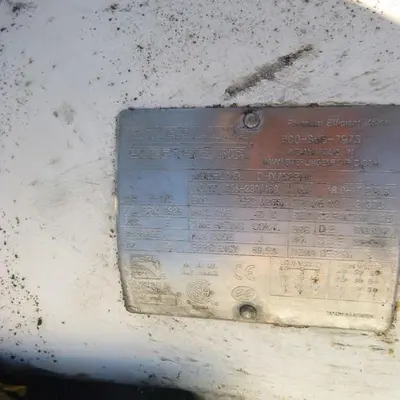

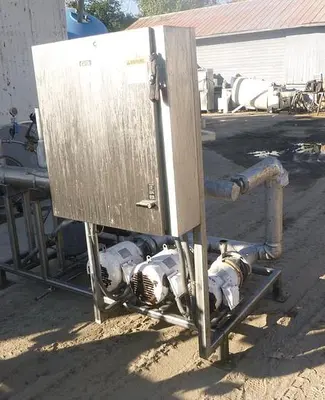

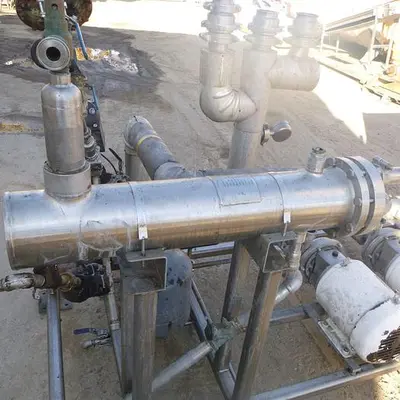

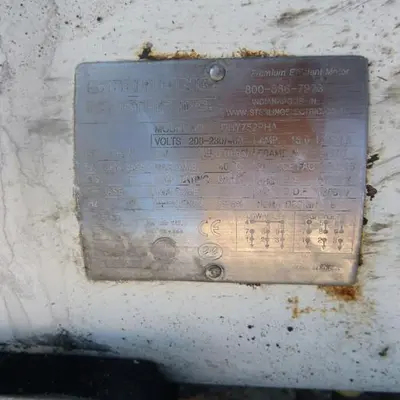

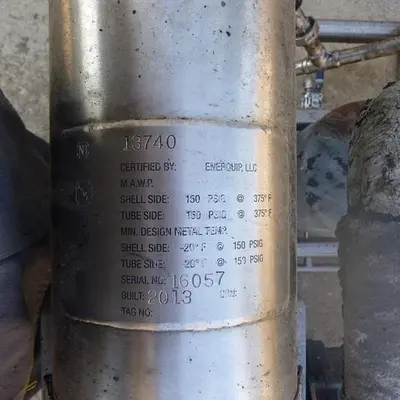

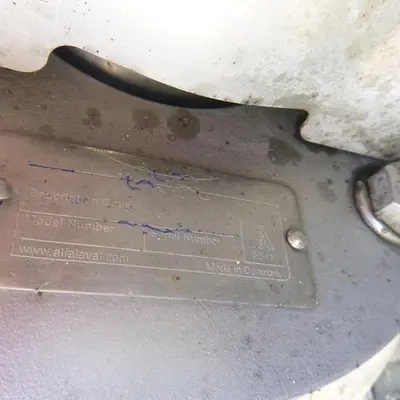

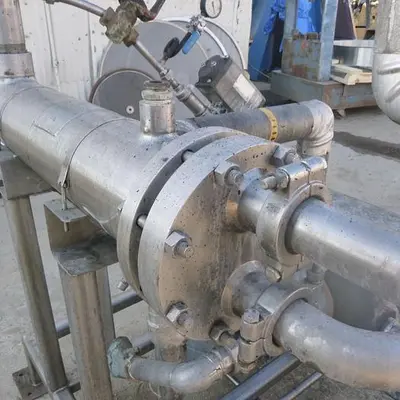

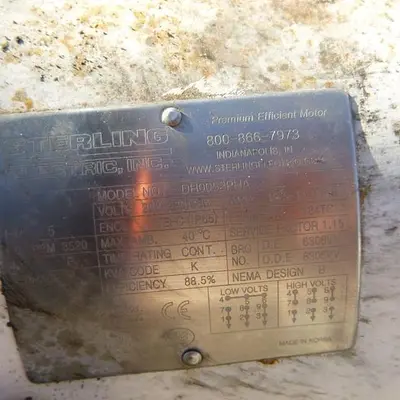

Stainless steel Heat transfer pump skid with Enerquip stainless steel shell & tube heat exchanger and (4) Alfa Laval centrifugal pumps and an. Includes (1) Enerquip Stainlesss steel shell & tube heat exchanger, shell measures 6.5 " diameter x 34" long, rated for MAPW 150 PSIG at 375 F, Minimum design metal temp is -20 degrees F at 150 PSIG, built 2013, Serial number 16057. Skid includes (3) 7-1/2 HP centrifugal pumps, with 2.5" diameter inlet & 2" outlet, driven by 7.5 HP, 208-230/460V, 3/60 Hz, 3525 RPM motor and (1) 5 HP centrifugal pump with 2.5" diameter inlet & 2" outlet, driven by 5 HP, 208-230/460V, 3/60 Hz, 3520 RPM motor. Includes stainless steel electrical box. Unitized on stainless steel skid.

Stock Number: S744939
Manufacturer: Enerquip
Year: 2013
Serial Number: 16057
Square Feet: 0
Tube Measurements: 6.5 " diameter x 34" long
Tube Matirials: Stainless Steel
Basis: FOB
