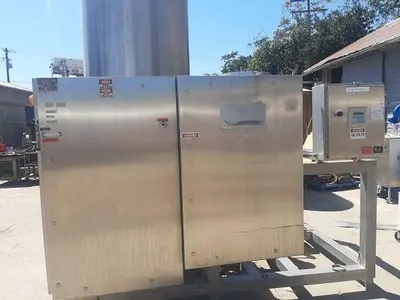

USED H&K CIP

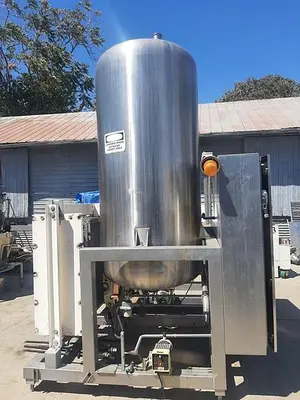

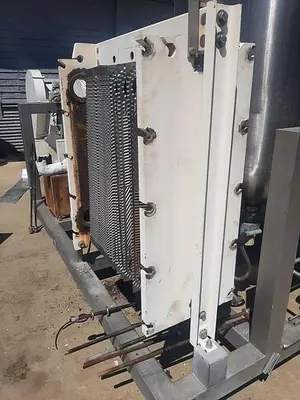

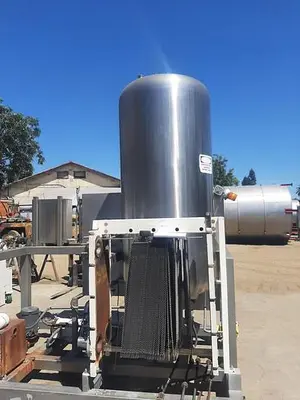

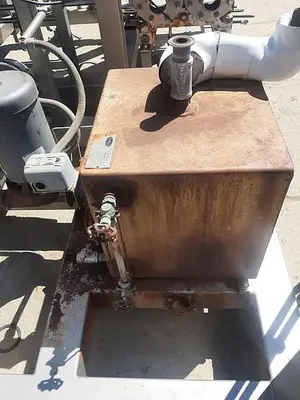

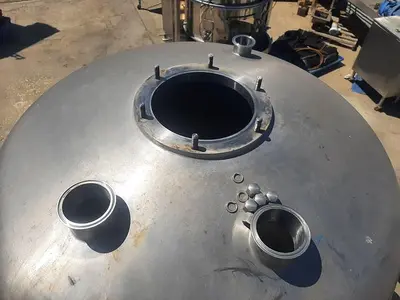

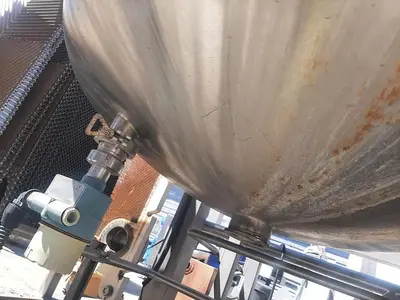

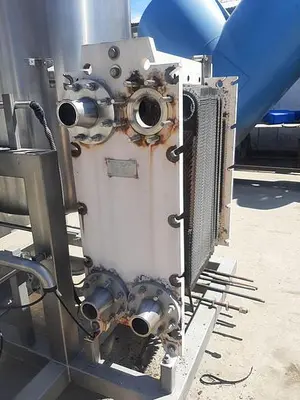

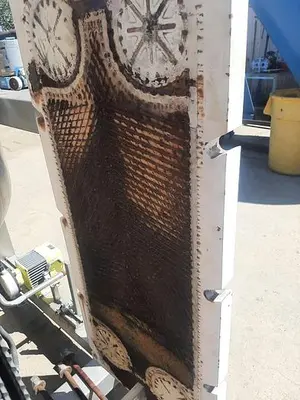

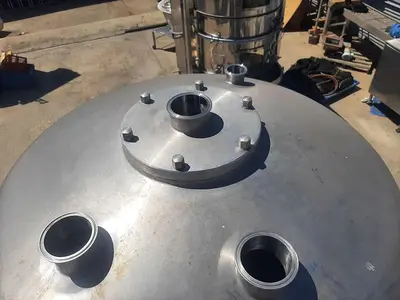

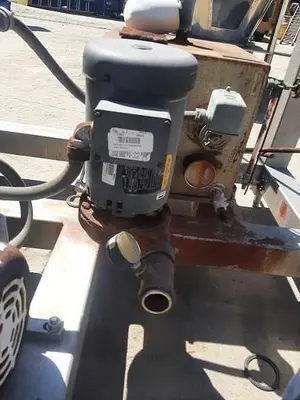

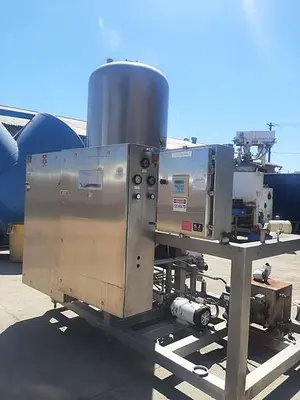

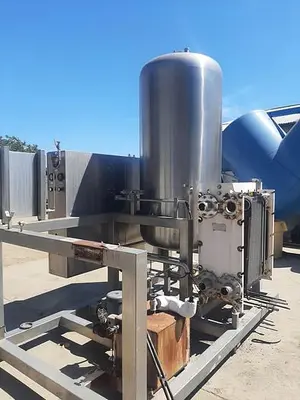

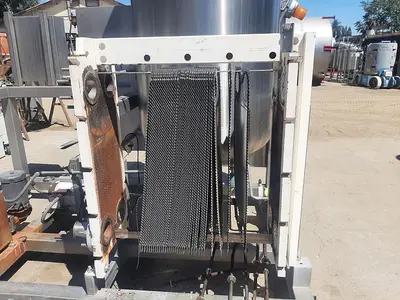

H&K Single Tank CIP Skid, 350-Gallon Single Shell, 316 Stainless steel construction. Model: CIP, Serial number 99241. Inside tank dimensions: 36" diameter x 74"straight side, dish top and bottom with 3" center bottom discharge and (3) 3" & (1) 2" sanitary top inlets. Skid includes: Sentry Equipment Plate-type Heat Exchanger Model X26-65, all contact parts constructed of 316 stainless steel, with (49) plates (15.25" x 37.25"), 3" inlet & outlets, designed for 100 PSIG at 316 degrees Fahrenheit, Serial number 0030P27538; (1) Waukesha Centrifugal pump Model 2065, 2.5" Inlet / 2" outlet with sanitary clamp (No name plate available); (1) Sterlco 41410-J Simplex 15 GPM Condensate Return Pump with 15-Gallon Steel Tank rated for 40 PSI; and (1) Milton Roy C741-35T 20 gallons per hour, 25 PSI, 120V-AC Metering Pump. Previously used at Coca Cola facility.

Stock Number: S744750
Manufacturer: H&K
Model: CIP
Serial Number: 99241
Type: 1-Tank
Size: 350-Gallon
Materials of Construction: 316 Stainless Steel
Basis: FOB
