Tank, 30 Gallon, 316L Stainless Steel, 100 PSI, DT/DB, Alloy Products #S744749
Overview
Description

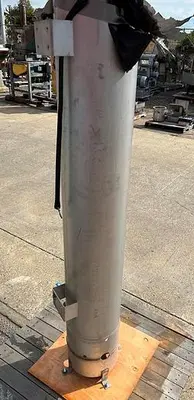

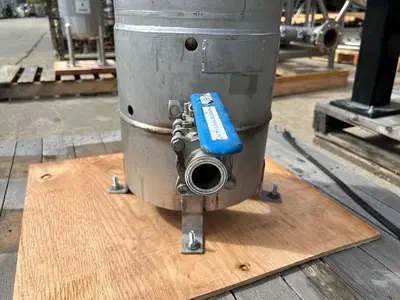

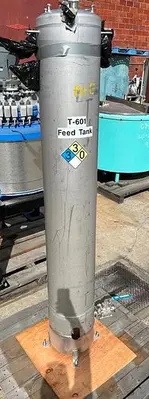

Alloy Products 30-Gallon 316L Stainless steel vertical pressure tank, rated for 100 PSI at 100 degrees Fahrenheit / minus 20 degrees Fahrenheit, measures 12" diameter x 69" straight side with dish top and bottom. Includes center bottom discharge leading to elbow extending to 1-1/2" diameter side discharge with manual ball valve and tri-clamp connection. Dish top includes (7) openings including (3) 1", (3) 1/2" and (1) approximately 3" center top opening, all tri-clamp connections. Serial number C221348-1-001. ASME code vessel.
Specifications
Stock Number: S744749
Manufacturer: Alloy Products
Serial Number: C221348-1-001
Gallons: 30
Measurements: 12" diameter x 69" straight side with dish top and bottom
Materials of Construction: 316L Stainless Steel
Basis: FOB
