Tank, 425 Gallon, C/st, 250 PSI, Steel Structures, 3/8" Thick #C744537
Overview
Description

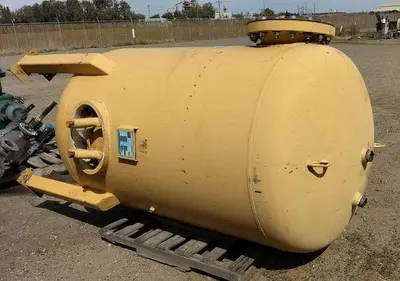

Steel Structures 250 PSI Pressure Tank, approximately 425-gallon, rated for 250 PSI at 120 degrees Fahrenheit to 0 degrees Fahrenheit. Vessel measures 3'8" diameter X 5' straight side with ASME dish heads. Shell thickness is 3/8" and head thickness is 0.328". Includes 16" diameter flanged top side opening, 16" x 12" oval side bottom manway with inward swinging cover, 3" center bottom outlet, (2) 2" diameter top openings and lifting eyes. Vessel is ASME code constructed. National Board number 698. Drawing number 2354A-1. Previously used at biofuel operation.
Specifications
Stock Number: C744537
Manufacturer: Steel Structures
Gallons: 425
Measurements: 3'8" diameter X 5' straight side with ASME dish heads
Heads: Head thickness is 0.328"
Shell Ratings: Shell thickness is 3/8"
Previous Use: Bio-diesel operation
Basis: FOB
