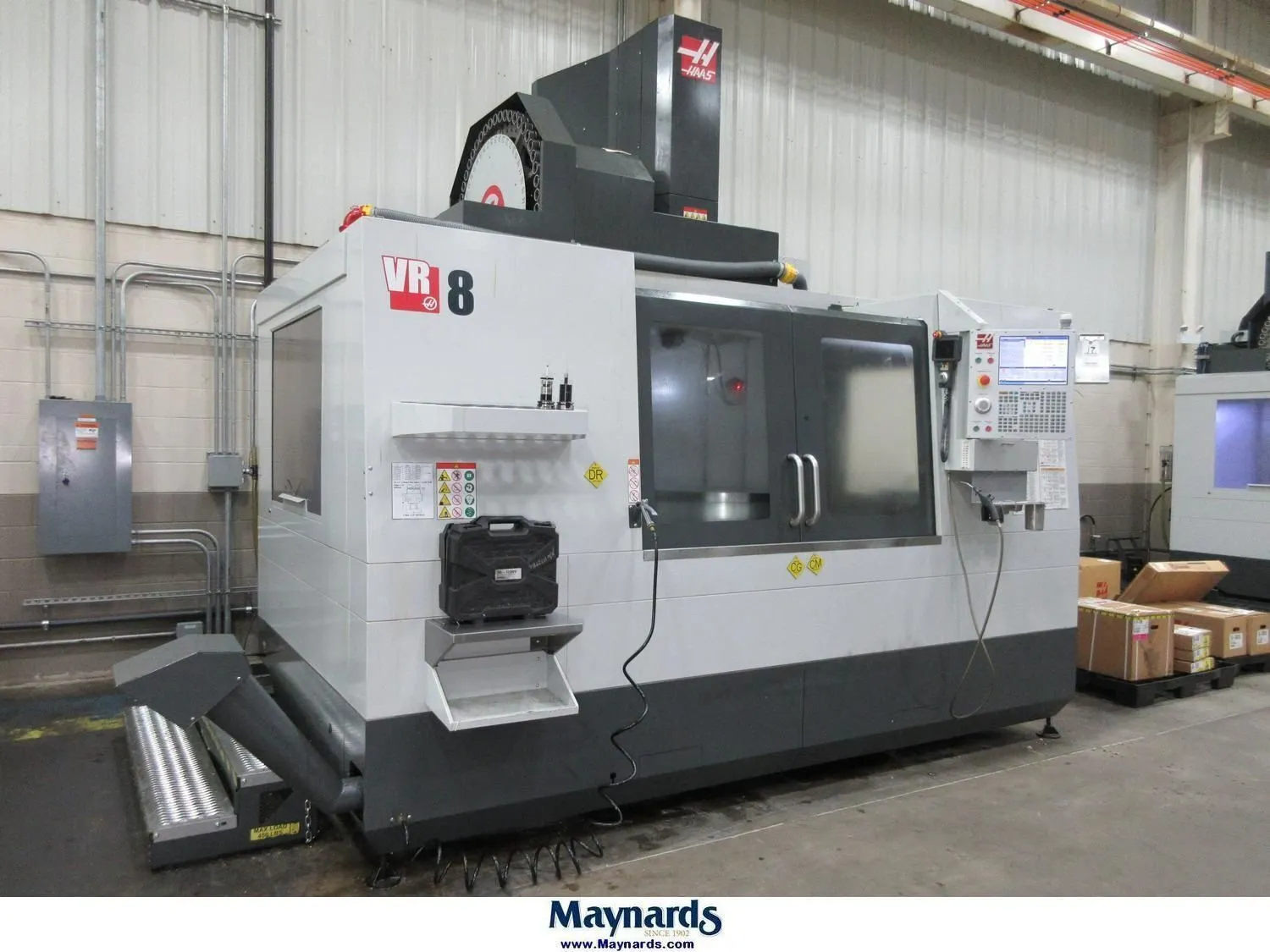

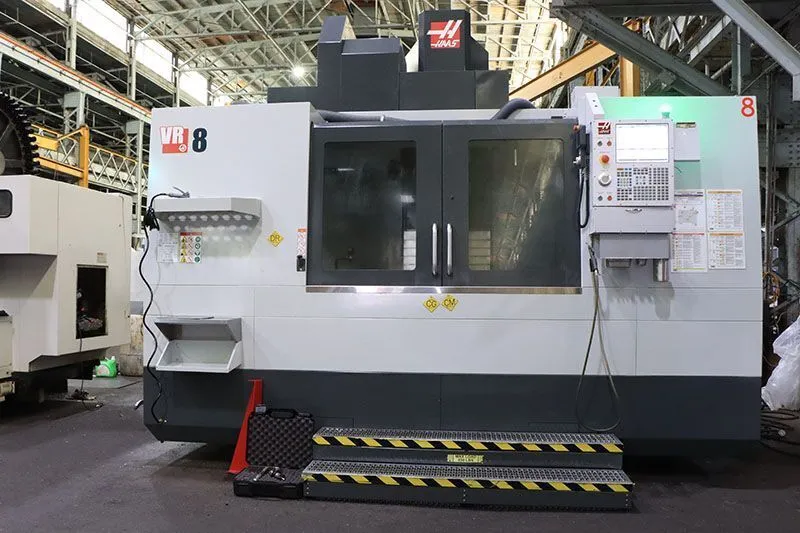

USED 2022 HAAS VR-8
Overview
Haas VR Series VMCs are the perfect solutions when your 5-axis parts are too large to rotate using traditional rotary tables and trunnions. Each VR Series machine features a large T-slot table that easily supports large workpieces and fixtures, and a powerful 2-axis gimbaled spindle head that provides access to nearly any angle on the part for complex shapes, undercuts, and a full 5-Axis machine tool.
Specs
SPECIFICATIONS:
X-AXIS TRAVEL ........................... 64"
Y-AXIS TRAVEL ........................... 40"
Z-AXIS TRAVEL ........................... 42"
B-AXIS HEAD TILT ........................ 120° TO 120°-
C-AXIS HEAD ROTATION .................... 245° TO 245°-
SPINDLE NOSE TO TABLE ................... 4" TO 34"
TABLE SIZE .............................. 64" X 36"
MAXIMUM WEIGHT ON TABLE ................. 4,000 LBS
SPINDLE SPEEDS UP TO .................... 20,000 RPM
SPINDLE MOTOR ........................... 29 HP
SIDE MOUNT TOOL CHANGER ................. 50 POSITIONS
SPINDLE TAPER ........................... HSK63A
APPROXIMATE MACHINE WEIGHT .............. 25,000 LBS
Equipped With
EQUIPPED WITH:
* DUAL-AXIS TILTING & ROTATING SPINDLE HEAD
±245° of C-axis rotation, ±120° of B-axis tilt
5-axis simultaneous machining
Powerful axis brakes for rigid 3+2 machining
* HAAS NEXTGEN 5-AXIS CNC CONTROL
ADV TOOL MGMT, MEDIA DISPLAY M-CODE, RIGID TAPPING
DYNAMIC WORK OFFSETS & TOOL CENTER CONTROL
SECOND HOME POSITION, ETHERNET, HIGH SPEED MACHINING
* REMOTE JOG HANDLE w/TOUCHSCREEN DISPLAY
* RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
RENISHAW PART AND TOOL PROBES (RENISHAW OMP-40)
* 8" HIGH X 36" DIAMETER FIXTURE PLATE
* COOLANT SYSTEM
* 50 POSITION SIDE-MOUNTED TOOL CHANGER
* CHIP AUGER
* 29 HORSE POWER GREASE PACKED
* HAAS MIST CONDENSER
Approximate Floor space 204.7" Wide with Auger, 151" Operating Depth, 153" Max height
Shipping dimensions 159.2" W x 116" D x 130" H
Approximate machine weight 25,000 Lbs
Voltage 440/3/60
iNSPECT UNDER POWER IN OUR NJ WAREHOUSE - WE WILL PREP AND LOAD FOR YOU
