Tank, 750 Gallon, 304 S/st, 20 PSI, DT/DB, Morfab #S744379
Overview
Description

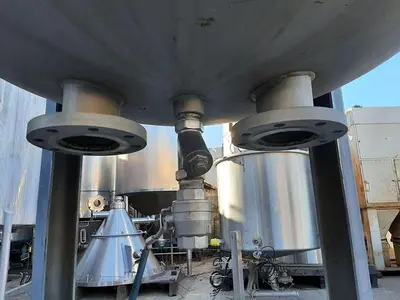

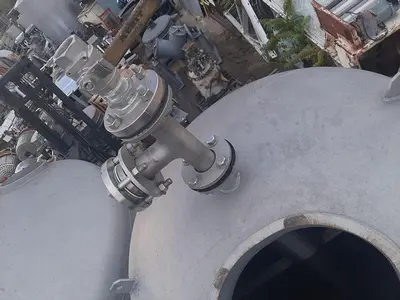

Morfab Company (ESC) tank, approximately 750-gallon capacity, 304 stainless steel construction. Tank measures 48" diameter X 96" straight side. Maximum operating temperature: 100 degrees Fahrenheit, design pressure 20 PSIG. Top inlets (1) 2" NPT (1) 2" diameter, bottom (1) 2" NPT (2) 4"diameter flange bottom ports with (3) 6" x 12", 4" diameter screen pipe, 1 on the top, 2 on the bottom, (2) manways 16" x 12" (1) on the top (1) on the bottom side stand on 4 stainless steel legs. Serial number 14269, National Board number 13269. Last used as Siloxane Removal tank. 3/16'', 0.187 inches shell thickness.
Specifications
Stock Number: S744379
Manufacturer: Morfab Company
Serial Number: 14270
Gallons: 750
Diameter: 48" diameter X 96" straight side
Materials of Construction: 304 Stainless Steel
Maximum Temperature: 100 degrees Fahrenheit
Basis: FOB
