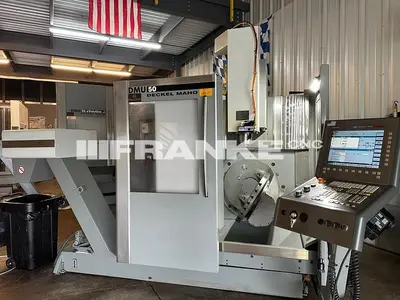

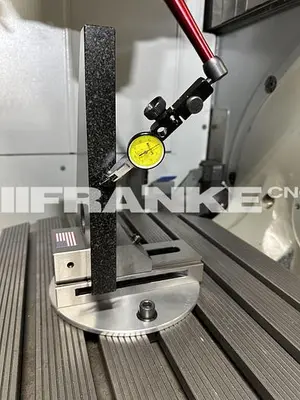

USED 2007 DMG MORI DECKEL MAHO DMU 50
Overview

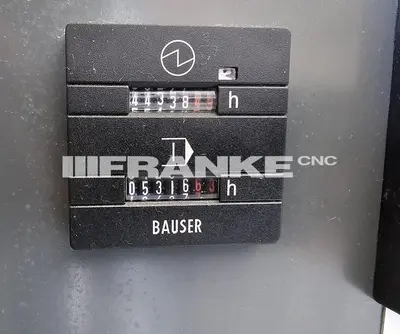

*Mint condition* with only 5,317 spindle on hours over the LIFE of the machine total !
Came out of a model shop where it was used only for Research & Development work
Machine was built at DECKEL MAHO Seebach GmbH-Seebach, Germany
Equipped With:

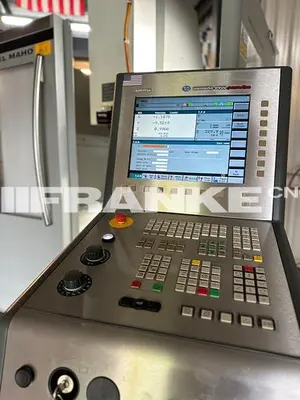

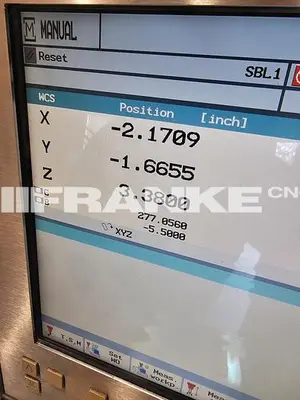

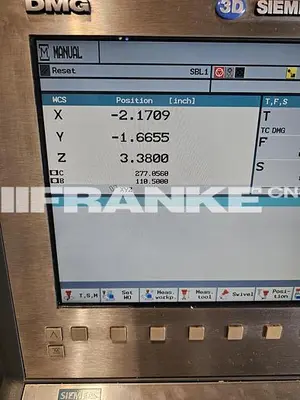

SIEMENS 840D powerline control including ShopMill open
Electric hand wheel for control
Chip conveyor
BLUM laser tool measuring of tool length and diameter

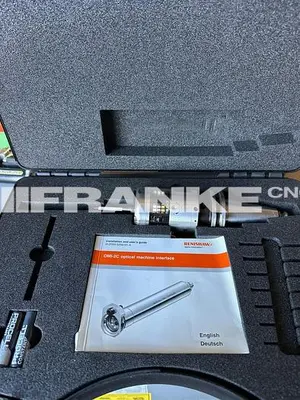

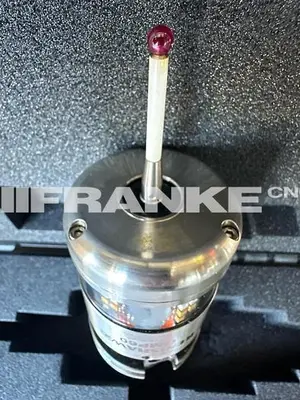

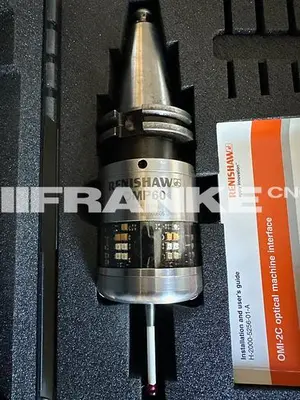

RENISHAW OMP60 infrared touch probe
Additional coolant nozzles
Direct measuring system HEIDENHAIN glass scales X/Y/Z 0.00031" resolution positioning
Direct measuring system HEIDENHAIN rotary encoders B/C axes 18 arc second positioning
Machine is offered subject to availability and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Specs
Working range X axis path (longitudinal): 19.7"
Working range Y axis path (transverse): 17.7"
Working range Z axis path (vertical): 15.7"
Type of drive: AC-controlled digital direct drive
Spindle speed range: 20-10,000 rpm
Spindle drive power (100/40% DC): 12.1/17.4 hp
Spindle torque (40% DC): 60 lb/ft
Spindle Taper: CAT 40
Minimum distance from spindle nose (vertical) to table surface: 5.91"
Feed Drives drive type X/Y/Z: Digital AC-controlled
Feed rate: 787 ipm
Rapid traverse X/Y/Z: 945 ipm
Feed power X/Y/Z: 4.8 kN

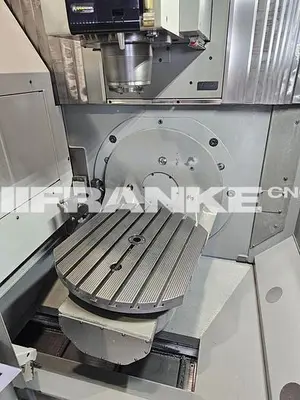

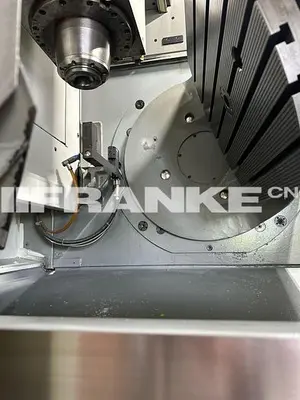

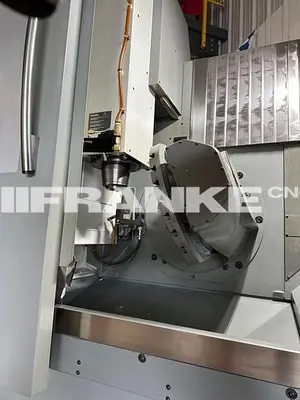

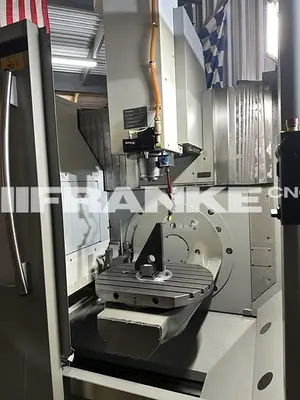

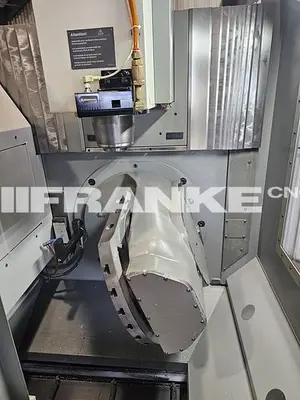

Swivel rotary table with digital drives clamping area: 24.8" diameter x 19.7"
Table maximum load: 440 lbs
Table clamping: Hydraulic
Table rotating range (C axis): 360 degrees
Table swiveling range (B axis): 116 degrees (-5.5/+110.5 degrees)
Table measurement system: Direct
T-slots: Number x type x distance: 7 x DIN 650: 0.55 x 2.48"
Centre bore: 1.1811" diameter
Disk type tool magazine: 16 pockets
Tool diameter, maximum: 3.15" diameter
Tool diameter, maximum, with free adjacent pockets: 5.12"
Tool length, maximum: 11.81"
Tool weight, maximum: 13.2 lbs
Maximum weight of all tools in magazine: 175 lbs
Coolant tank capacity: 18.5 gallon
Flood coolant flow: 4.5 gallon/min
Flood coolant pressure: 14.5 psi
Number of nozzles cooling water/air: 6/4
Total weight of machine: 8,650 lbs
