USED 2006 MIKRON MILL MIKRON UCP 600 VARIO
Overview
5-AXIS MACHINING CENTERS
MIKRON UCP 600 Vario
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS
FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:

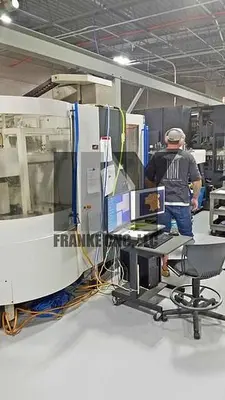

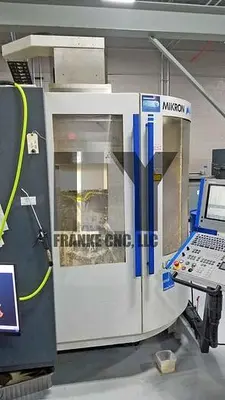

Used 2006 +GF+ MIKRON UCP600 Vario 5-Axis Machining Center with 7 x APC:
*May be inspected in plant under power by appointment*
Machine was built at +GF+ in Nidau, Switzerland 7/2006
Machine was first installed new in the USA 11/2006 (Single Owner Machine)
CONTROL

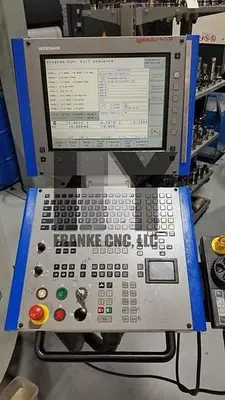

Heidenhain iTNC 530 with Ethernet and electronic handwheel for part setup
WORKING RANGE
FEED DRIVE
WORKING TABLE
Maximum workpiece weight (automatic with pallet changer) 198 lbs (90 kg)
Max pallet size possible for this machine 13.8" x 13.8" (350 x 350 mm)
All feed motors are liquid-cooled
Direct measuring system Heidenhain rotary encoders
AUTOMATION
WEIGHT
Machine base Polymer concrete (man made granite) for vibration dampening
and thermal stability like a CMM machine
STEPTEC SWISS MADE SPINDLE
EQUIPPED WITH:
Chip conveyor
Spray gun
Direct measuring system Heidenhain glass scales X/Y/Z, Encoders B,C
External spindle chiller

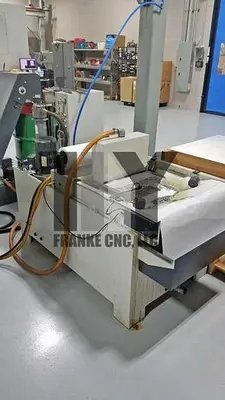

Coolant tank w/paper filter and 70 bar (1,015 PSI) coolant thru spindle
Miscellaneous System 3R Dynafix pallets
Specs
Status: Available
Number of axis: 5-Axis
Tool changer: 120 ATC tool tower
Control: HH iTNC 530
Spindle: 20,000 rpm
Spindle taper: HSK A63
X axis: 23.6" (600 mm)
Y axis: 17.7" (450 mm)
B axis: -115/+30 degrees
Z axis: 17.7" (450 mm)
C axis: 360 x 0.001 degrees
Longitudinal x-axis: 23.6" (600 mm)
Cross y-axis: 17.7" (450 mm)
Vertical z-axis: 17.7" (450 mm)
B-axis (swivel): -115/+30 degrees
C-axis (rotary): n x 360 degrees
Feed rate x/y/z: 590 IPM (15 m/min)
Rapid speed x/y/z: 866 IPM (22 m/min)
Rapid speed b-axis (swivel): 25 RPM
Rapid speed c-axis (rotary): 33 RPM
Pallets clamping surface: 11.02" x 11.02" (280 mm x 280 mm)
Maximum workpiece weight (manual loading): 441 lbs (200 kg)
Pallet type this machine is equipped for: System 3R Dynafix
Number of pallet stations this machine is equipped with: 7
Automatic tool changer: 120 position Tool Tower
Blum laser tool measuring system: Standard, included
Infrared parts measuring touch probe: M&H, included
Automatic pallet changer number of pallet stations: 7
Including pallet changer: Approximately 16,976 lbs (7,700 kg)
Spindle rpm: 20,000 RPM
Spindle power 40% ed: 40.2 HP (30 kW)
Spindle torque 40% ed: 67.1 Ft/Lb (91 Nm)
