USED 2008 MIKRON MILL MIKRON UCP 600 VARIO
Overview
5-AXIS MACHINING CENTERS
MIKRON UCP 600 Vario
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:
One used 2008 MIKRON UCP 600 Vario 5-Axis Simultaneous Machining Center:
Machine made in Nidau, Switzerland
CONTROL

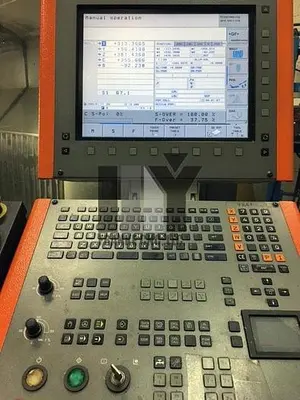

Heidenhain iTNC 530 with Ethernet and electronic handwheel for part setup
WORKING RANGE
FEED DRIVE
WORKING TABLE
All feed motors are liquid-cooled
Direct measuring system Heidenhain rotary encoders
TOOL CHANGER
WEIGHT
Approximately 16,976 lbs (7,700 kg)
STEPTEC SWISS MADE SPINDLE
EQUIPPED WITH:
Flood coolant
Direct measuring system Heidenhain glass scales X/Y/Z, Encoders B,C
Electric oil mist extractor
Specs
Status: Available
Number of axis: 5-Axis Simultaneous
Tool changer: 30 ATC
Control: HH iTNC 530
Spindle: 20,000 rpm
Spindle taper: HSK-A63
X axis: 23.6" (600 mm)
Y axis: 17.7" (450 mm)
Z axis: 17.7" (450 mm)
Longitudinal x-axis: 23.6" (600 mm)
Cross y-axis: 17.7" (450 mm)
Vertical z-axis: 17.7" (450 mm)
B-axis (swivel): -115/+30 degrees
C-axis (rotary): n x 360 degrees
Feed rate x/y/z: 590 IPM (15 m/min)
Rapid speed x/y/z: 866 IPM (22 m/min)
Rapid speed b-axis (swivel): 25 RPM
Rapid speed c-axis (rotary): 33 RPM
Clamping surface: 17.7" (450 mm) Diameter
Maximum workpiece weight: 441 lbs (200 kg)
Automatic tool changer: 30 positions
Machine base: Polymer concrete (man made granite)
Spindle rpm: 20,000 RPM
Spindle power 40% ed: 40.2 HP (30 kW)
Spindle torque 40% ed: 67.1 Ft/Lb (91 Nm)
