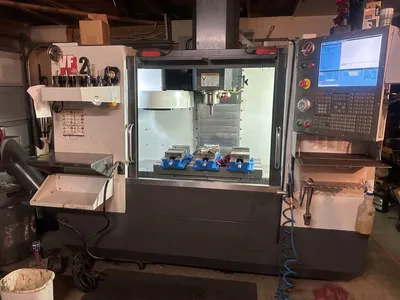

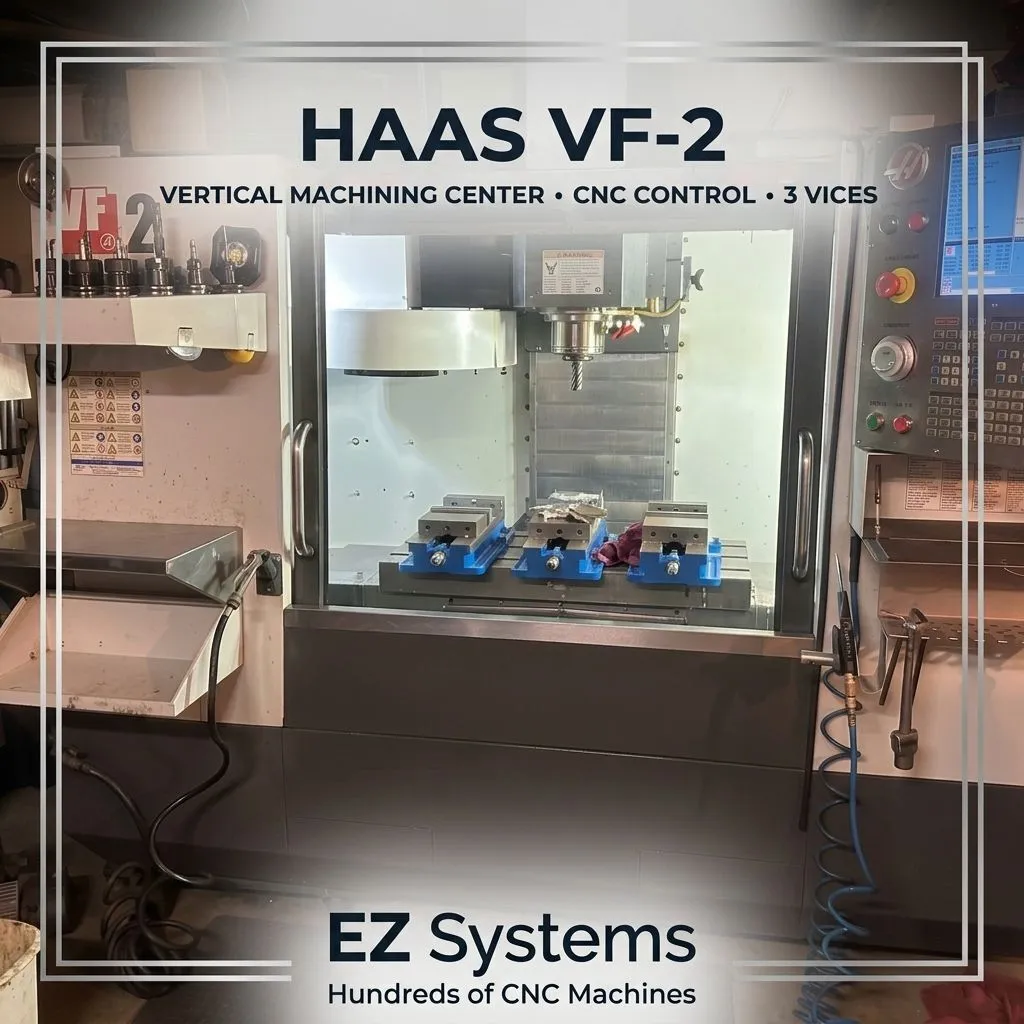

USED 2015 HAAS VF-2

2015 Haas VF-2 CNC Vertical Machining Center, 30"x16"x20" Travels, 8100 RPM, 20-Pocket ATC, Low Hours, Phase Converter FOB Lake Elsinore, California

Terms & Payment

Please wait for your shipping quote and invoice before sending payment. Buyer is responsible for all rigging and shipping costs. We have riggers and shipping companies we can recommend. Payment is due within 2-3 days of order date via wire transfer, cashier's check or company check (in some cases) or ask about our financing or leasing options. We have been on eBay since 2004 with over 100% 2,300 ratings.

Title: 2015 Haas VF-2 CNC Vertical Machining Center Low Hours Phase Converter Tooling

Brand: Haas

Model: VF-2

Year: 2015

Specifications

• Power-On Time: 9,917 Hours, 53 Minutes, 36 Seconds


• Cycle Start Time: 5,230 Hours, 14 Minutes, 09 Seconds


• Feed Cutting Time: 4,385 Hours, 19 Minutes, 56 Seconds


• M30 Parts Counters: 24,593 cycles


• Phase Converter: Southern Phase Converters rotary phase converter package converting 1-phase supply to 3-phase power


• Coolant System: Programmable Coolant Nozzle (P-COOL) enabled on the Haas control


• Carousel/Umbrella style 20-station ATC


• 3x precision 6" machine vises mounted on the table


• Side tool tray with CAT40 toolholders/collet chucks and a CAT40 spindle tightening fixture


• CNC Control: Classic Haas Control with 15" LCD display panel


• X Axis: 30.0" (762 mm)


• Y Axis: 16.0" (406 mm)


• Z Axis: 20.0" (508 mm)


• Spindle Nose to Table: 4.0" – 24.0" (102 – 610 mm)


• Table Dimensions: 36.0" L x 14.0" W


• Max Weight on Table: 3,000 lbs (evenly distributed)


• T-Slots: 3 slots (5/8" / 16 mm width)


• Spindle Speed: 8,100 RPM (Inline Direct-Drive)


• Spindle Motor: 20 HP (Vector Drive)


• Taper: CAT 40


• Rapid Traverse Rates (X/Y/Z): 1,000 IPM (25.4 m/min)


• Max Cutting Feed Rate: 650 IPM


• Tool Changer Capacity: 20-Pocket Umbrella / Carousel Style


• Max Tool Diameter: 3.5"


• Max Tool Weight: 12 lbs


• Operating Status: Machine is under power


• Loading: Loading is not included



  For a 2015 machine, these hours fall into the low to moderate (low-medium) range:

  • Feed Cutting Time (4,385 hours): Low. Actual chip-making time is the most critical metric for wear on linear guide trucks, ballscrews, and spindle bearings. A heavy single-shift production shop runs ~1,500 to 2,000 cutting hours per year; this machine averaged under 400 cutting hours per year over its ~11-year lifespan.

  • Cycle Start Time (5,230 hours): Low. Indicates light overall program execution time.

  • Power-On Time (9,917 hours): Low to Medium. Most production machines of this vintage easily show 25,000 to 40,000+ power-on hours. Under 10,000 hours means the machine spent long stretches powered down (typical for prototyping, low-volume job shops, or light garage/toolroom use).

  Hour Benchmarks for Haas VMCs

  • Low: Under 5,000 cutting hours (light prototyping / garage use)

  • Medium / Moderate: 5,000 to 12,000 cutting hours (steady single-shift job shop)

  • High: 15,000+ cutting hours (multi-shift high-volume production)

  At 4,385 cutting hours, the mechanical components still have substantial life left before needing spindle rebuilds or axis thrust bearings.

Description

Low-hour 2015 Haas VF-2 vertical machining center fully equipped and ready for production. This machine features only 4,385 feed cutting hours and is currently wired and under power. Complete with a Southern Phase Converters rotary phase converter package, it is ideal for commercial facilities or garage shop operations running on single-phase power.

Key Features & Benefits
Equipped with an 8,100 RPM inline direct-drive spindle, 20 HP vector drive, 20-station carousel ATC, and P-COOL programmable coolant nozzle. Package includes three 6-inch precision machine vises, a side tool tray with CAT40 toolholders, and a spindle tightening fixture.

Dimensions & Weight

• Physical Footprint: Approx. 78" W x 99" D x 94" H)


• Weight: Approximately 7,800 – 8,000 lbs

Shipping & Location Details

Location: Lake Elsinore, California
This machine is offered FOB Lake Elsinore, California. Buyer is responsible for all applicable freight and rigging expenses.

Fair Sell Price Analysis

Market Context: Priced competitively within the typical $32,000 to $38,000 market range for 2015 VF-2 models. The inclusion of the rotary phase converter, vises, and tooling package delivers outstanding value for small shops, prototyping facilities, or startup operations.
