USED 2018 KLINGELNBERG OERLIKON C30
Overview

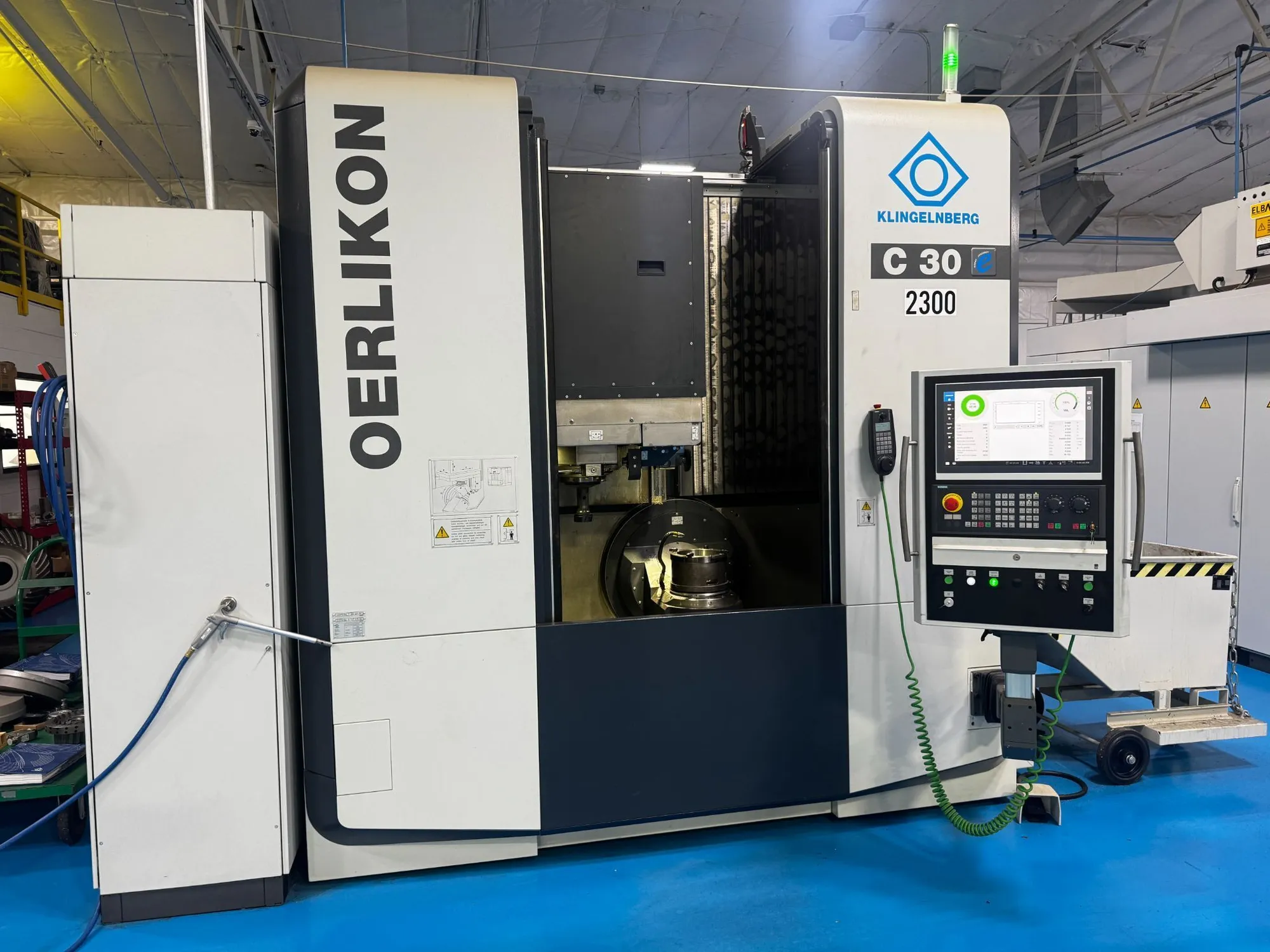

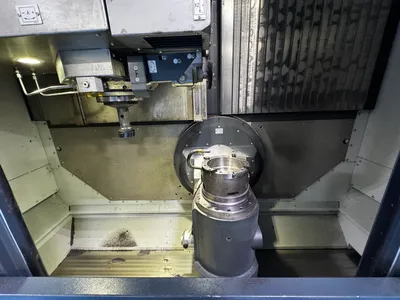

2018 KLINGELNBERG-OERLIKON C30 CNC spiral bevel gear cutting machine available. Siemens 840D control, direct drive spindles, automatic features. Max gear diameter 280mm, face width 58mm. Includes extensive accessories, perfect for precision work.
Specs
Specifications:
Maximum Workpiece Diameter: 280 mm
Normal Module: 1,5 - 6,5
Maximum Face Width: 58 mm (approx)
Minimum/Maximum Spiral Angle: 0/60 Degrees
Minimum/Maximum Ratio: 1:1/1:10
Maximum Cutter Head Spindle Speed: 1500 RPM
Workpiece Spindle Through Bore: 93 mm
Workpiece Spindle Speed: 1500 RPM

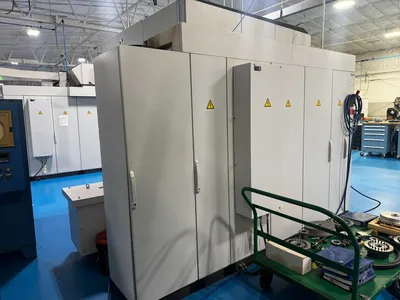

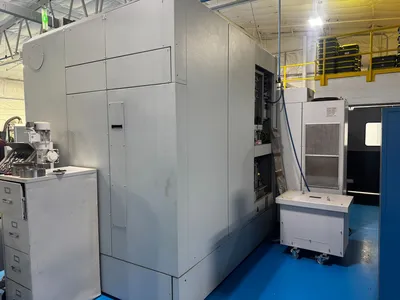

Floor Space (LxWxH): 3850 x 2415 x 2900 mm (indluding hydraulic and
electrical enclosure W/out platform, service doors closed)
Net Weight: 20,000 kg
Equipped With

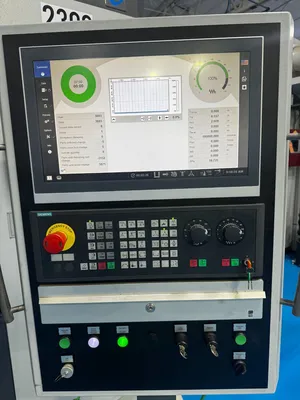

Siemens 840D Control

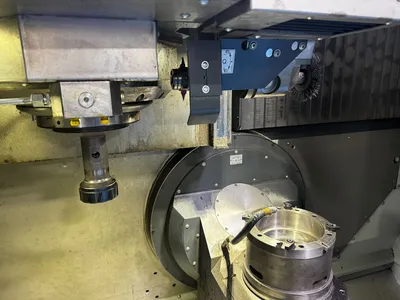

Direct Drive Work Spindle

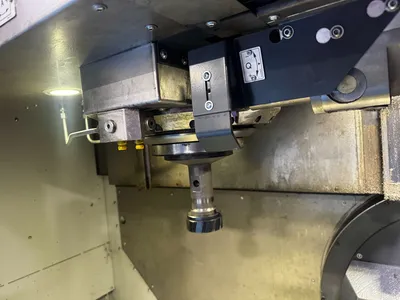

Direct Drive Cutter Spindle
Auto Door

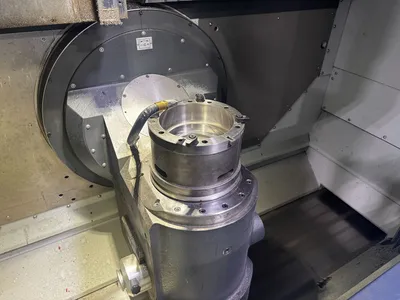

Hydraulic Clamping W/Stroke Monitoring

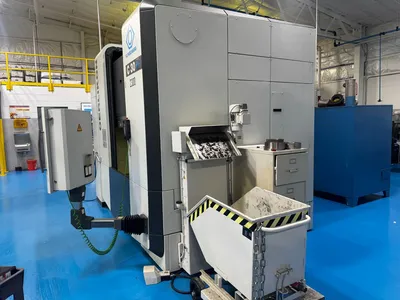

Magnetic Chip Conveyor
Tooth Thickness Correction
Storage and Loading of Master Data
Indicator Light
One-Pedal Foot Switch for Clamping The Workpiece
Chip Container
Automatic Gap Finding Device
Automatic Cutter Head Clamping System
Axial Location Monitoring, Air Gap Control

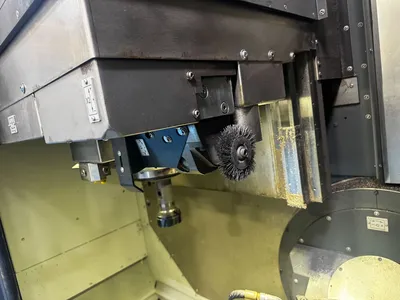

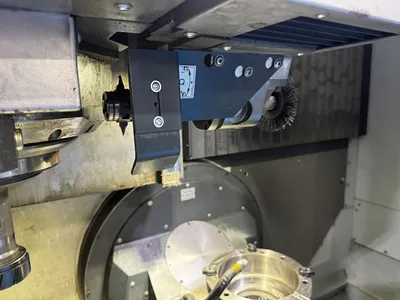

Deburring Device for Deburring of Gears and Pinions
Deburring Cutter Head
Deburring Blade
Swivel Device for Cutter Head Loading (Including Dolly)
Machine Software and Hardware for Power Skiving
Calculation Software Power Skiving for Process & Tool Design & Correction
Option Blade Software
Gratex Deburr Software
Pulsar Deburr Software

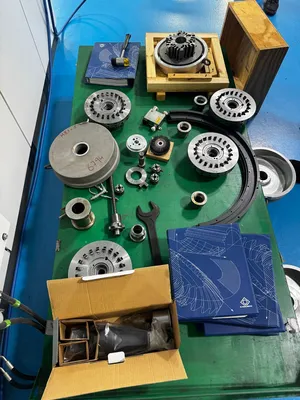

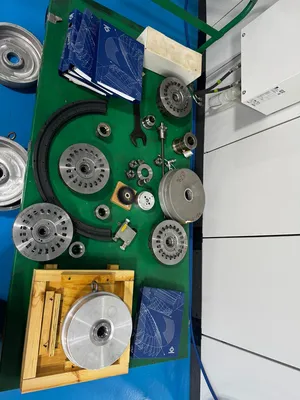

(2) Arcon 10-6" L II Cutter Heads
(2) Arcon 10-6" R II Cutter Heads
Approximately (120) 0.4" x 0.5" 3F Carbide Stick Blades
Approximately (80) Spacer Plates for Arcon 5" / 6" / 7.5"

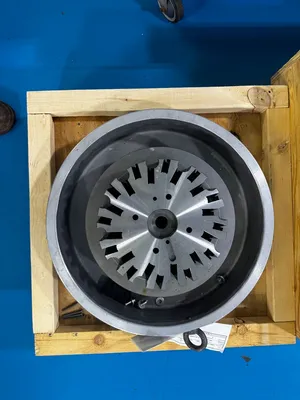

Universal Aircraft Cutter Arcon 3-3.75" 4.375" / 5" / 6" R II
Universal Aircraft Cutter Arcon 6-7.5" / 9" R II
