USED PEDDINGHAUS 623-K
Overview
The Peddinghaus 623-K Angle Line is a hydraulic CNC angle master machine built to automatically punch, shear, and process structural steel angles and flat bars in a single pass. Key FeaturesRoller Feed Measurement: Uses a rugged roller feed design to secure and dimension long raw stock accurately.CNC Control: Frequently paired with Peddimat CNC control systems or integrated infeed/outfeed conveyors for automated fabrication.Multi-Function Processing: Eliminates manual layout by handling punching and shearing sequentially in an automated workflow.
Specs
Technical SpecificationsMax Angle Capacity: 6″ x 6″ x 1/2″ (some variations rated up to 5/8″)Min Angle Capacity: 1-1/2″ x 1-1/2″ x 1/8″Punch Tonnage Capacity: 66 to 80 Tons (depending on the specific sub-model/year setup)Shear Tonnage Capacity: 200 to 250 TonsX-Axis Feed Rate: 150 Feet Per Minute (FPM)Punch Stroke: 1.75 inchesMax Hole Diameter: 1.25 inchesFlat Bar Capacity: Up to 6″ x 1/2″ (or 6" x 5/8" max flat maximum)
Equipped With

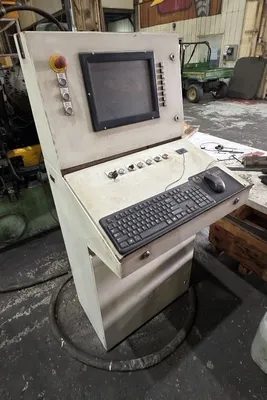

CNC Control
