NEW 2021 CHROMA 17020
Overview
This listing is for a NEW Chroma 17020 Regenerative Battery Pack Test System. Developed for battery module and battery pack charge, discharge, cycling, validation, and qualification testing, this configuration incorporates regenerative energy recovery, independent test channels, integrated battery resistance measurement equipment, automated switching hardware, and industrial computer control within a rack-mounted platform. The installed hardware is suited for battery development, production testing, reliability evaluation, and energy storage applications.
Specs

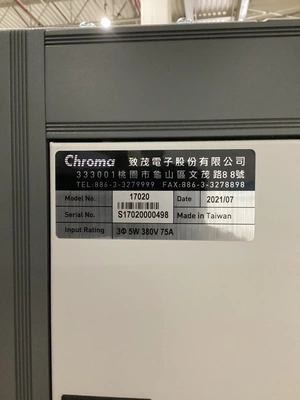

System Information
------------------
Manufacturer: Chroma
Model: 17020
Product Type: Regenerative Battery Pack Test System
Condition: NEW
Serial Number: S17020000498
YOM: 2021
Country of Origin: Taiwan
Power Requirements
------------------
Input Configuration: 3 Phase, 5 Wire
Input Voltage: 380 VAC
Input Current: 75 A
Input Frequency: 47-63 Hz

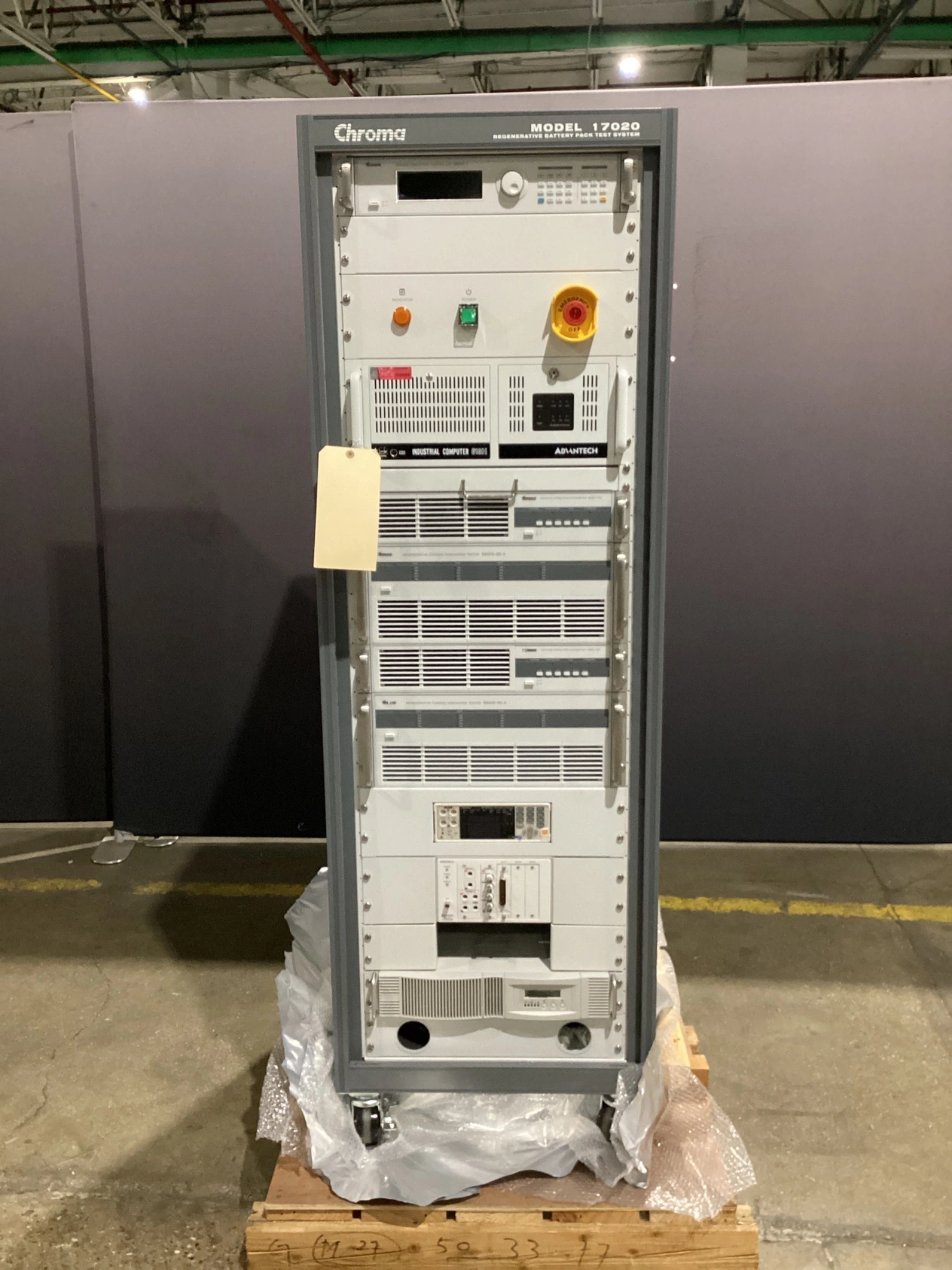

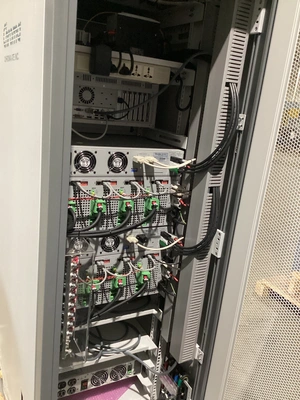

Installed Hardware Configuration
-------------------------------
Charge/Discharge Controller: Chroma 69200-1
Controller Qty: 1
Industrial Computer: Advantech 610H
Computer Qty: 1
Regenerative Tester Modules: Chroma 69225-60-4
Tester Module Qty: 2
Channels per Module: 4
Installed Channel Count: 8
DC/AC Converters: Chroma A691101
Converter Qty: 2
Battery HiTester: Hioki BT3562
Battery HiTester Qty: 1
Switch Mainframe: Hioki SW1001
Switch Mainframe Qty: 1
Multiplexer Module: Hioki SW9001
Multiplexer Module Qty: 1
Test Functions
--------------
Operating Modes: CC, CV, CP, CC-CV
Drive Cycle Simulation: Supported
DCIR Testing: Supported
Capacity Testing: Supported
Performance Testing: Supported
Cycle Life Testing: Supported
Communications
--------------
Communications: Ethernet
BMS Recording: Supported
Supported Protocols: CAN Bus, SMBus
Thermal Chamber Integration: Supported
Performance
-----------
Sampling Rate: 50 kHz
Profile Memory: 720,000 Points Per Channel
Charge/Discharge Transition: 50 ms
Energy Recovery: Regenerative
Efficiency: 85-90% Typical
Power Factor: >0.9
Current THD: <5%
Protection Functions: OVP, UVP, OCP, OPP, OTP

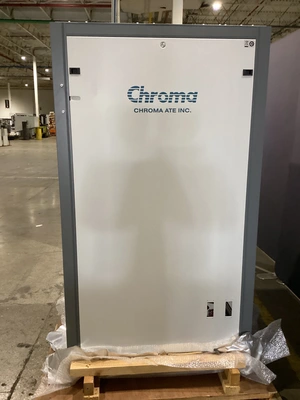

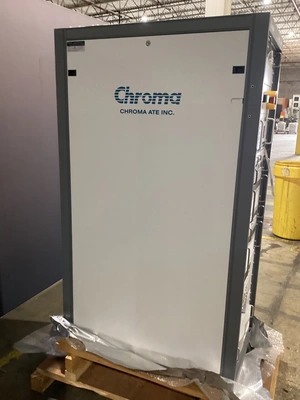

Physical Configuration
----------------------
Cabinet Type: Rack Mounted
Mobility: Casters Installed
Emergency Stop: Installed
