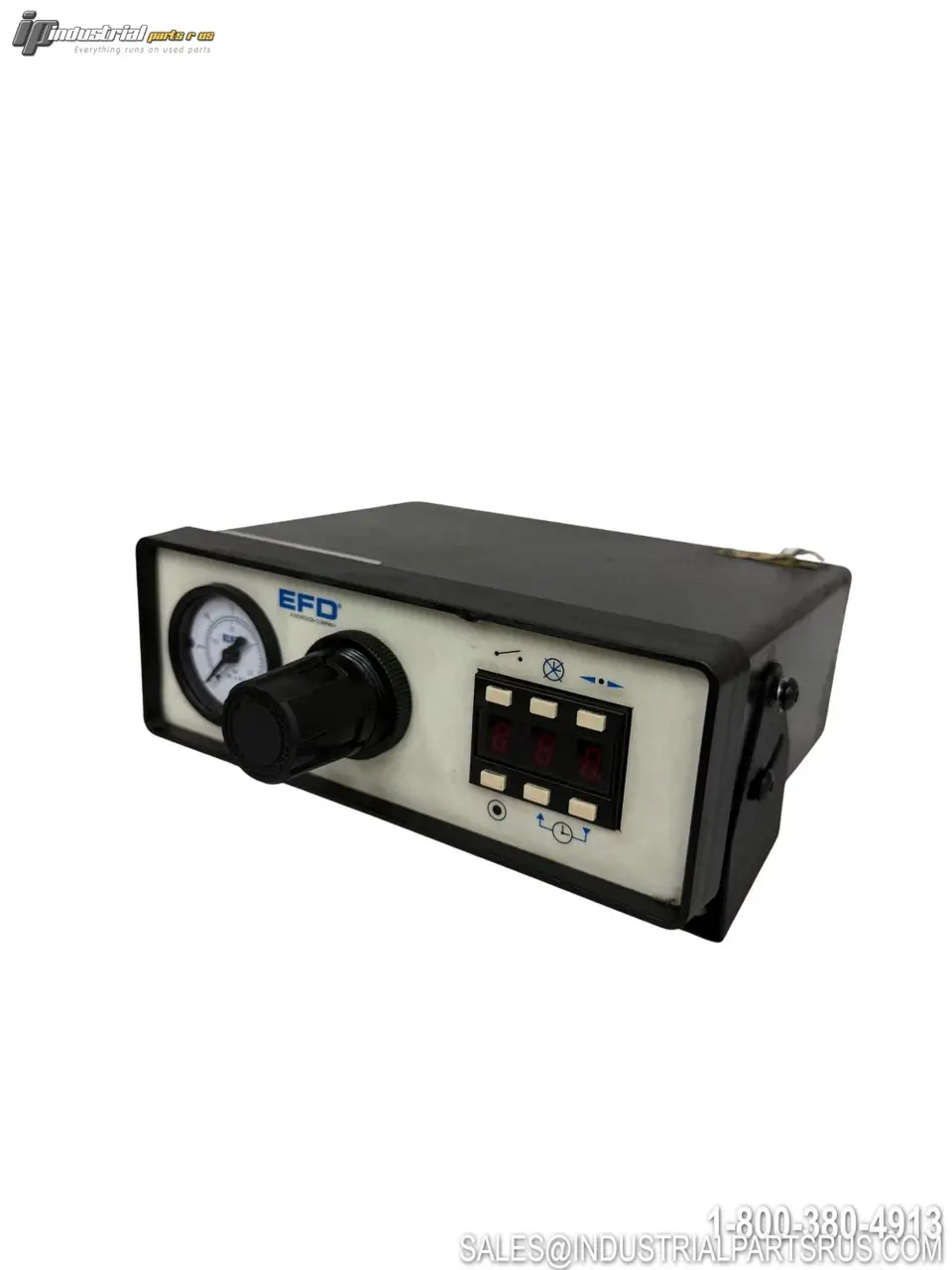

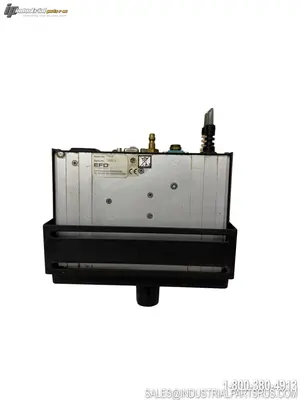

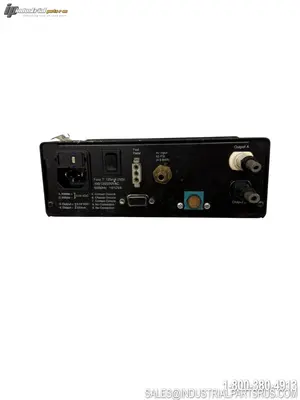

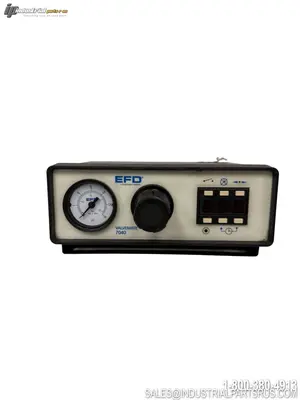

USED EFD 7040

The EFD ValveMate 7040 is a microprocessor-based spray valve controller designed specifically for use with EFD 781S Series spray valves. It features an adjustable nozzle airflow regulator and a timed air-pressure output for precise control of valve ON time. The 7040 can be initiated via a 5 to 24 VDC signal and is built to operate for many millions of cycles without maintenance, making it highly reliable in automated dispensing and spray applications. EFD is a Nordson Company headquartered in East Providence, RI.
Specification
Value
Brand
EFD (A Nordson Company)
Model / Part Number
7040
Product Name
ValveMate 7040 Spray Valve Controller
Compatible Valve Series
781S Series Spray Valves
Input (Supply) Voltage
100/120/220 VAC, 50/60 Hz
Initiate Signal Voltage
5 to 24 VDC
Initiate Signal Type
Voltage (momentary min. 0.02 sec or maintained) or Contact Closure
Nozzle Air Output Pressure Range
0 to 30 PSI (0 to 2.07 bar)
Air Regulator
Adjustable nozzle airflow regulator (included)
Control Type
Microprocessor-based timed air-pressure output
Air Input Connection
Quick-connect air input fitting (2081A)
Tubing
1/4" OD x 0.160" ID
Mounting
Universal mounting bracket included; optional panel mount kit #7000PMK; pivots 30° from horizontal
Dimensions (W x H x D)
10 in x 8 in x 12 in
Weight
3 lbs (approx.)
Compliance
CE Standards
Manufacturer
EFD Inc. (A Nordson Company), East Providence, RI USA
We warranty all items for 30 days from date of purchase.
