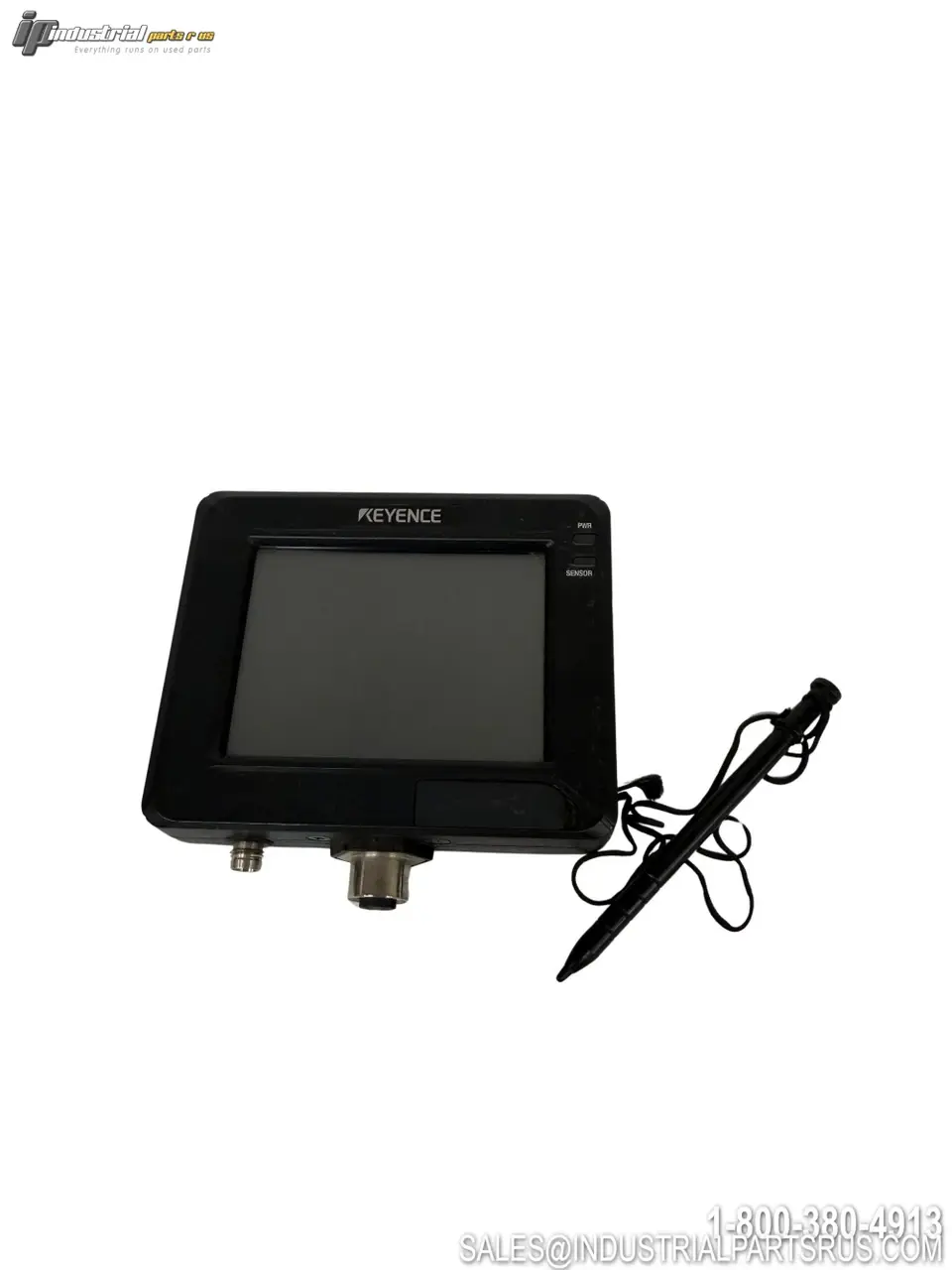

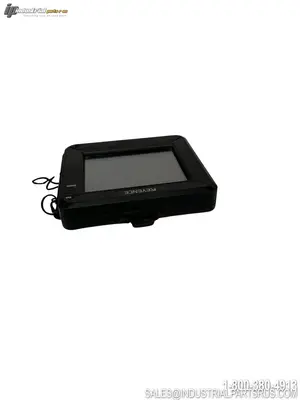

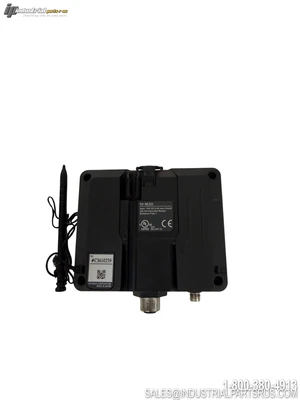

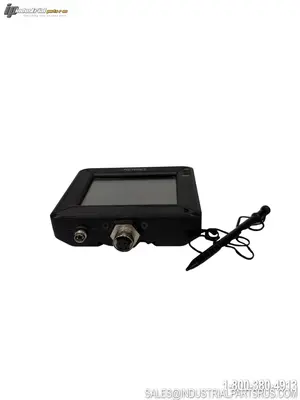

USED KEYENCE IV-M30

The Keyence IV-M30 is an Intelligent Monitor designed for use with the Keyence IV Series Vision Sensor system. It features a 3.5-inch TFT color touchscreen display (320 x 240 QVGA resolution) and serves as the primary setup, configuration, and monitoring interface for IV Series sensors, enabling standalone sensor operation once programming is complete. The IV-M30 connects to IV Series sensor amplifiers via an M12 4-pin monitor cable or Ethernet (M12 4-pin to RJ-45) and supports USB memory for data storage and transfer.
Specification
Value
Brand
Keyence
Model / Part Number
IV-M30
Product Type
Intelligent Monitor (Vision Sensor Accessory)
Series
IV Series
Input Voltage
24V DC
Input Current (Max)
0.2 A
Display
3.5" TFT Color LCD
Display Resolution
320 x 240 Dot (QVGA)
Display Type
Touchscreen
Illumination
White LED
LED Backlight Life
Approx. 50,000 hours (at 25°C)
Weight
Approx. 180 g
Enclosure Type
Type 1 (Class 2)
Power Connector
M8 4-Pin
Sensor Communication Connector
M12 4-Pin (Monitor Cable)
Ethernet Connector
M12 4-Pin to RJ-45
External Storage
USB Memory
Mounting Options
Wall, Panel, DIN Rail
Compatible Sensor Series
Keyence IV Series
Certifications
UL, CE
Manufacturer
Keyence Corporation
Status
Discontinued (Replaced by IV2-CP50)
We warranty all items for 30 days from date of purchase.
