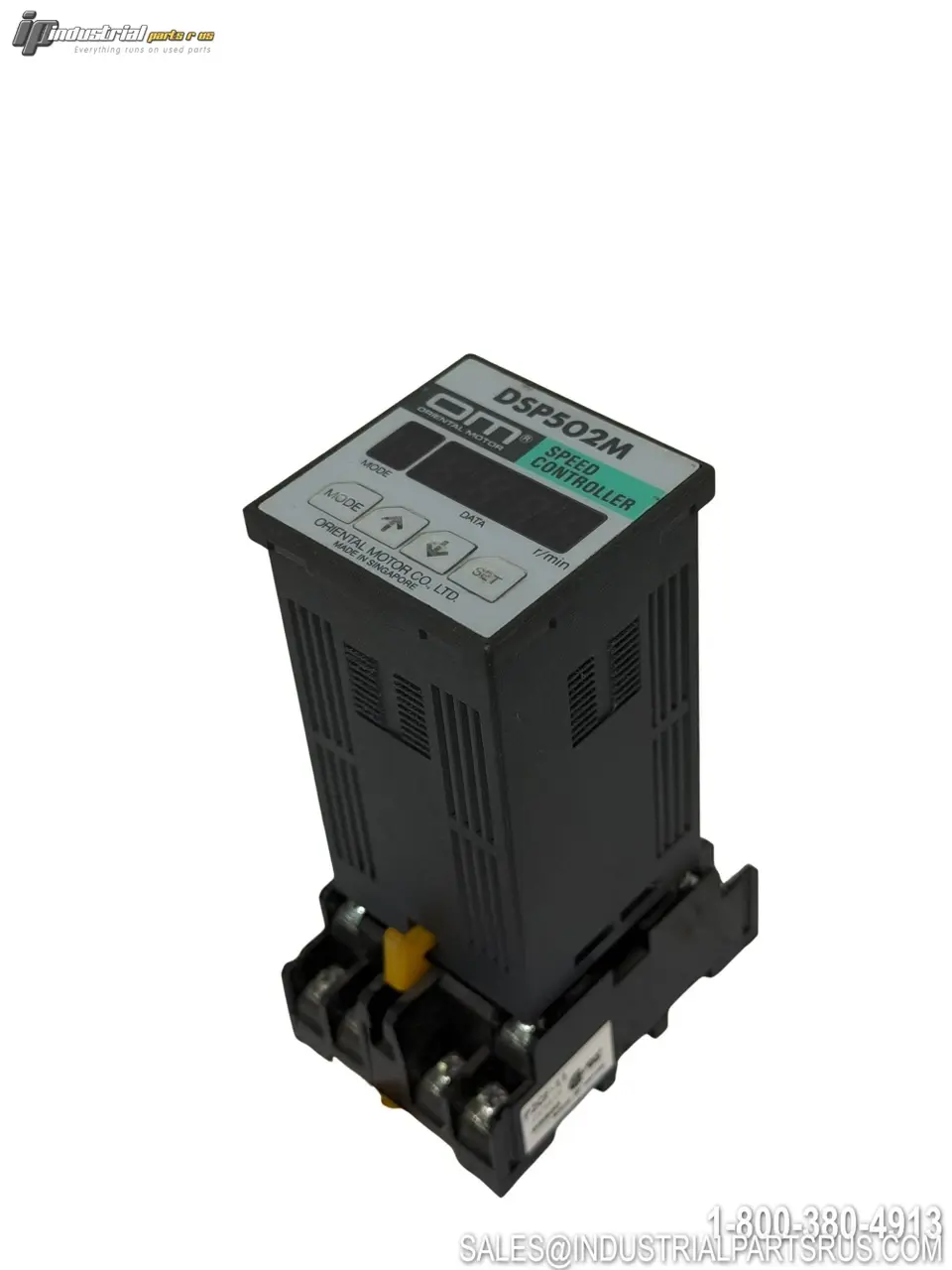

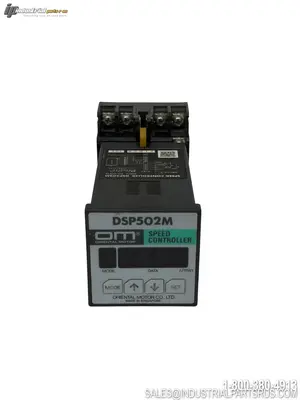

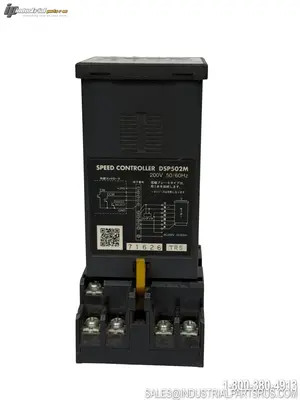

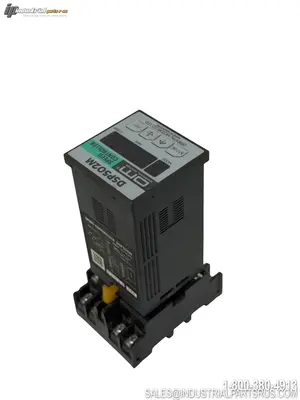

USED ORIENTAL MOTOR DSP502M

The Oriental Motor DSP502M is a discontinued AC motor speed controller designed for use with Oriental Motor's single-phase induction motors in the 6W to 40W power range. Operating at 200VAC, 50/60Hz, the unit mounts via an 11-pin relay socket base (Omron P2CF-11 compatible) and provides phase-control-based variable speed regulation. It features a 7-segment LED rotation speed display and integrated electromagnetic brake interlock and free functions suitable for a wide range of light-duty industrial automation applications.
Specification
Value
Brand
Oriental Motor
Model / Part Number
DSP502M
Product Type
AC Motor Speed Controller
Input Voltage
200 VAC
Frequency
50/60 Hz
Compatible Motor Power Range
6W – 40W
Phase
Single Phase
Mounting / Socket Type
11-Pin Relay Socket (Omron P2CF-11 compatible)
Speed Display
7-Segment LED
Control Functions
Speed control, non-contact instantaneous stop, forward/reverse, speed switching, slow start/slow down
Brake Functions
Electromagnetic brake interlock, electromagnetic brake free
Alarm / Error Output
Yes (error detection)
Dimensions (L × W × H)
55 mm × 75 mm × 120 mm
Net Weight
270 g
Manufacturer Status
Discontinued
We warranty all items for 30 days from date of purchase.
