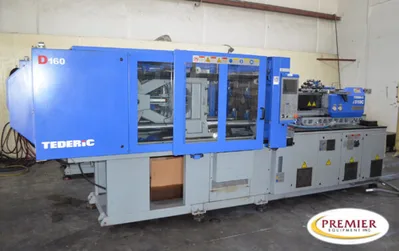

Tederic D160/510B Plastic Injection Molding Machine – 2020

The Tederic D160/510B is a hydraulic toggle-system plastic injection molding machine manufactured by Tederic.

Key Specifications
•  Clamping Force: 160 metric tons
•  Screw Diameters:    Typically offered in 3 options (42 mm, 45 mm, and 50 mm)
•  Shot Weight (PS):    Ranges approximately from 261g to 370g depending on the screw size
•  Tie Bar Spacing:    18.5” x 18.5”    (470 × 470 mm)   (width × height)
•  Mold Opening Stroke:    18.9”   (480 mm)
•  Mold Height Range:    7.87” to 20.87”  (200 mm to 530 mm)
•  Machine Dimensions: Approx. 60” x 58” x 81” (L × W × H)
•  Machine Weight: approx.. 10,600 lbs
