NEW 2023 HMD KONTRO GSA 4X3X10H EA9

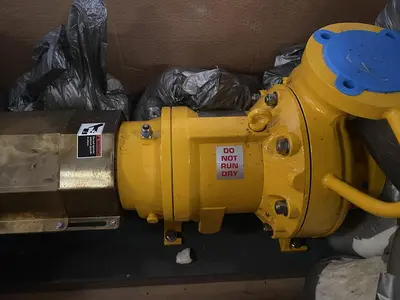

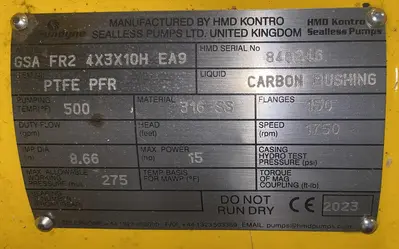

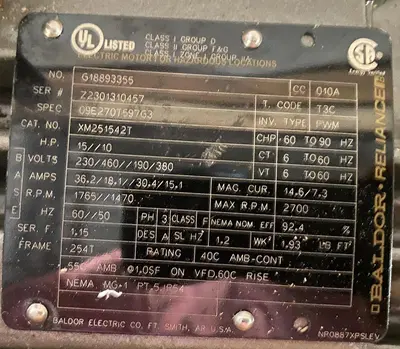

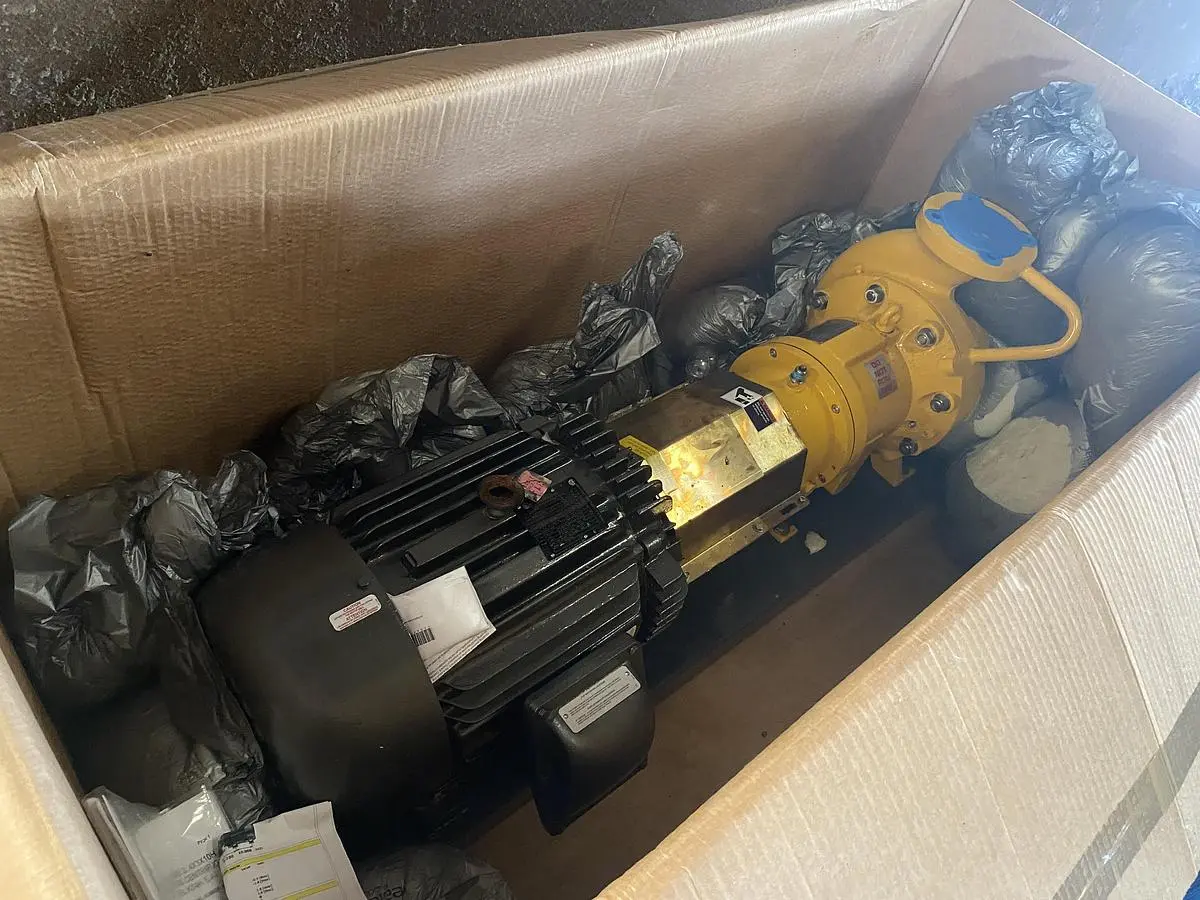

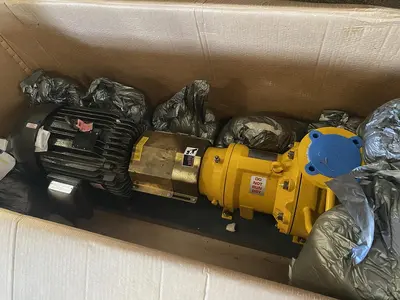

UNUSED HMD KONTRO GSA FRAME 2 K14HNA 4X3X10H SEALLESS MAGNET DRIVEN CENTRIFUGAL PUMP CONSTRUCTED OF 316SS WITH AN EA9 MAGNET COUPLING AND RATED FOR -40°F TO 500°F. RATED 275 GPM @ 70 FT HEAD. DESIGN PRESSURE IS 274 PSI AT AMBIENT TEMPERATURE. PUMP HAS ANSI 150# RF FLANGE CONNECTIONS WITH A 1/2" NPT CASING DRAIN. 316SS CASING, WEAR RING, IMPELLER, AND INNER MAGNET RING; TITANIUM BUSHING HOLDER; ALLOY C-276/316SS CONTAINMENT SHELL; 329SS PUMP SHAFT; SiC BUSHINGS, SLEEVES, AND THRUST PADS; PTFE CASING GASKET; PTFE SUPPORT GASKET; AND PFR ORINGS. IMPELLER IS TRIMMED TO 8.66". PUMP HAS AN OIL LUBRICATED BEARING FRAME ASSEMBLY FOR LONG COUPLED DESIGN. PUMP IS DRIVEN BY A BALDOR/ABB 15 HP, 1750 RPM, 254T FRAME, 230/460 VOLT, CLASS 1 DIV 1 GROUP D, CLASS II GROUP F&G EXPLOSION PROOF MOTOR. PUMP AND MOTOR ARE MOUNTED ON A POWDER COATED CARBON STEEL BASE PLATE. INCLUDES BRASS COUPLING GUARD AND COUPLING. FOB: Leland, NC
