USED 2010 SMITHCO 1 F 30-111-2

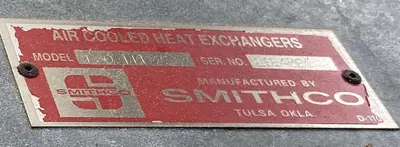

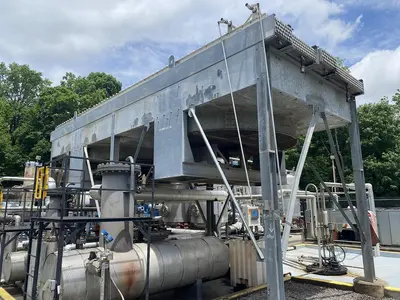

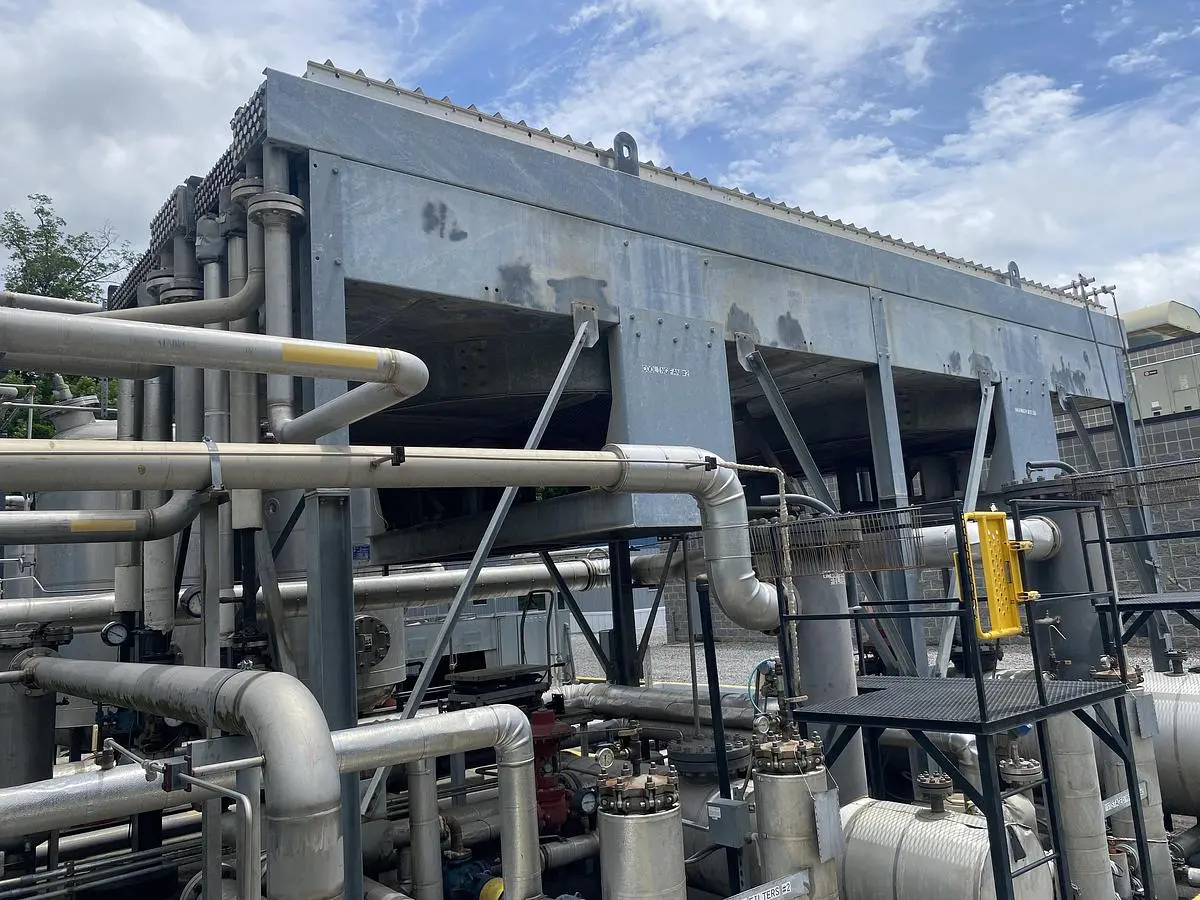

Used Smithco Model 1 F 30-111-2 (4) bundle fin-fan cooler. S/N 108432-B. Overall dimensions are 31.5' long X 11.1' wide X 12.67' tall. Unit consists of (2) lube oil coolers, Natural gas cooler #1 and Natural gas cooler #2. Lube cooler 1 has 3" 300# inlet and outlet and (98) 1" 304 stainless steel tubes configured in 4 rows 2-pass 30' long. Fin type L-tension aluminum. Rated 330 PSIG @ -20 to 350 F. Bare Sq ft. 770.3, Extended Sq Ft. 16,310. Natural gas cooler CLR-1 has 6" 300# inlet and outlet and (34) 1.25" 304 tubes configured in 4 rows 2-pass 30' long. Fin type L-tension aluminum. Rated 300 PSIG @ -20 to 350F. Bare Sq ft. 334, Extended Sq Ft. 6,542. Lube cooler 2 has 2" 300# inlet and outlet and (54) 1" 304 stainless steel tubes configured in 4 rows 2-pass 30' long. Fin type L-tension aluminum. Rated 450 PSIG @ -20 to 350 F. Bare Sq. ft. 424.4 Extended Sq ft 8,986. Natural gas cooler CLR-2 has 4" 300# inlet and outlet and (26) 1.25" 304 stainless steel tubes configured in 4 rows 2 pass 30' long. Fin type L-tension aluminum. Rated -20 to 350 F. Bare Sq ft. 255.4, Extended Sq. ft. 5,003. Unit has (2) 20HP COFIMCO model 49 5000 fans 10' diameter consisting of (5) aluminum blades with adjustable pitch and 10 degree angle. Motors are 3/60/460 volt. Fans driven by belt driven speed reducer. Rated 122,800 ACFM. Galvanized structure. Built 2010, Weight 22,800#. FOB: Wilmington, NC
