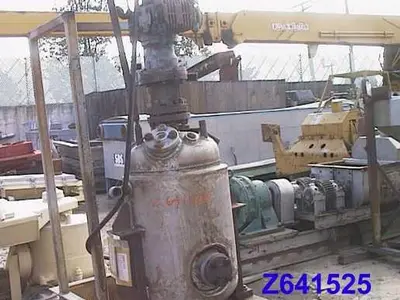

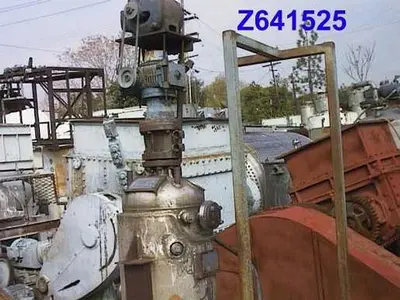

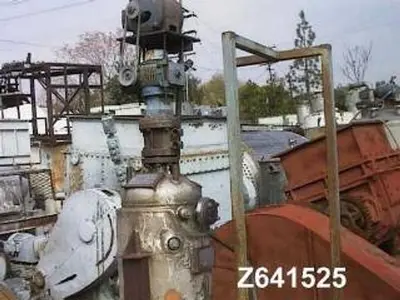

Reactor, 15 Gallon, 304 S/st, 300 PSI, Jkt, Agit, #Z641525

Reactor, 15 gallon, reaction vessel, 14" diameter x 22" straight side, type 304 stainless steel product contact parts. This reactor is code constructed with an internal pressure rating of 300 PSI at 300 degrees Fahrenheit. Jacketed for 30 PSI at 100 degrees Fahrenheit, agitated with a 3/4 HP 220-440 volt drive motor, V-belt connected to a Pfaudler 2.5 TW drive complete with double mechanical seals. The agitator is a trailing turbine disc. There are numerous inlets on the top head as well as a center bottom outlet. Serial Number B-154.

Stock Number: Z641525
Manufacturer: Butane Tank Corp
Year: 1974
Serial Number: B-154
Gallons: 15
Materials of Construction: 304 Stainless Steel
Internal Pressure: 300 PSI @ 300 deg. F
Jacket Pressure: 30 PSI @ 100 deg. F
Agitator: Pfaudler 2.5 TW drive
HP: 0.75
Basis: FOB
