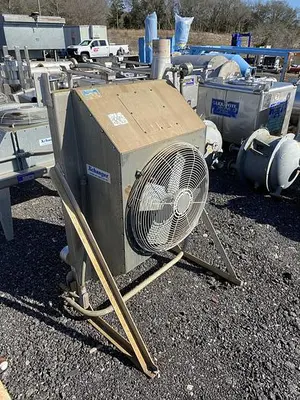

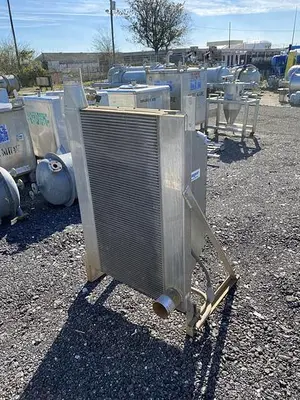

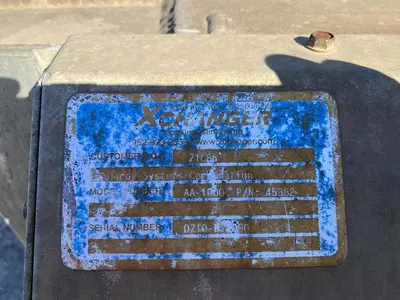

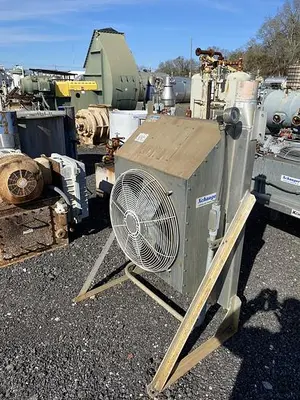

USED 2010 XCHANGER AA-1000

Used Xchanger Model AA-1000 air exchanger. 363/4" long X 40" Wide X 647/16" tall. Ratings: Process Air 525 cu.ft./min, 2,363 #, hr, Temp. In 244 F, Temp out 108 F, Inlet pressure 24.473 #/sq in, Velocity 1,430 ft/min, Pressure loss ..09 #/sq in. Ambient Air 3,703 cu. ft./min, 16,666 #/hr, Temp. in 100 F, Temp. out 119 F, Inlet pressure 14.473 #/sq in, Velocity 875 ft/min, Pressure loss 0.4 in. water. Total Heat Exchanged 77,394 BTU/hr. Plate-Fin core Aluminum, Exhasut Hood Galvanized Steel, Fan Guard Coated Carbon Steel, Venturi Frame Coated Carbon Steel. Equipped with 24" fan powered by 1HP 3/60/208-230/460 Volt motor rated 1725 RPM. 4" process inlet and outlet. Flow direction Process Air left hand vertical, Ambient Air horizontal pull-through. Weight 250# (8 Available). FOB Wilmington, NC
