USED CROLL REYNOLDS S10

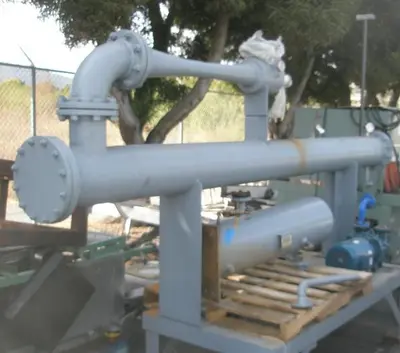

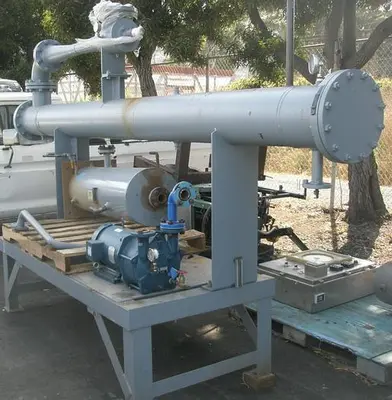

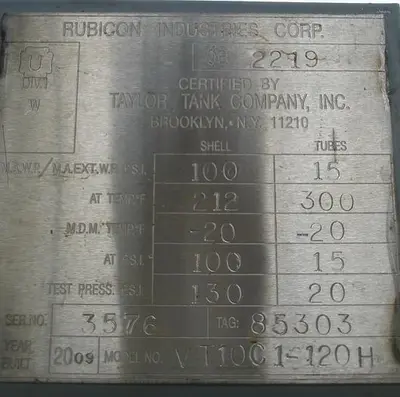

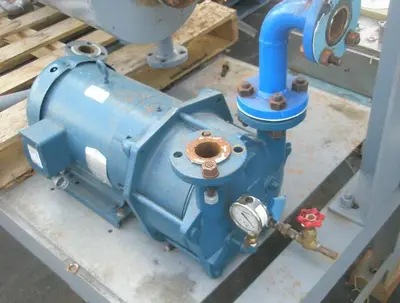

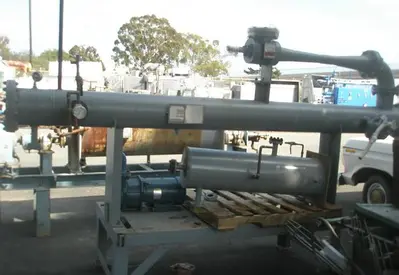

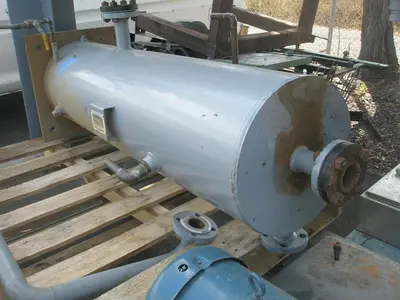

Liquid ring vacuum pump, with Croll Reynolds ejector pump, rated for 20 GPM, Model# S10, includes liquid ring vacuum pump, driven by 7-1/2 HP, 208-230/460V, 1725 RPM, 3/60 hz motor, 1-1/2" in and out. Also includes shell and tube heat exchanger, Model number S10, rated for 20 GPM at 80 deg. F., 105 sq surface area, rated for 15 PSI/FV at 300 degree tube side, shell side rated for 100 PSI at 212 deg. F., serial number 85303-XY. Also includes croll reynolds 14" diameter separator tank. Unitized on mild steel frame and appears to be in very good condition.

Stock Number: C736569
Manufacturer: Croll Reynolds
Model: S10
Serial Number: 85303-XY
HP: 7.50
Inlet and Outlet: 1.50" Inlet x 1.50" Outlet
Basis: FOB
