USED 2020 FANUC ArcMate 120iD + R-30iB PLUS + TPS 400i
Overview

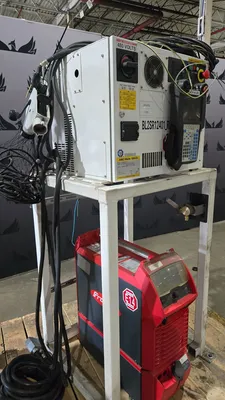

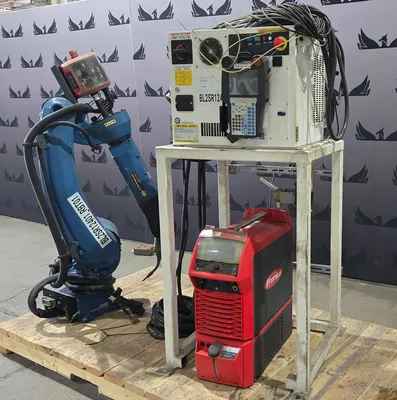

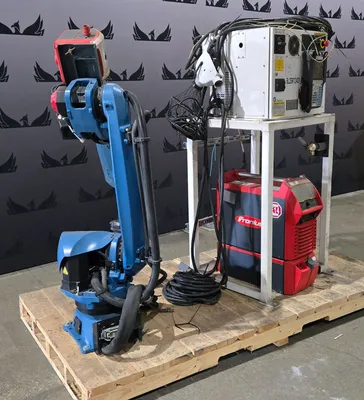

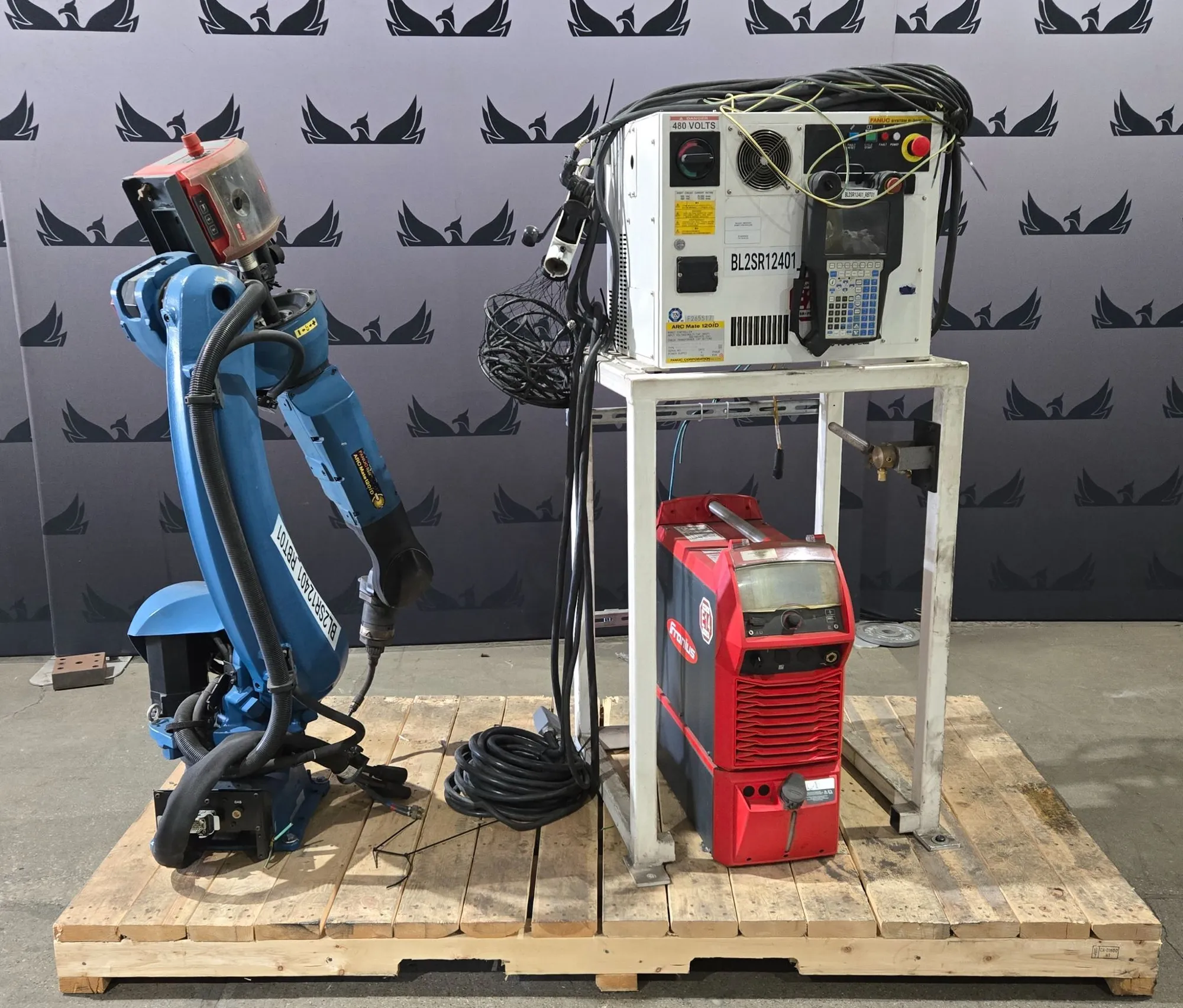

This listing is for a USED Fanuc Arc Mate 120iD complete system with R-30iB Plus controller, iPendant teach pendant, and Fronius TPS 400i weld system. The system integrates articulated robot motion with arc welding capability, enabling coordinated weld path execution, power control, and automated fabrication processes in industrial environments.
Specs

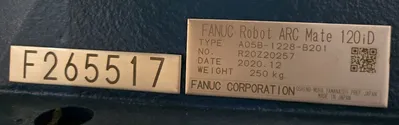

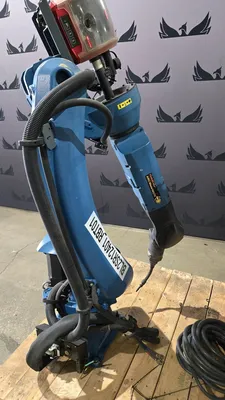

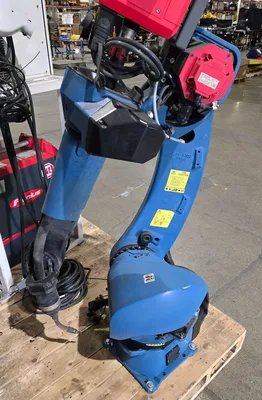

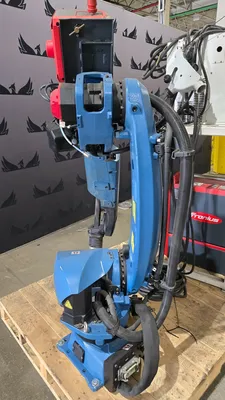

Robot Manufacturer: Fanuc
Robot Model: Arc Mate 120iD
Type: A05B-1228-B201
Condition: USED
Hours: 23948
YOM: 2020
Robot Serial Number: R20Z20257
Robot Weight: 250 kg
Payload Capacity: 25 kg
Max Reach: 1831 mm
Repeatability: ±0.08 mm

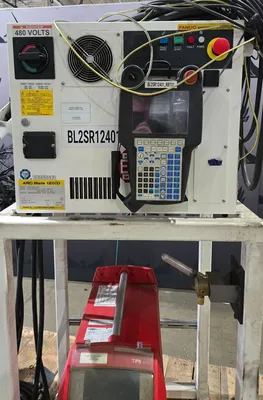

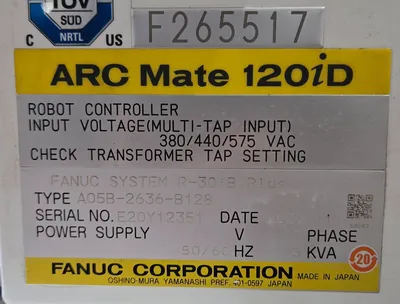

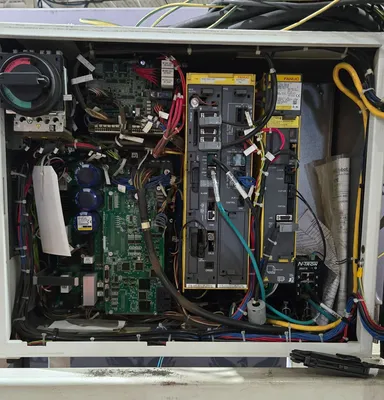

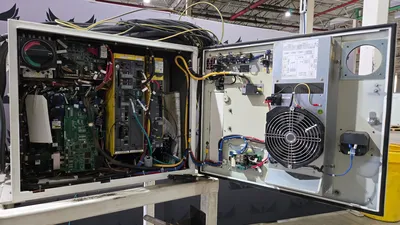

Controller Manufacturer: Fanuc
Controller Model: R-30iB Plus
Controller Type: A05B-2636-B128
Controller Serial Number: E20Y12351
Controller Date: 2020-11
Input Voltage: 380 / 440 / 575 VAC
Frequency: 50 / 60 Hz
Phase: 3 Phase
Power Rating: Not specified

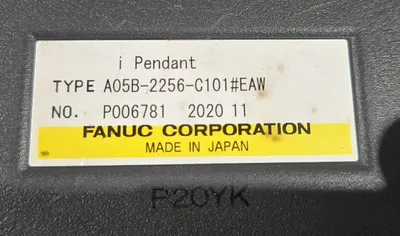

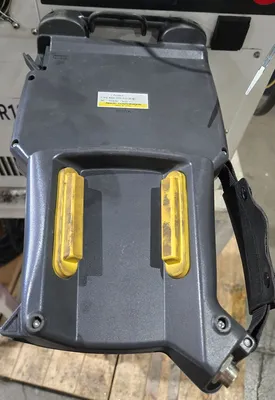

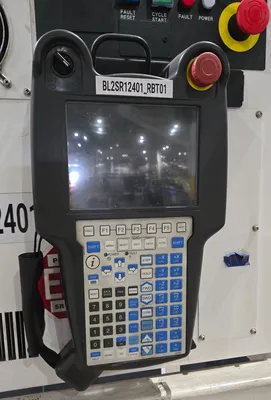

Teach Pendant:
Model: iPendant
Type: A05B-2256-C101#EAW
Serial Number: P006781
Date: 2020-11

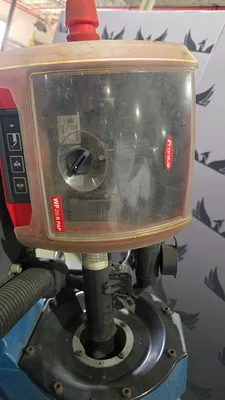

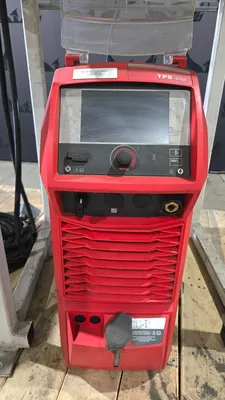

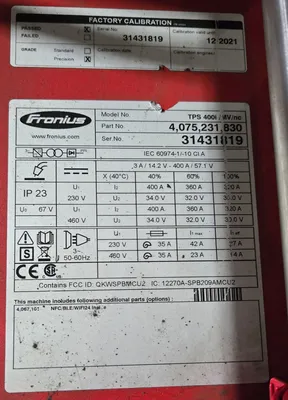

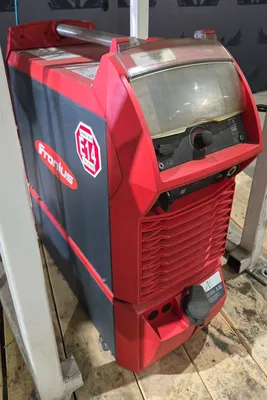

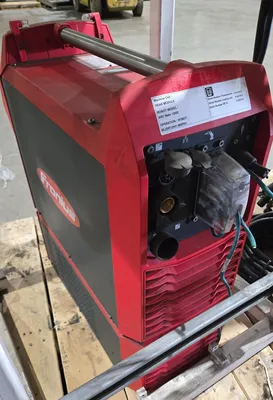

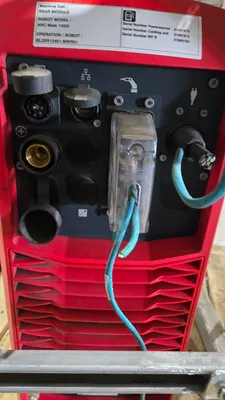

Welding Power Source Manufacturer: Fronius
Model: TPS 400i / MV / nc
Part Number: 4,075,231,830
Serial Number: 31431819
Welding Output:
Voltage Range: 14.2 V – 57.1 V
Max Output Current: 400 A
Duty Cycle:
40%: 400 A
60%: 360 A
100%: 320 A
Input Requirements (Welder):
230 V: 35 A
460 V: 35 A
Protection Rating: IP23

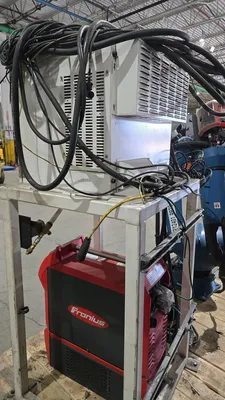

System Configuration:
Robot + Controller + Teach Pendant + Welding Power Supply
Mounting: Floor Mount Base
