USED 2020 FANUC ArcMate 120iD + R-30iB PLUS + TPS 400i
Overview

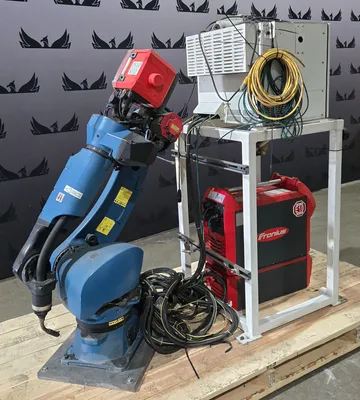

This listing is for a USED Fanuc Arc Mate 120iD complete system with R-30iB Plus controller, iPendant teach pendant, and Fronius TPS 400i weld system. The system delivers coordinated 6-axis robotic motion with integrated arc welding output, supporting programmable weld routines and synchronized control of motion, voltage, and current in automated welding environments.
Specs

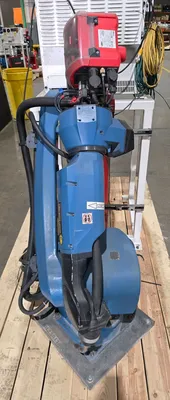

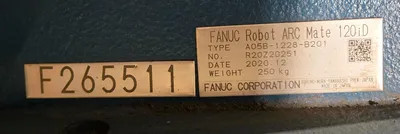

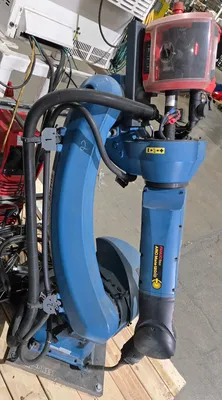

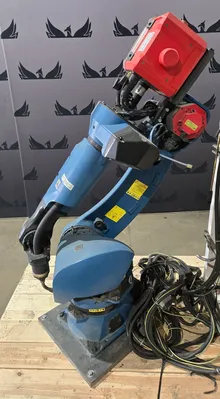

Robot Manufacturer: Fanuc
Robot Model: Arc Mate 120iD
Type: A05B-1228-B201
Condition: USED
Hours: 22719
YOM: 2020
Robot Serial Number: R20Z20251
Robot Weight: 250 kg
Payload Capacity: 25 kg
Max Reach: 1831 mm
Repeatability: ±0.08 mm

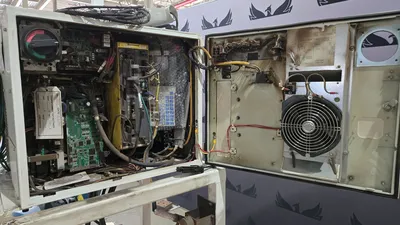

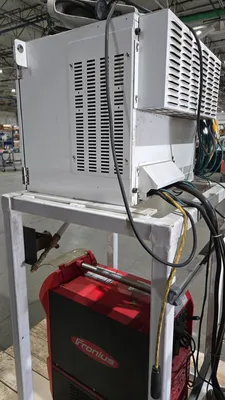

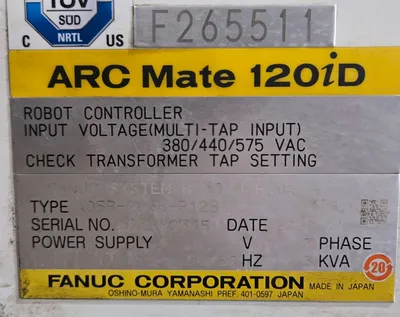

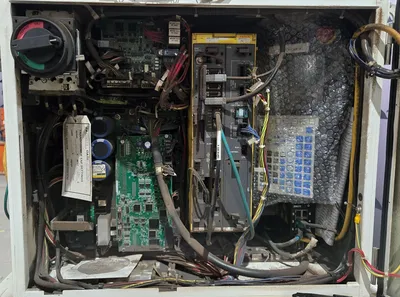

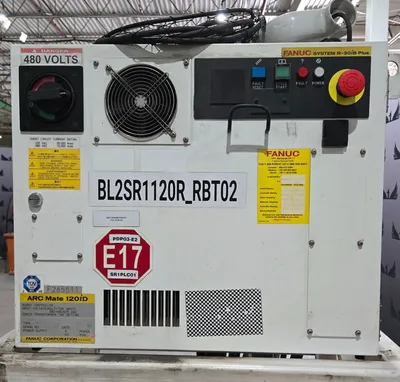

Controller Manufacturer: Fanuc
Controller Model: R-30iB Plus
Controller Type: A05B-2636-B128
Controller Serial Number: E20Y12345
Controller Date: 2020-11
Input Voltage: 380 / 440 / 575 VAC
Frequency: 50 / 60 Hz
Phase: 3 Phase
Power Rating: 3 kVA

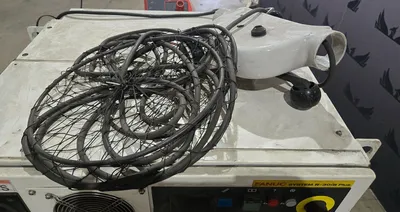

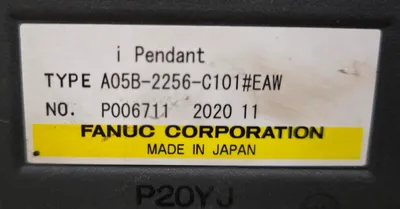

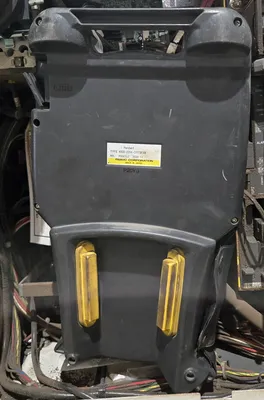

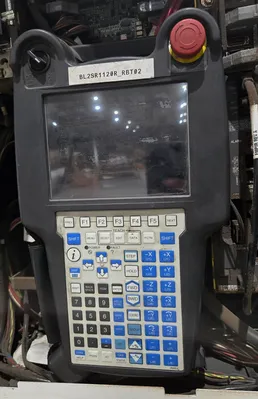

Teach Pendant:
Model: iPendant
Type: A05B-2256-C101#EAW
Serial Number: P006711
Date: 2020-11

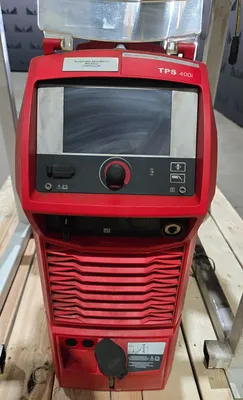

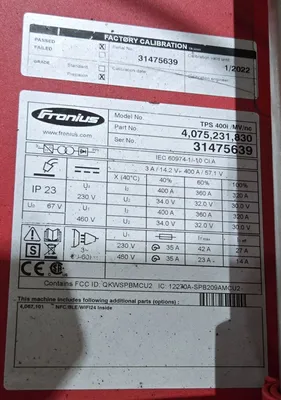

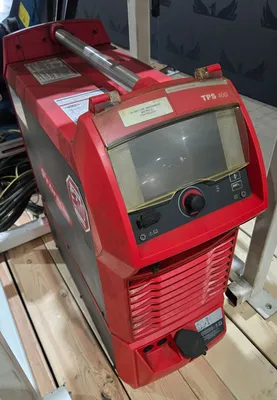

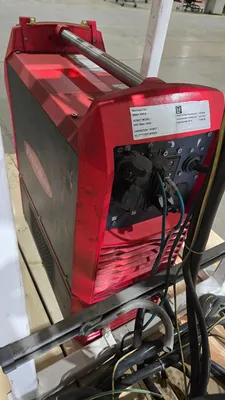

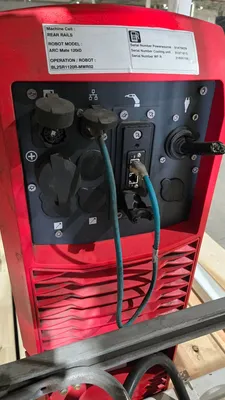

Welding Power Source Manufacturer: Fronius
Model: TPS 400i / MV / nc
Part Number: 4,075,231,830
Serial Number: 31475639
Welding Output:
Voltage Range: 14.2 V – 57.1 V
Max Output Current: 400 A
Duty Cycle:
40%: 400 A
60%: 360 A
100%: 320 A
Input Requirements (Welder):
230 V: 35 A
460 V: 35 A
Protection Rating: IP23
System Configuration:

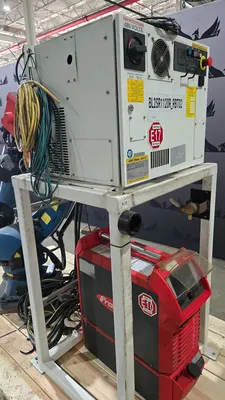

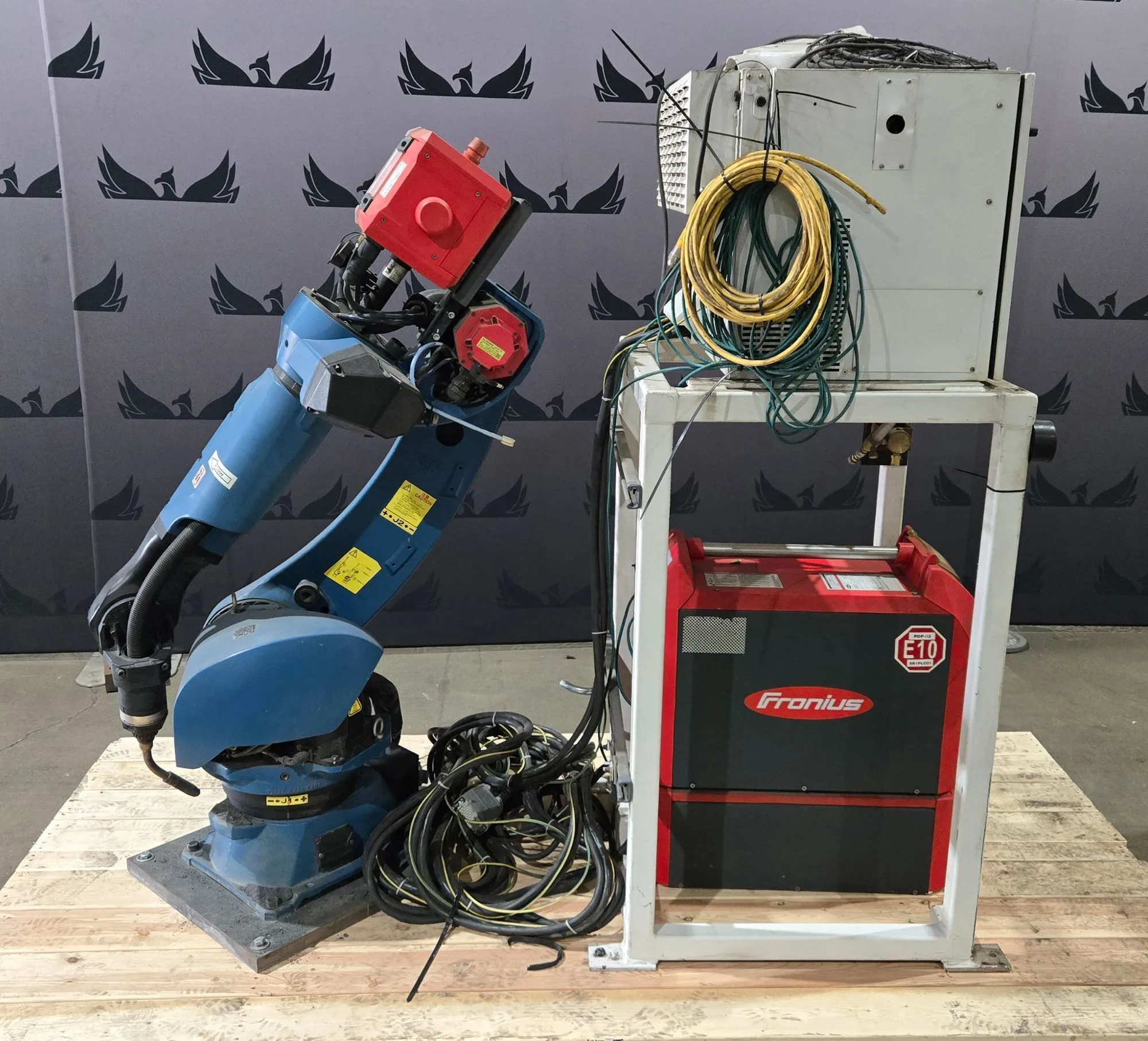

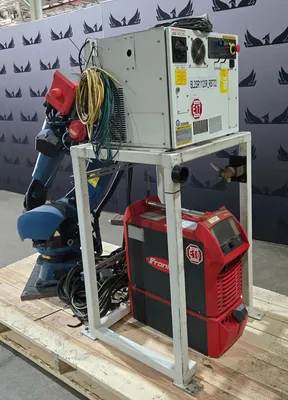

Robot + Controller + Teach Pendant + Welding Power Supply
Mounting: Floor Mount Base
