Used

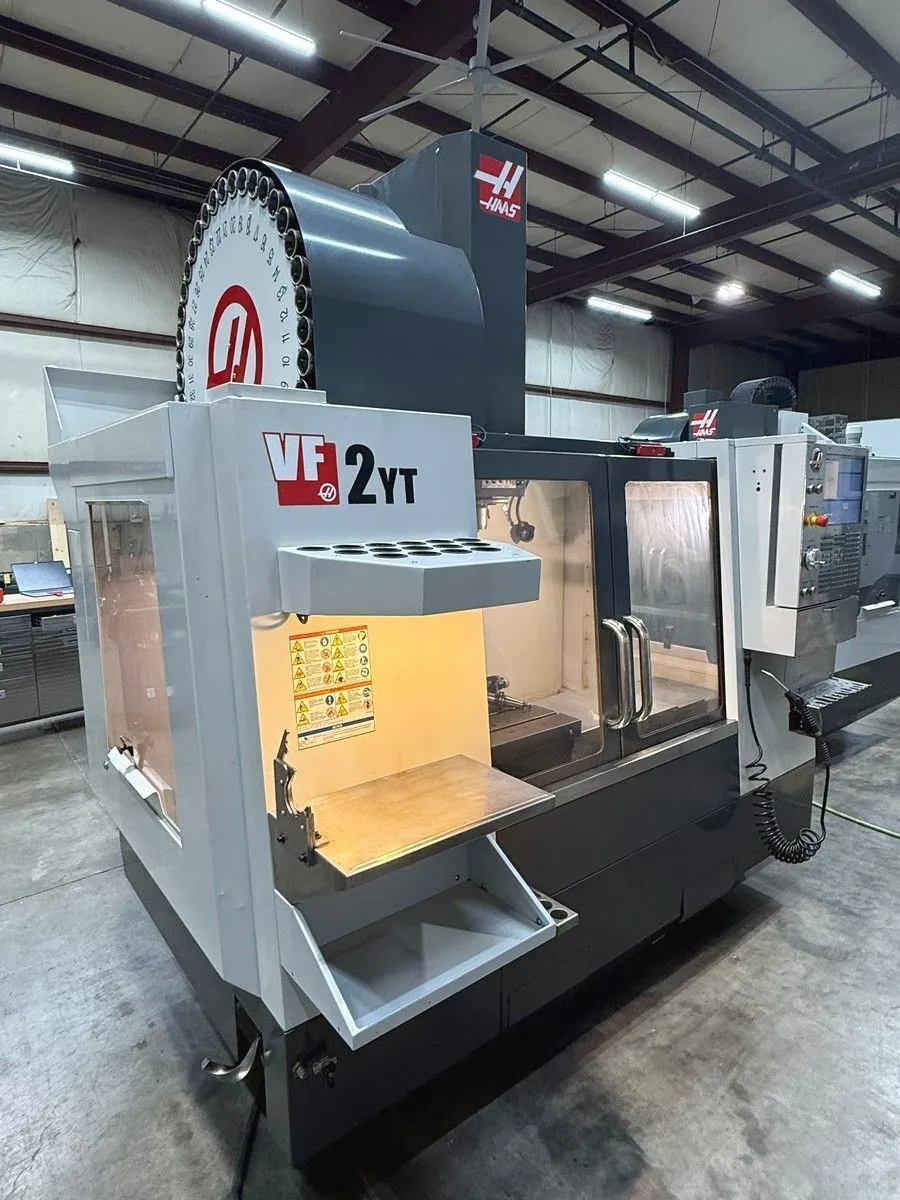

USED 2014 HAAS VF-2YT

Michigan, United States
Overview
Vertical Machining Centers

2014 Haas VF-2YT CNC VMC with Work and Tool Probing System, Chip Auger, 40 Station Tool Changer, High Speed Machining, Rigid Tapping, Hard Drive, Networking, Ext. Memory, Haas Editor, Standard Coolant Tank/Pump, 480V Internal Transformer. On our floor in Grand Rapids, Michigan.

Specs
X
30"
762 mm
Y
20"
508 mm
Z
20"
508 mm
Power
30 hp
22.4 kW
RPM
8,100 RPM
8,100 RPM
# ATC
40
40
Taper
CAT-40
CAT-40
Table-W
18"
457.2 mm
Table-L
36"
914.4 mm
# Axis
3
3
Control
CNC
CNC

30" X-Axis Travel
20" Y-Axis Travel
20" Z-Axis Travel
8100rpm Max. Spindle Speed
CAT-40 Spindle Taper
30HP Spindle Motor
40 Station Tool Capacity

Equipped With

40 Station Automatic Side Mount Tool Changer
Work and Tool Probing System
Chip Auger
480V Internal Transformer
Standard Coolant Tank/Pump

The following options show as "On" in the control panel:
High Speed Machining
Rigid Tapping
Coordinate Rotation and Scaling
Macros
Spindle Orientation M-19
Haas Editor
Hard Drive
Extended Memory
Networking
Intuitive Programming System

On Our Floor in Grand Rapids, Michigan
