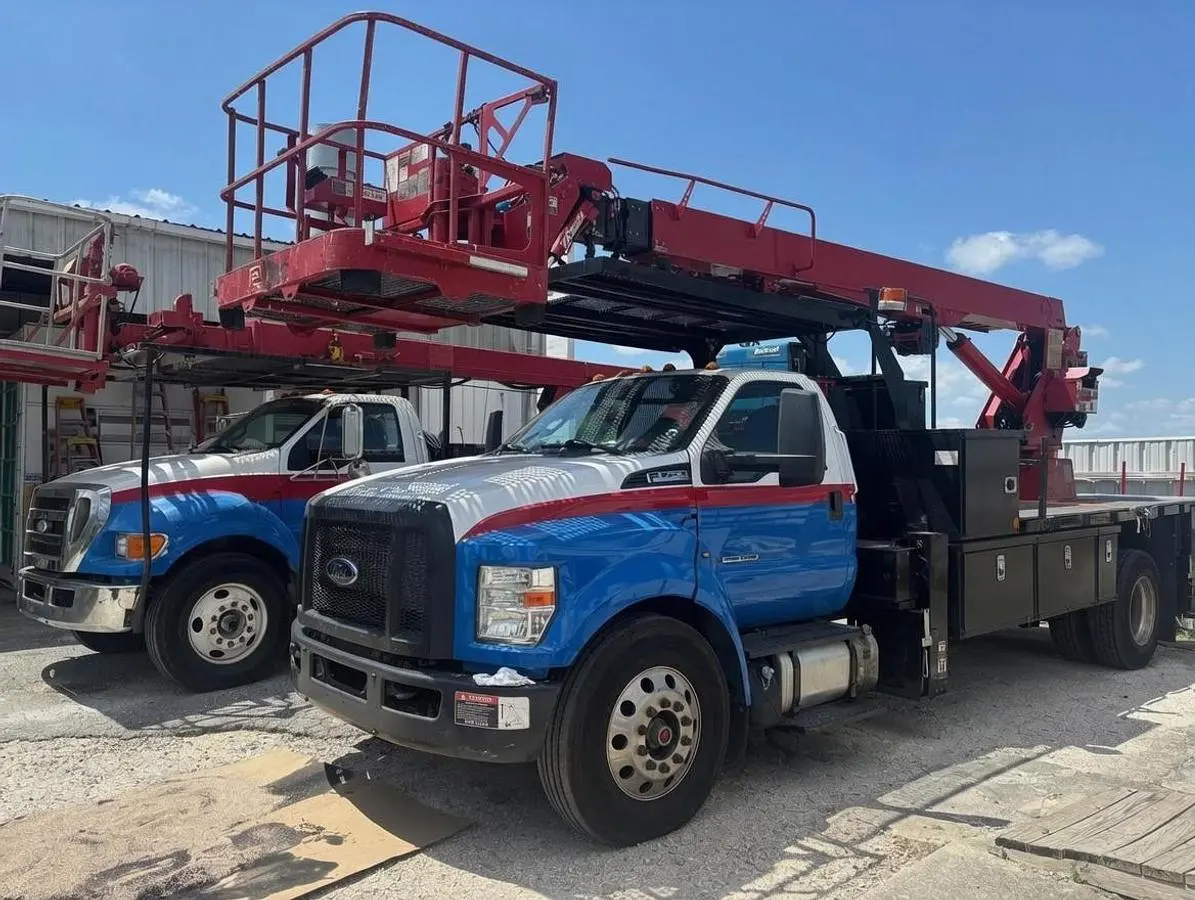

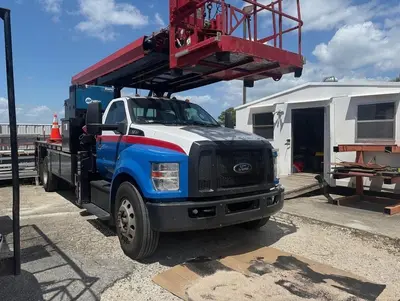

USED 2017 FORD F750 SUPER DUTY

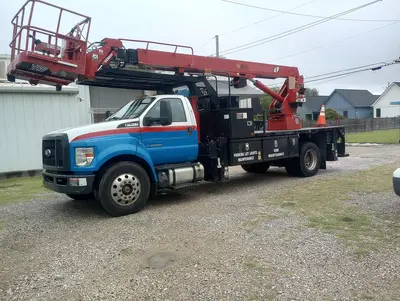

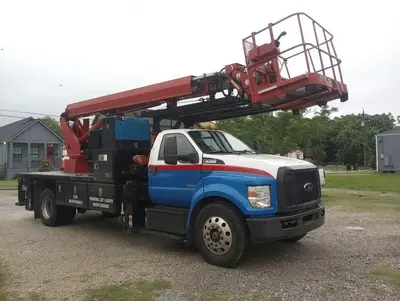

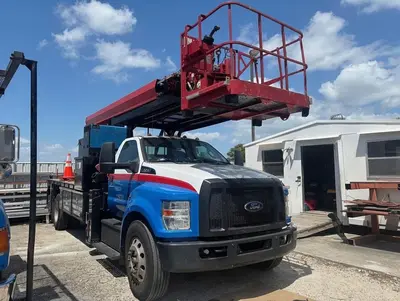

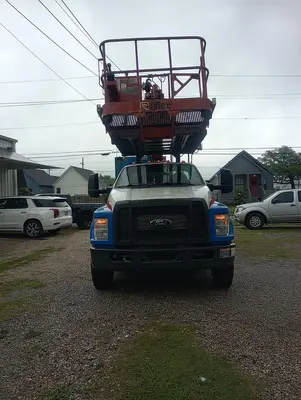

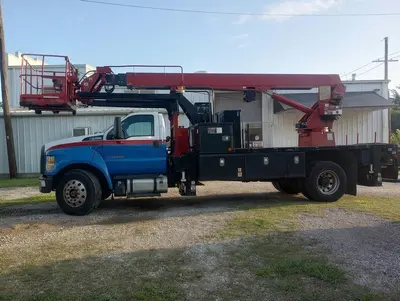

Looking for a versatile Altec LS63 sign crane mounted on a durable 2017 Ford F-750 regular cab flatbed? This specialized aerial and material-handling unit is built for professional sign installation, billboard maintenance, and lighting work. Combining Altec’s proven LS63 telescopic aerial device with Ford’s heavy-duty F-750 chassis delivers reach, lifting power, and job-site efficiency in one reliable package.

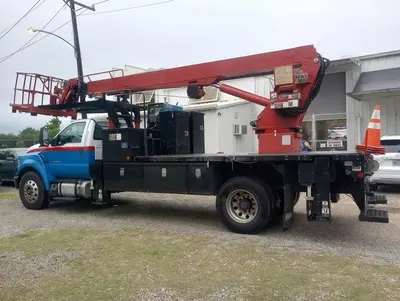

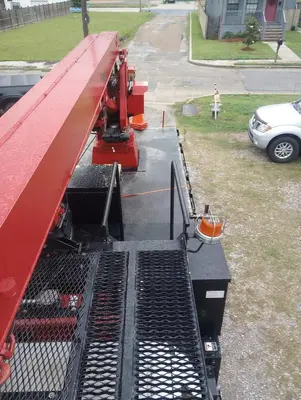

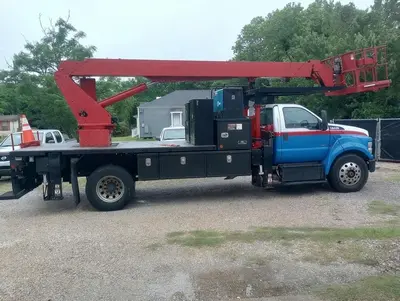

The Altec LS63 is a non-insulating telescopic aerial device designed specifically for the lights and signs industry. It functions as both a two-person personnel lift and a high-capacity crane, allowing crews to switch between aerial work and material handling in minutes. Mounted on a 2017 Ford F-750 regular cab flatbed, this combination offers excellent stability, payload capacity, and highway performance.

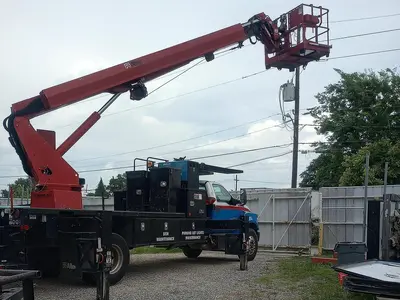

63.8 ft working height and nearly 57 ft of side reach for efficient access

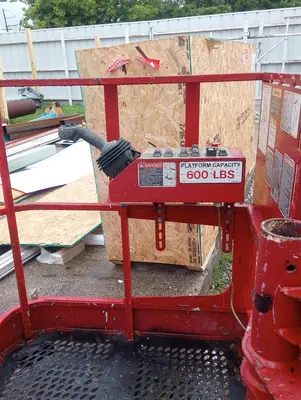

Quick-disconnect 600 lb platform that converts to a load-line crane
Up to 5,900 lb primary winch capacity for lifting signs and materials
Compact working footprint ideal for busy roadsides and urban sites
Durable Ford F-750 chassis with regular cab and flatbed configuration
FeatureSpecificationWorking Height63.8 ft (19.4 m)Platform Height58.8 ft (17.9 m)Maximum Side Reach56.9 ft (17.3 m)Platform Capacity600 lb (272 kg)Platform Size60 × 40 in steel, self-levelingPlatform Rotation90°Primary Winch Capacity (optional)Up to 5,900 lb (2,679 kg)Platform Jib Capacity (optional)500 lb (227 kg)Boom TypeThree-stage telescopic (non-insulating)RotationContinuousComplianceANSI A92.2 / ASME B30.5

Standard Features

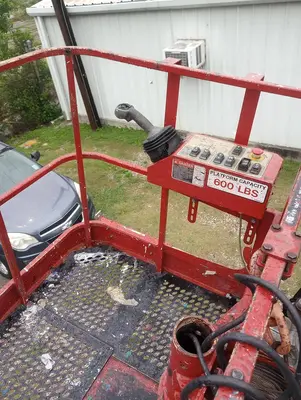

Hydraulic self-leveling platform with quick disconnect

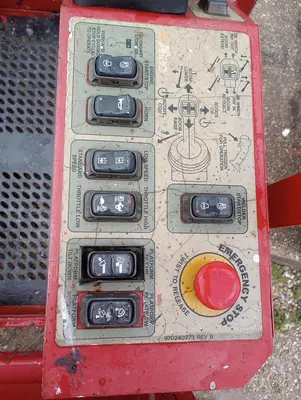

Multi-handle proportional controls
Hydraulic Overload Protection (HOP) system

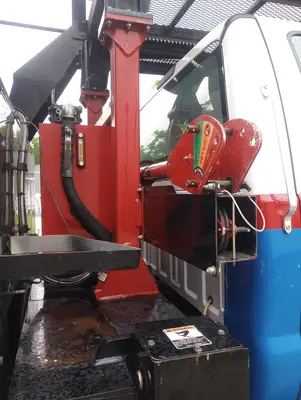

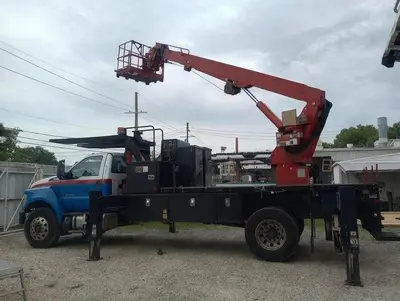

Primary out-and-down rear outriggers + front A-frame outriggers
Continuous rotation and boom angle indicator
Engine start/stop, emergency power, and safety alarms
Popular Options
5,900 lb primary winch with anti-two-block
500 lb platform jib winch
Single-handle proportional controller
Short-jacking outrigger system with rotational interlocks
Material handling attachment
Cab guard

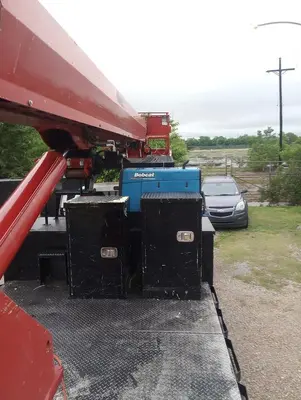

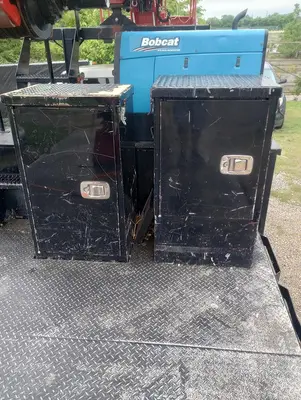

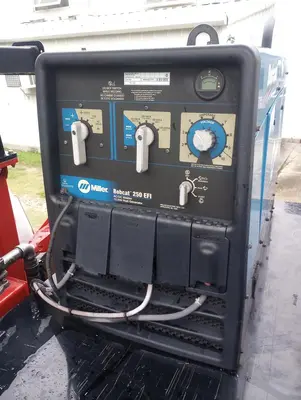

Welder/generator package with remote start and 110V power at platform

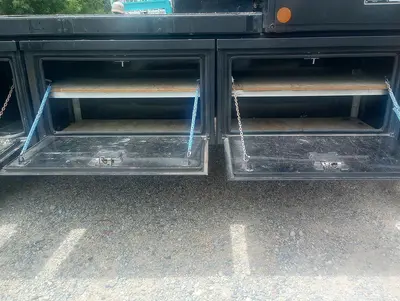

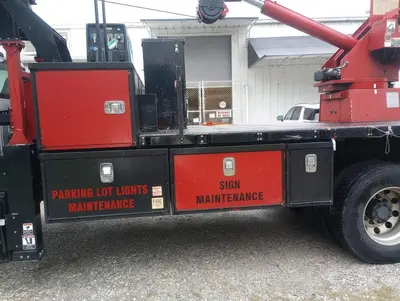

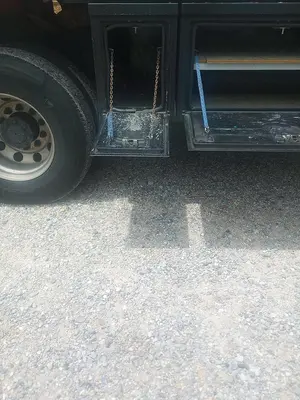

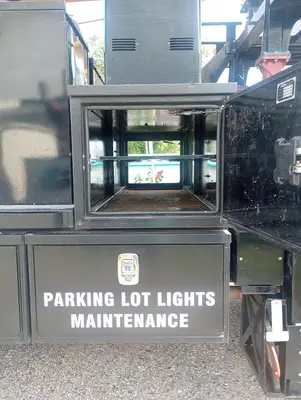

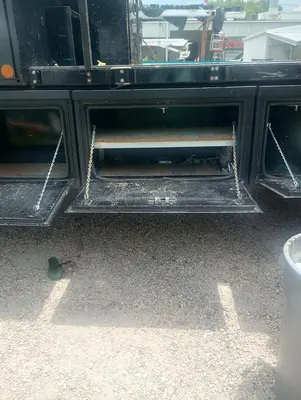

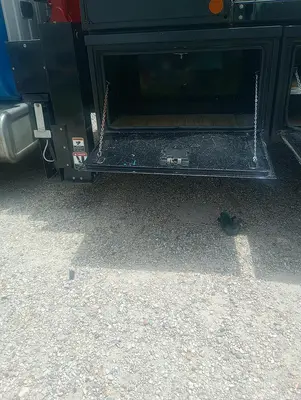

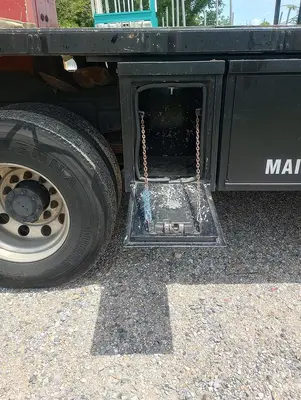

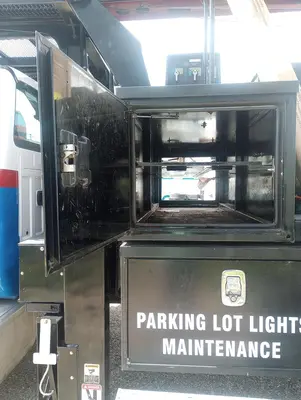

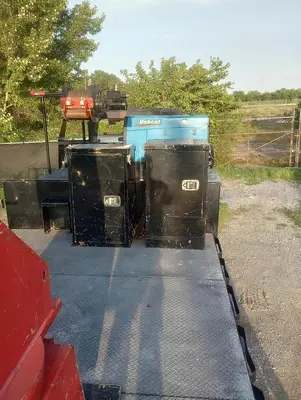

Auxiliary storage boxes and tow package

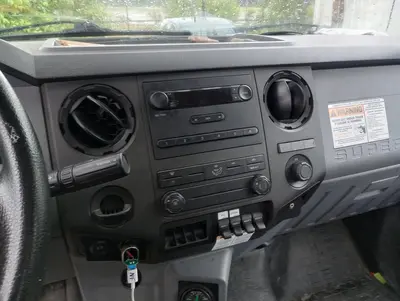

The 2017 Ford F-750 regular cab provides a strong foundation for the Altec LS63. Typical configurations for these sign crane trucks include:

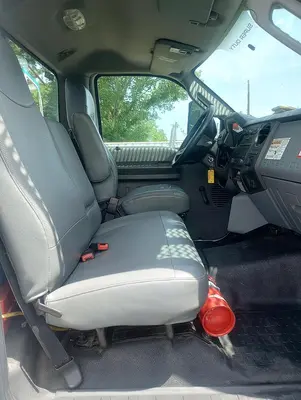

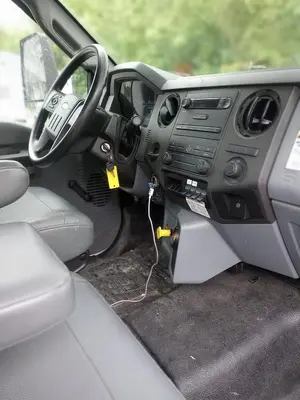

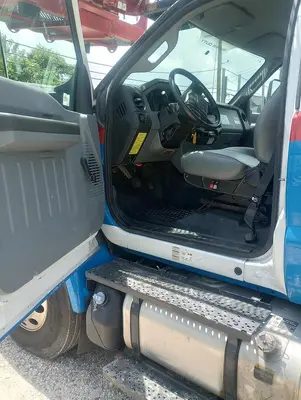

Regular cab (2–3 passengers)

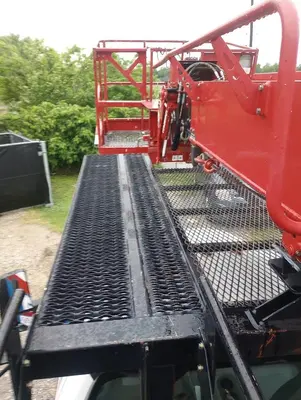

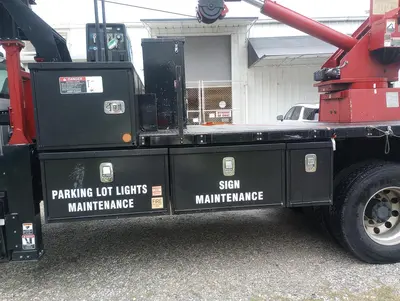

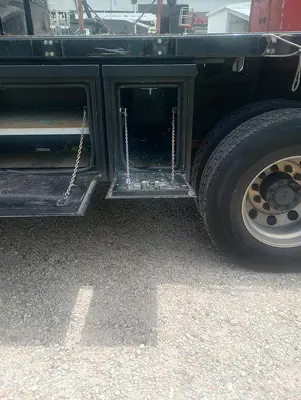

Flatbed body for tools, signs, and equipment
Heavy-duty diesel engine (commonly 6.7L Power Stroke or equivalent)
Automatic or manual transmission options
GVWR typically in the 30,000–33,000+ lb range
Air or hydraulic brakes and commercial-grade amenities
This chassis delivers the durability and payload capacity needed for daily sign and lighting service work.
