USED 2008 DMG MORI DECKEL MAHO DMC75V LINEAR
Overview
VERTICAL MACHINING CENTERS
DECKEL MAHO DMC75V linear
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:
One used 2008 DECKEL MAHO DMC 75V linear 3Axis High Speed Gantry Style VMC:
Machine made in Seebach, Germany,may be inspected in US plant under power!
-HIGHLIGHTS-
Rigid gantry style construction for optimum precision & surface quality
Direct measuring systems (Heidenhain glass scales) all axes
High speed 3D control
Linear drives on all axes
Acceleration values up to 2g and rapid traverse speeds up to 3,500 ipm !
Linear drives position very precisely, and offer a long product life
because contact-free power transfer eliminates mechanical wear
Temperature compensation in the Z-axis
-CONTROL-
Heidenhain iTNC 530 3-D Control with 15" TFT screen & electronic handwheel
-WORKING RANGE-
-FEED DRIVES (DIGITAL)-
-MEASURING SYSTEM-
Direct, Heidenhain glass scales, input accuracy 3.94" x 10-6 (0.0001 mm)
-WORKING SPINDLE-
-WORK TABLE- (TABLE MOVES AS X AXIS)
T-slots: number x type x distance... 6 x DIN 650-14H12 x 3.94" (100 mm)
-60 POSITION PICKUP TOOL CHANGER-
-COOLANT UNITS-
Pump Capacity/outside Tool Cooling 33.4 PSI (2.3 bar),10.6gal/min(40l/min)
Pump Capacity for Bed Flushing 33.4 PSI (2.3 bar), 26.4gal/min (100l/min)
Number of nozzles: cooling water/air............................... 6/2
Pump Capacity of COOLANT THRU THE SPINDLE 580 PSI (40 bar), 6.1gal/min
Pump Capacity of spray gun 33.4 PSI (2.3 bar), 5.28 gal/min (20 l/min)
-EQUIPPED WITH-
Production Package I:
Coolant Thru the Spindle form A-D 580 PSI/40 Bar, 6.1gal/min(23l/min)

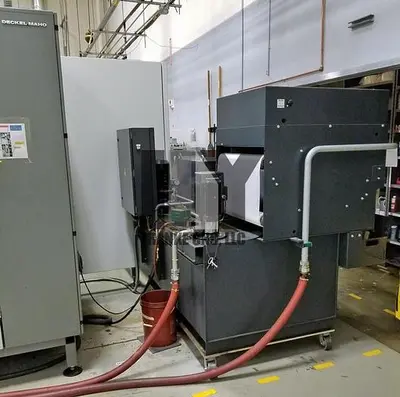

259 Gallon (980 l) High Pressure Coolant Tank
Paper Band Filter
Rotating Clear View Window
Spray-Gun
Siemens Linear Drives
BLUM laser tool measuring
External air blast cooling
Specs
Status: Available
Number of axis: 3-Axis
Tool changer: 60 ATC
Control: HH iTNC 530
Spindle: 42,000 rpm
Spindle taper: HSK-E50
X axis: 29.5" (750 mm)
Y axis: 23.6" (600 mm)
Z axis: 22.0" (560 mm)
X-axis path (longitudinal): 29.5" (750 mm)
Y-axis path (transverse): 23.6" (600 mm)
Z-axis path (vertical): 22.0" (560 mm)
Feed force x,y max: 2,470 lbs (11,000 N)
Feed force z max: 2,135 lbs (9,500 N)
Feed range: 0.04-3,500 IPM (1-90,000 mm/min)
Rapid traverse x, y, z-axis: 3,500 IPM (90 m/min)
Acceleration maximum: 50/40/60 ft/sec-2 (15/12/18 m/s-2)
Control resolution: 0.1 um
Speed range, max: 20-42,000 rpm
Power rating 40% dc: 17.3 hp (13 kW)
Power rating 100% dc: 13.3 hp (10 kW)
Torque 40% dc: 5.9 Ft/Lbs (8 Nm)
Torque 100% dc: 4.4 Ft/Lbs (6 Nm)
Tool taper: HSK 50
Tool clamping power: 11,000 N
Clamping area: 37.4" (950 mm) long x 25.6" (650 mm) wide
Loading height (upper edge of table): 35.43" (900 mm)
Maximum height of work piece: 23.62" (600 mm)
Maximum load on table: 2,205 lbs (1,000 kg)
Number of pockets: 60
Maximum tool diameter: 3.15" (80 mm)
Maximum tool diameter with free neighbouring pockets: 5.5" (140 mm)
Maximum tool diameter for boring head: 7.87" (200 mm) diameter
Maximum tool length: 11.81" (300 mm)
Maximum tool weight: 13.22 lb (6 kg)
Maximum weight of all tools in magazine: 331 lb (150 kg)
Tool fitting: HSK 50
Chip to chip time: Approximately 6 seconds
