USED 2012 MIKRON MILL HSM 400 LP

SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS OF FRANKE CNC SALES CONTRACT, WE OFFER FOR YOUR CONSIDERATION:

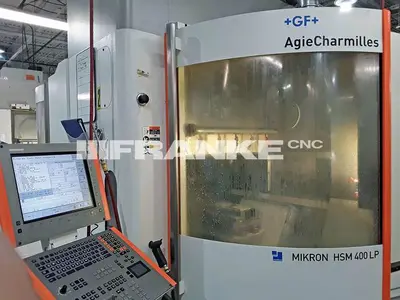

One used 2012 +GF+ MIKRON HSM 400 LP 3-Axis high speed VMC with pallet changer and tool tower:

Machine was manufactured at +GF+ in Nidau, Switzerland 8/2012

CONTROL
HEIDENHAIN iTNC 530 with 15.1" color TFT monitor, ethernet and electronic handwheel for part setup

WORKAREA
Longitudinal X..........................................   500 mm (19.7")
Lateral Y...............................................   450 mm (17.7")
Vertical Z..............................................   360 mm (14.2")

FEED AXES
Drive...............   Linear direct drives (no ballscrews) in X,Y,Z axes

FEED RATE
Rapid traverse X,Y,Z.........................   60 m/min (2,362 inch/min)

WORKING SPINDLE
RPM..........................................   42,000 rpm, HSK-E40 taper
Power..................................................   13.5 kW (18 hp)
Torque..............................................   8.8 Nm (6.5 ft/lb)

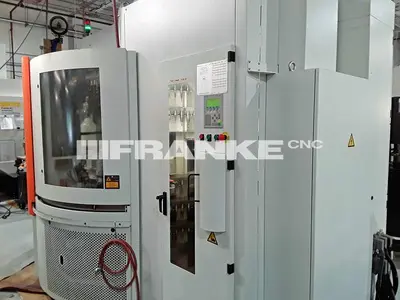

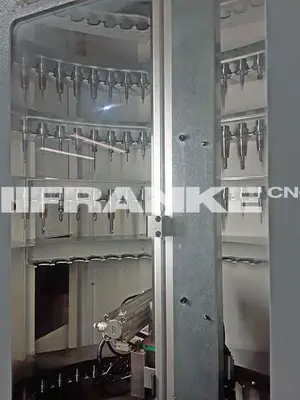

TOOL TOWER
Automatic tool changer capacity..............................   308 tools

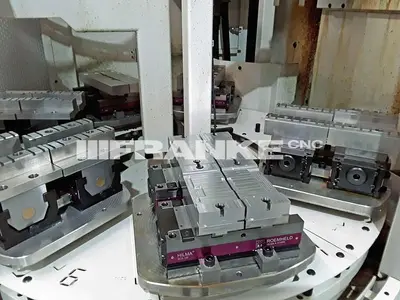

AUTOMATION
Pallet size    Dynafix 280 mm x 280 mm (350 mm x 350 mm pallet size possible)
Number of pallet stations....................................................   7
Max. load on pallets...................................   80 kg (176 lbs)

WEIGHT
Machine..........................................   6,800 kg (14,991 lbs)
Pallet magazine...................................   1,200 kg (2,645 lbs)

EQUIPPED WITH:
High performance lift-up chip conveyor

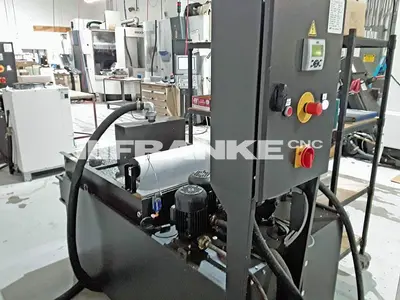

Band filter system 650 l capacity
Wash down system
Spray gun
Mistbuster mist extraction unit
Laser tool measuring system
Infrared OMP 40-2 touch probe
Beacon

TOOLING PACKAGE
Will come with approximately 100 tool holders of your choice but no tooling
