USED 2007 MIKRON MILL HSM 500
Overview
VERTICAL MACHINING CENTERS
HSM 500
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:
One used 2007/8 +GF+ MIKRON HSM 500 3-Axis High Speed Machining Center:
Built at +GF+ in Nidau, Switzerland 11/2007, first installed new 4/2008
-WORK AREA-
Longitudinal, X......................................... 500 mm (19.7")
Lateral, Y.............................................. 450 mm (17.7")
Vertical, Z............................................. 350 mm (13.8")
-STEP TEC Swiss made SPINDLE-
100-42,000 RPM, HSK-E40 taper.......... 11 kW/4.2 Nm (14.75 hp/3 lb/ft)
-FEED RATE-
Feed rate/Rapid traverse (X,Y)............. 20/40 m/min (787/1,575 IPM)
Feed rate/Rapid traverse (Z)................... 40/40 m/min (1,575 IPM)
-DYNAMIC-
1.7 G

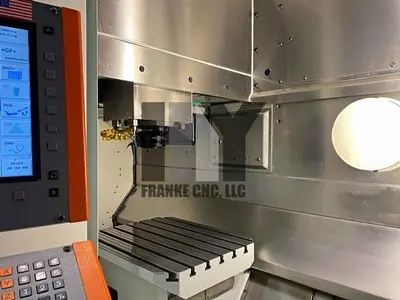

-WORK TABLE-
Clamping surface....................... 550 mm x 450 mm (21.7" x 17.7")
Max table load........................................ 200 kg (441 lbs)
Height of table top front floor.....................
Specs
Number of axis: 3-Axis
Tool changer: 36 ATC

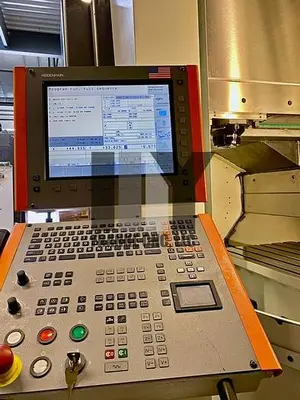

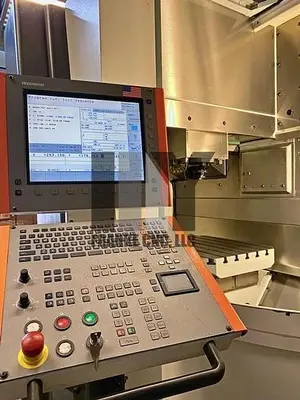

Control: HH iTNC 530
Spindle: 42,000 rpm
Spindle taper: HSK-E40
X axis: 19.7" (500 mm)
Y axis: 17.7" (450 mm)
Z axis: 13.8" (350 mm)
