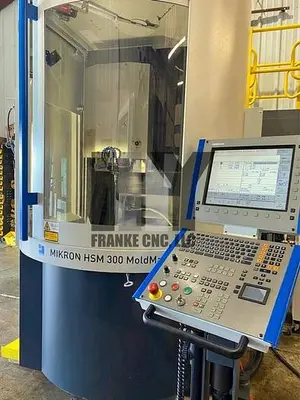

USED 2008 MIKRON MILL HSM 300 MOLDMASTER
Overview
VERTICAL MACHINING CENTERS

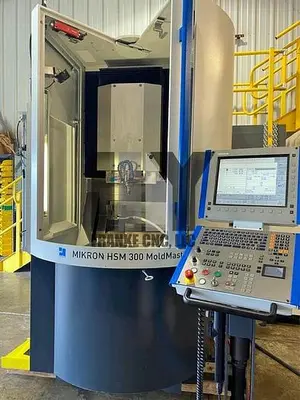

HSM 300 MoldMaster
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS
FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:
One used 2008/2009 +GF+ MIKRON HSM 300 MoldMaster 54k RPM VMC:
-HISTORY-
Machine was built at +GF+ in Nidau, Switzerland 12/2008,Install US 1/2009
-WORKING RANGE-
-FEED DRIVE-
-STEP TEC SWISS MADE SPINDLE-
-WORK TABLE-
-35 STATION TOOL CHANGER-
-CONTROL-
HEIDENHAIN iTNC 530 with mobile electronic handwheel & APS, ITC SW options
-WEIGHT-
-EQUIPPED WITH-
Completely enclosed machine enclosure

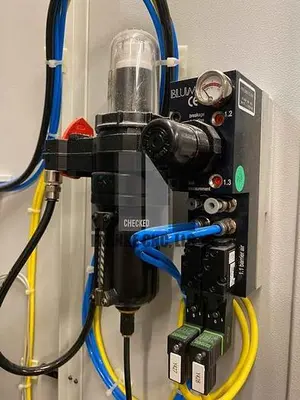

BLUM laser measuring system for tool measurement, wear & breakage control

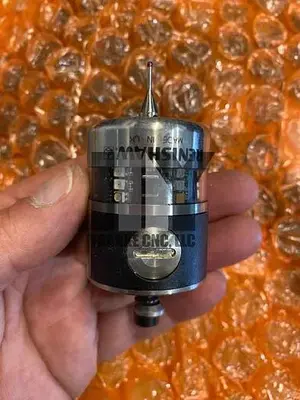

RENISHAW touchprobe for setup on machine & to check the work results
Preparation for robot automation with automatic sliding side door
Preparation for dust extraction unit
Massive polymer concrete (man made granite) base for the best damping
properties and exceptional thermal stability
Preloaded ballscrews with fine pitch for highest precision
Direct measuring systems (HEIDENHAIN glass scales) with high resolution
Watercooled high frequency spindle with HSK-E32 interface
Minimum lubrication quantity unit for hard milling
Ethernet interface for control
15" TFT color display on control
Overpressure protection on linear scales and spindle
Digital drives technology
User friendly command interface
Price quoted is in US Dollars
Purchase Point is Jackson, WI
Technical specifications are subject to verification by buyer
Specs
Status: Available
Number of axis: 3-Axis
Tool changer: 35 ATC
Control: HH iTNC 530
Spindle: 54,000 rpm
Spindle taper: HSK-E32
X axis: 14.96" (380 mm)
Y axis: 15.35" (390 mm)
Z axis: 10.04" (255 mm)
Axis: 3
X longitudinal: 380 mm (14.96")
Y lateral: 390 mm (15.35")
Z vertical: 255 mm (10.04")
Feed rate x/y/z-axis: 10/10/10 m/min (394 IPM)
Maximal rapid feed rate x/y/z-axis: 15/15/15 m/min (590 IPM)
Maximum acceleration x/y/z: 10/10/10 m/s-2
Spindle speed rate: 54,000 rpm
Spindle power: 6.5 kW (8.72 HP)
Spindle torque: 3.4 Nm (2.51 lb-ft)
Maximum tool diameter: 8 mm (0.32")
Maximum tool length: 80 mm (3.15")
Dimensions: 410 x 325 mm (16.1" x 12.8")
Maximum table load: 68 kg (150 lbs)
Tool magazine taper: HSK-E32
Tool magazine places: 35
Machine: 2,900 kg (6,393 lbs)
