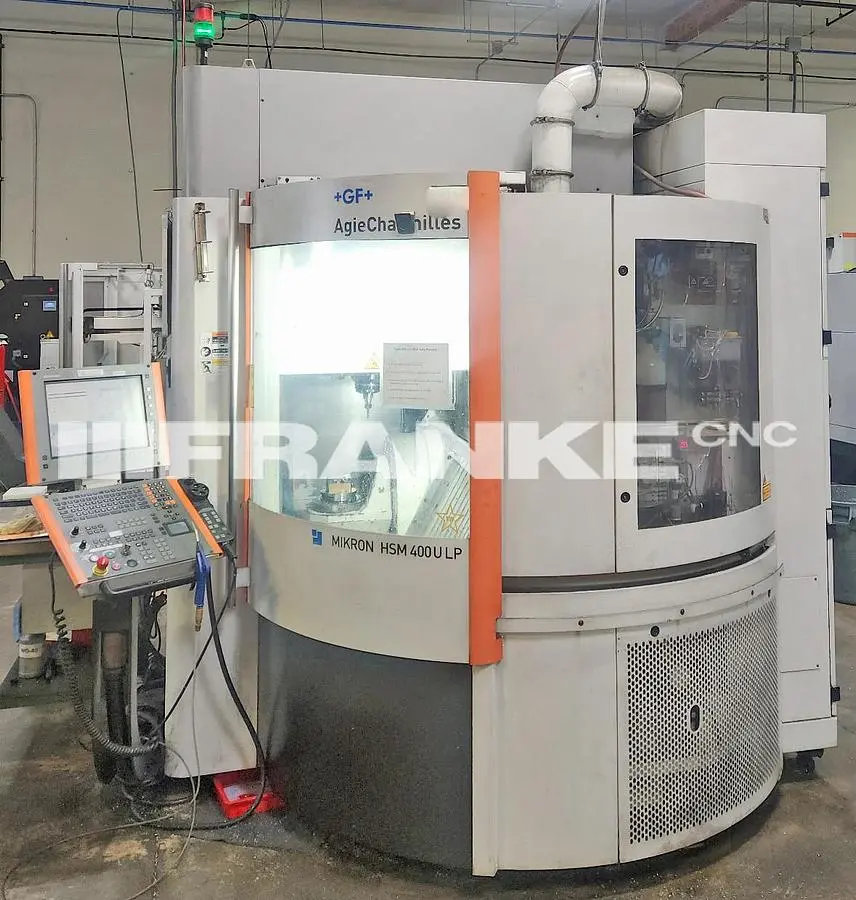

USED 2010 MIKRON MILL MIKRON HSM 400U LP
Overview
EQUIPPED WITH:

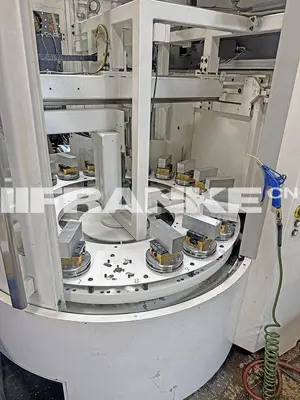

20 station automatic pallet changer
Miscellaneous Erowa ITS 148 mm diameter pallets
Chip conveyor
Oil mist extractor
Touch probe
Laser tool measuring
External spindle chiller
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point.
Price quoted includes de-installation and shipping preparation.
Price quoted includes the cost of loading onto truck supplied by Buyer.
Specs
Work area Longitudinal X: 500 mm
Work area Lateral Y: 240 mm
Work area Vertical Z: 360 mm
Swivelling axis: +110/-110 degrees
Rotating axis: n x 360
Feed rate Rapid traverse X,Y: 60 m/min
Feed rate Rapid traverse Z: 60 m/min
Rapid traverse (Swivelling): 165 rpm
Rapid traverse (Turning): 250 rpm
Working spindle (40% ED, S6): 42,000 rpm, HSK-E40, 13.5 kW, 8.8 Nm
Work table clamping surface: 148 mm diameter
Max table load: 25 kg
Tool magazine HSK-E40: 68 position
Automation Automation Pallet Changer: Erowa ITS 148 mm diameter pallets, 20 position
Pallet maximum load: 25 kg
Machine Weight: 7,000 kg
Pallet changer Weight: 1,200 kg

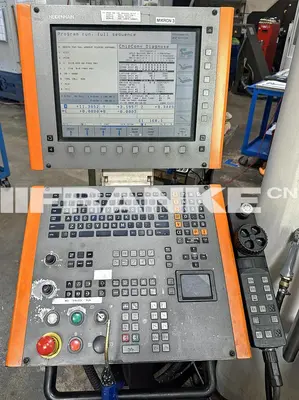

Control unit: Heidenhain iTNC 530
