USED 2014 MIKRON MILL MIKRON HPM 450U

SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS OF FRANKE CNC SALES CONTRACT, WE OFFER FOR YOUR CONSIDERATION:

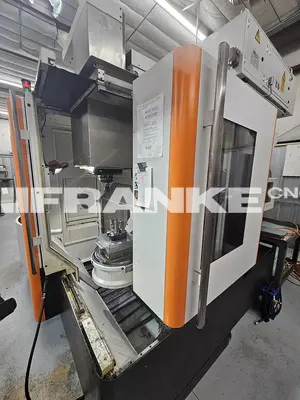

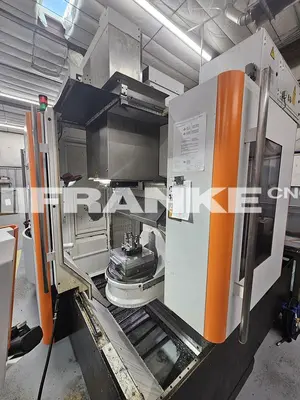

Used 2014 MIKRON MILL HPM 450U 5-Axis Machining Center with 7-Station Pallet Changer:

HISTORY
Machine was manufactured at +GF+ AgieCharmilles AG in Nidau, Switzerland 7/2014

CONTROL

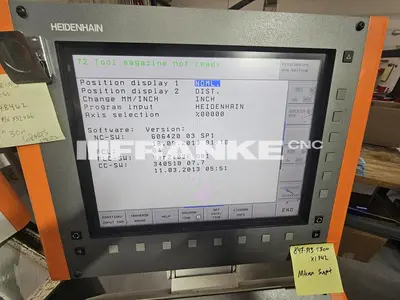

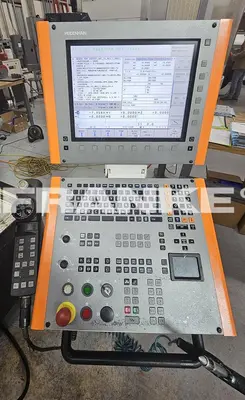

HEIDENHAIN iTNC 530 with Ethernet and electronic handwheel for part setup

WORKING RANGE
Longitudinal X-Axis.....................................   23.62" (600 mm)
Transverse Y-Axis............................................   17.72" (450 mm)
Vertical Z-Axis.........................................   17.72" (450 mm)
Maximum Workpiece Size……17.72” (450 mm) diameter x 17.72” (450 mm) height x 330 lbs (150 kg)
B-Axis (Tilt).......................................   -120 / +45 degrees
C-Axis (Rotary)........................................   n x 360 degrees
Number of simultaneous axis...........................   5/5 simultaneous

FEED DRIVE
Drive: Ballscrews in X,Y,Z-axis
Drive: Direct Drive Torque Motors in B and C-axis
Rapid Traverse X/Y/Z...................................   866 IPM (22 m/min)
Table Rapid Speed B-Axis (Tilt)......................................   50 rpm
Table Rapid Speed C-Axis (Rotary)....................................   140 rpm !
Maximum Acceleration X/Y/Z.....................................   up to 5 m/sec2

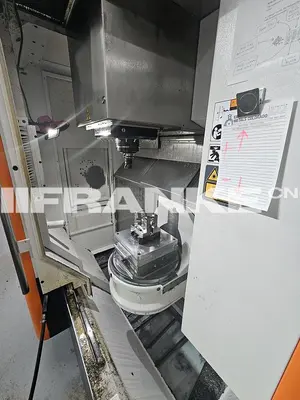

DIRECT DRIVE TORQUE MOTOR RTT (ROTARY TILT TABLE)
Pallet Clamping Surface..11.02" x 11.02” (280 x 280 mm) or 13.78” x 13.78” (350 x 350 mm) pallet sizes
Maximum workpiece weight (manual loading).............   330 lbs (150 kg)
Maximum Workpiece Size……17.72” (450 mm) diameter x 17.72” (450 mm) height x 330 lbs (150 kg)
Pallet type this machine and pallet changer are equipped for.............   System 3R Dynafix pallets
Number of pallet stations pallet changer is equipped with……7 x pallet stations
With hydraulic clamping in turning and swivelling axis
All feed motors are liquid-cooled
Direct measuring system HEIDENHAIN rotary encoders 0.00004” (1 um) resolution

AUTOMATION
BLUM laser tool measuring system
M&H Infrared touch probe
system 3R Dynafix automatic pallet changer with 7 x pallet stations

60 POSITION TOOL CHANGER
Number of magazine places……………………….60 positions
Spindle taper…………………………………………HSK-A63
Maximum tool diameter……………………………..3.15” (80 mm)
Maximum tool diameter with unoccupied adjacent positions..4.92” (125 mm)
Maximum tool length…………………………………10.6” (270 mm)
Maximum permitted tool weight……………………13.2 lb (6 kg)

WEIGHT
Including pallet changer...........   Approximately 16,976 lbs (7,700 kg)
Machine base.......................   Polymer concrete (man made granite)

STEP-TEC SWISS MADE SPINDLE
Spindle taper..................................................   HSK-A63
Spindle RPM.................................................   100-20,000 rpm
Spindle power...................................   40 HP (30 kW)
Spindle torque 40% ED...............................   67 Ft/Lb (91 Nm)
Maximum tool diameter……………………..3” (80 mm)
Maximum tool length from the spindle nose….13.75” (350 mm)
Maximum tool weight…………………………..13.26 lbs (6 kg)

EQUIPPED WITH:
Complete machine enclosure
Oil mist extraction system

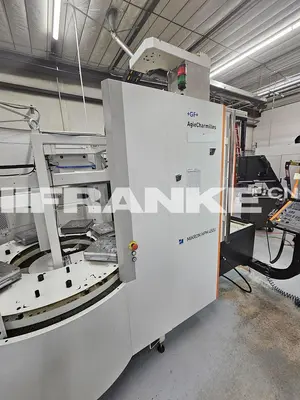

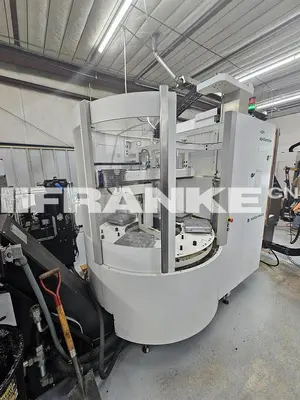

Pallet changer Dynafix

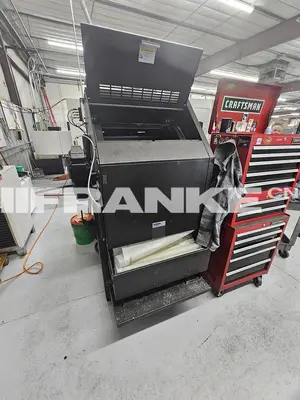

172 gallon (650 l) band filter coolant tank with micro paper filtration system
  -18-70 bar (260-1,000 PSI) manually adjustable high-pressure Coolant Thru the Spindle (CTS)
  -Flow rate 5.3 gallon/min (20 l/min)
Chip conveyor for higher demands for aluminum machining
Spray Gun
M&H Infrared touch probe
BLUM laser tool measuring system
Blow-off unit for laser measuring system
Beacon
Oil mist spray unit
Tilting the working plane. This option activates the optional Heidenhain software cycle 19
Direct measuring system HEIDENHAIN glass scales X/Y/Z 0.00004” (1 um) resolution positioning
Direct measuring system HEIDENHAIN rotary encoders B/C 0.00004” (1 um) resolution positioning

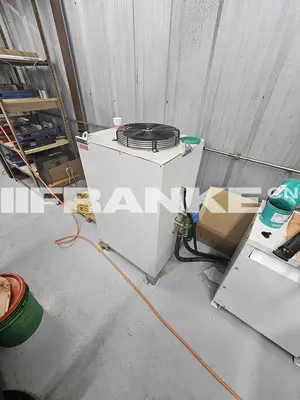

External spindle chiller
Miscellaneous used pallets

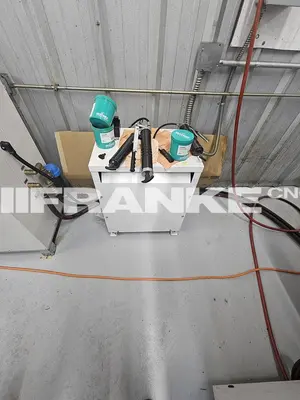

Used transformer


Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.

Price quoted is FOB Purchase Point.
Price quoted includes professional de-installation and shipping preparation by Seller.
Price quoted includes the cost of loading onto truck supplied by Buyer.
