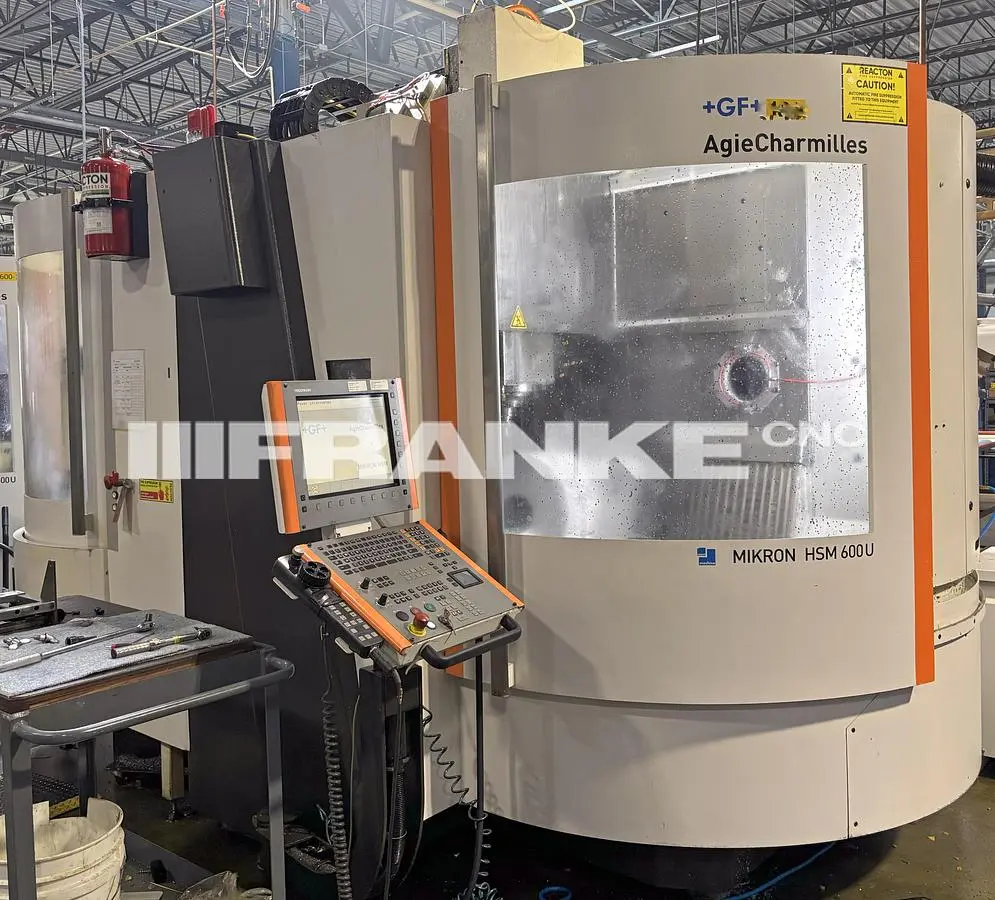

USED 2011 MIKRON MILL HSM600U 36K RPM 5-AXIS WITH 7 PALLETS
Overview
Equipped With:
Heidenhain iTNC 530 control
Electronic handwheel for control
Laser tool measuring system
Touch probe
7 station pallet changer for 3R pallets
Machine enclosure
Chip auger
External spindle chiller
Spray pistol
Tool blow-off unit
Oil mist spray unit
60 station automatic tool changer
Smart Machine Modules APS, ITC, ITC-5X, OSS
Standard flood coolant
Specs
Working range longitudinal: 800 mm (31.5")
Working range cross: 600 mm (23.6")
Working range vertical: 500 mm (19.7")
B-axis (swivel): +30/-110 degrees
C-axis (rotary): n x 360 degrees
Number of simultaneous axis: 5/5 simultaneous
Feed rate X,Y,Z: 42 m/min (1,653 IPM)
Feed rate B-axis (swivel): 200 rpm !
Feed rate C-axis (rotary): 360 rpm !
Acceleration X,Y,Z: up to 17 m/sec-2
Acceleration B-axis (swivel): up to 30 rad/sec-2
Acceleration C-axis (rotary): up to 125 rad/sec-2
Work table clamping surface: 280 mm x 280 mm (11.02" x 11.02")
Maximum workpiece weight: 120 kg (264 lbs)
Pallet type this machine is equipped with: System 3R Dynafix 280x280 mm or 350x350 mm pallets
Tool magazine positions: 60
Weight including pallet changer: 9,200 kg (20,282 lbs)
Spindle taper: HSK-E50
Spindle RPM: 36,000 RPM
Spindle power 40% ED: 25 kW (33.5 HP)
Spindle torque 40% ED: 20 Nm (14.75 Ft/Lb)
