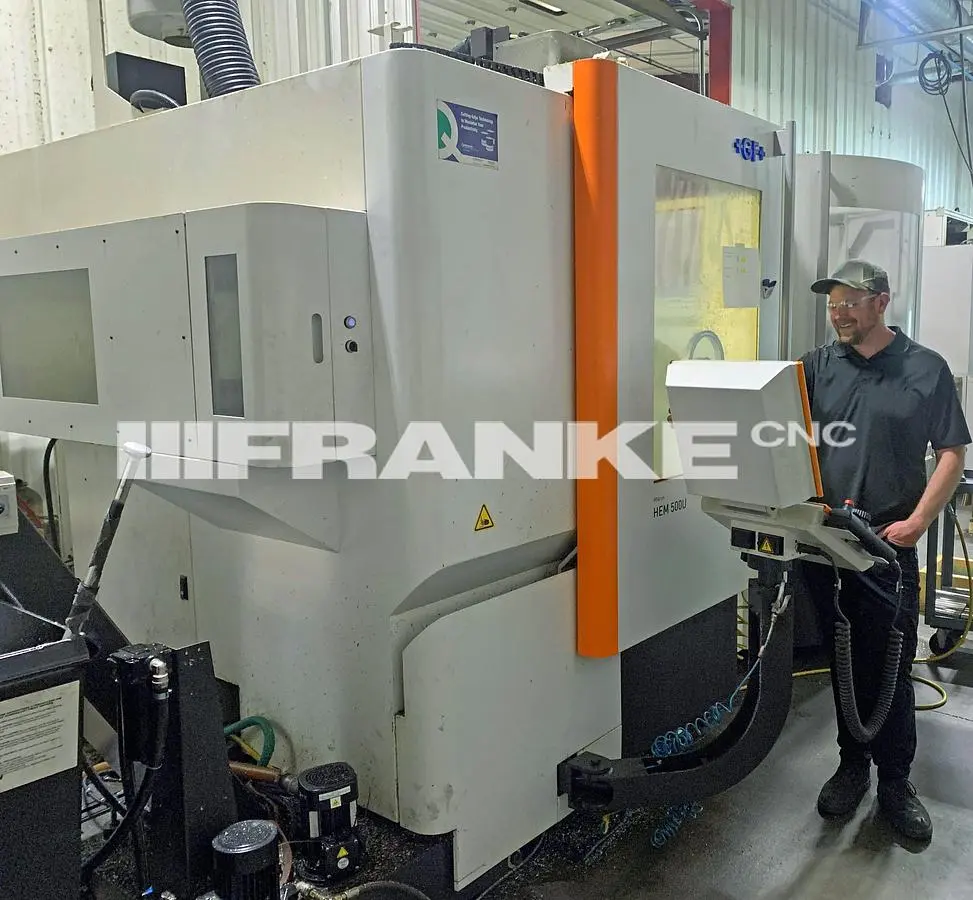

USED 2014 MIKRON MILL HEM 500U
Overview
EQUIPPED WITH:
Production package with high pressure CTS coolant thru the spindle
Oil mist spray unit
Oil mist extraction unit
Laser tool measuring system

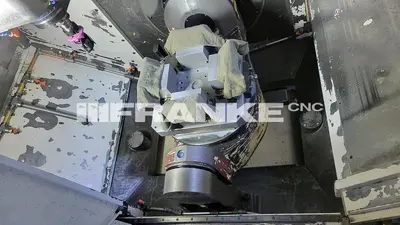

Rotary tilt table (RTT) simultaneous
Control 5 axis simultaneous iTNC 530
Heidenhain iTNC 530 torque 20,000 rpm spindle
Heidenhain linear glass scales
Infrared touch probe
Tool magazine 60 HSK 63 taper
Complete machine enclosure
Lift up chip conveyor
Movable hand wheel for control
Air pressure booster option
ITC, ITC-5X (Intelligent Thermal Control) software options
Kinematics option
Calibration ball 30 with base
Rotating inspection window
Compressed air through spindle
Machine with EC conformity
Manual conversational format Heidenhain control
Manual DIN/ISO programming Heidenhain control
Manual touch cycles Heidenhain
Manual Pilot Smart.NC Heidenhain
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point.
Price quoted includes professional de-installation and shipping preparation by Seller.
Price quoted includes the cost of loading onto truck supplied by Buyer.
Specs
Axis Travel Lengthwise X: 500 mm (19.7")
Axis Travel Crosswise Y: 450 mm (17.7")
Axis Travel Vertical Z: 400 mm (15.7")
Swivel axis: -65/+110 degrees
Rotation axis: n x 360
Axes: Five-axis simultaneous
Step-Tec Swiss made Spindle type: Motor
Spindle max. rotations: 20,000
Spindle power: 36 kW (48 hp)
Spindle torque: 120 Nm (88 lb/ft)
Spindle taper: HSK-A63
Rapid traverse X/Y/Z: 30/30/30 m/min (1,181 ipm)
Rapid traverse B-Axis (swivel): 32 rpm
Rapid traverse C-Axis (rotary): 112 rpm
Automatic tool changer: 60 position

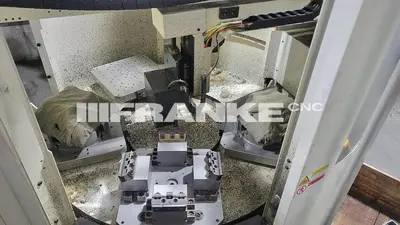

Number of pallet stations this machine is equipped with: 5
Pallet type and size: System 3R Delphin 400 mm x 400 mm
Pallet changing time: 30 sec.
Maximum workpiece weight (3/5 axis): 300 kg/200 kg (661/441 lb)
Control: Heidenhain iTNC 530
