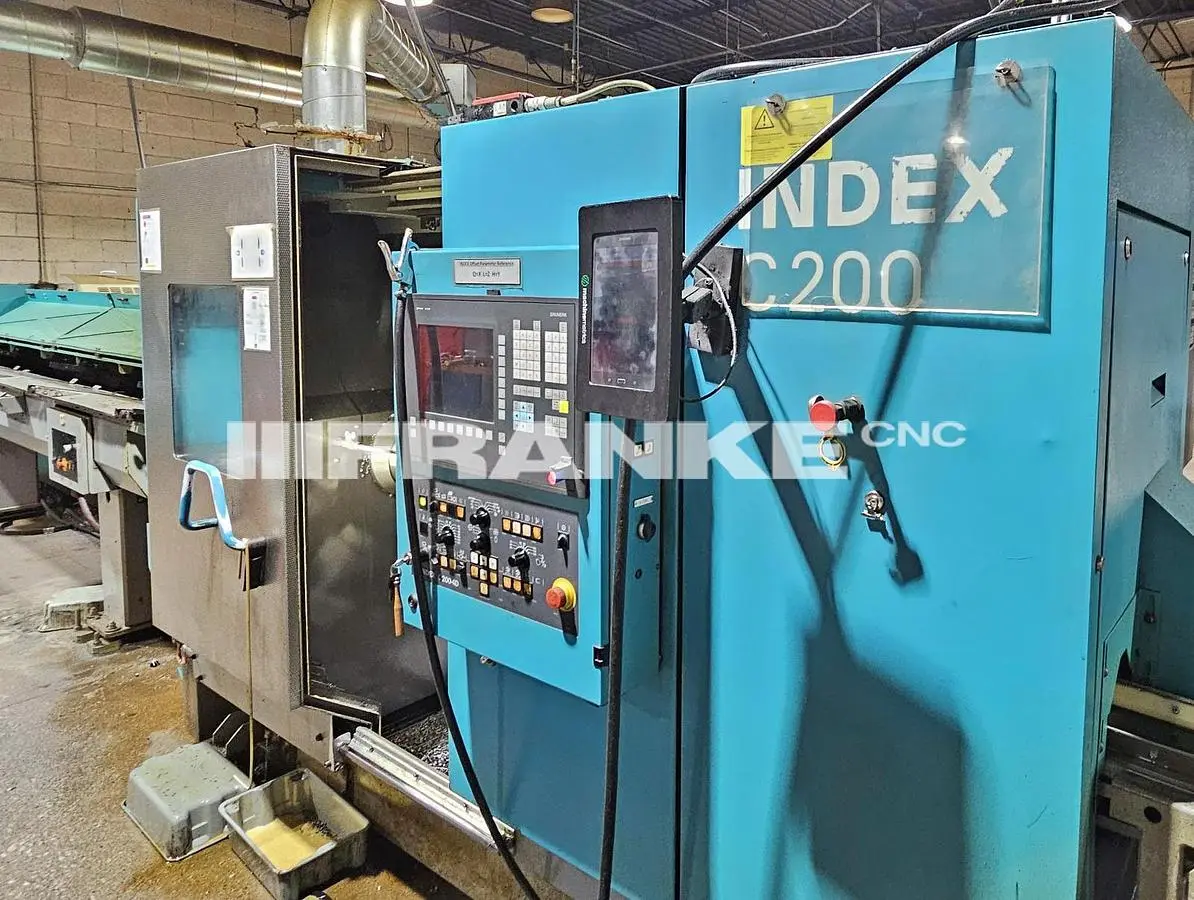

USED 2008 INDEX C200
Overview
Equipped With:

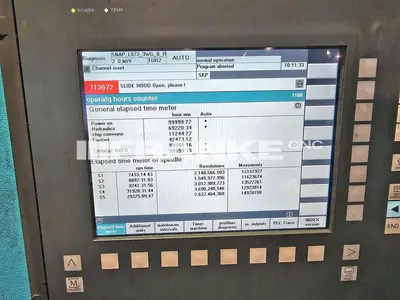

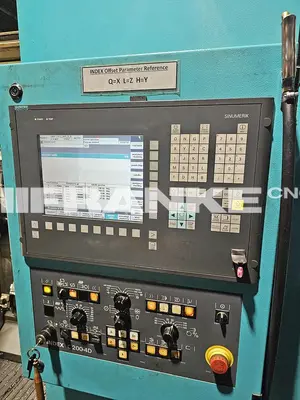

INDEX control system C200-4D with flat screen display
Chip conveyor

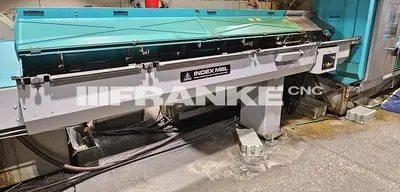

INDEX MBL bar loading magazine
KLH Kaltetechnik external chiller

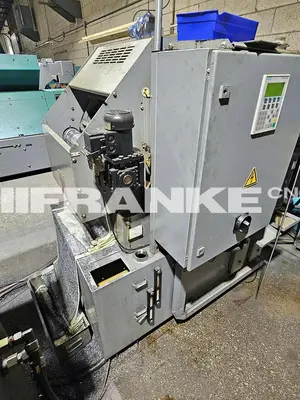

KNOLL paper band filter unit
HAINBUCH SPANNTOP collet chuck on main spindle
HAINBUCH SPANNTOP collet chuck on counter spindle
Finished parts conveyor
Miscellaneous used live tool holders with the machine
Preparation for the connection of a coolant mist extraction and filter system
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point.
Price quoted includes professional de-installation and shipping preparation by Seller.
Price quoted includes the cost of loading onto truck supplied by Buyer.
Specs
Main spindle bar capacity: 65 mm
Main spindle speed max.: 5,000 rpm
Main spindle power 100%/40%: 25/33 kW
Main spindle torque max. 100%/40%: 112/150 Nm
Main spindle C axis resolution: 0.00014 degree
Counter spindle bar capacity: 65 mm
Counter spindle speed max.: 5,000 rpm
Counter spindle power 100%/40%: 16.5/22 kW
Counter spindle torque max. 100%/40%: 75/100 Nm
Counter spindle slide travel Z: 700 mm
Counter spindle rapid traverse: 50 m/min
Counter spindle C axis resolution: 0.00014 degree
Tool turrets 1,2,3 number of stations: 14 stations VDI25 mounting
Tool turrets 1,2,3 speed max.: 8,000 rpm
Tool turrets 1,2,3 power at 25%: 6.5 kW
Tool turrets 1,2,3 torque at 25%: 16 Nm
Tool carrier 1 slide travel X, rapid traverse: 110 mm/30 m/min
Tool carrier 1 slide travel Y, rapid traverse: 100 mm/15 m/min
Tool carrier 1 slide travel Z, rapid traverse: 320 mm/50 m/min
Tool carrier 2 slide travel X, rapid traverse: 110 mm/30 m/min
Tool carrier 2 slide travel Y, rapid traverse: 100 mm/15 m/min
Tool carrier 2 slide travel Z, rapid traverse: 550 mm/50 m/min
Tool carrier 3 slide travel X, rapid traverse: 180 mm/30 m/min
Gantry-type removal unit workpiece weight max.: 3.5 kg
