USED 2004 INDEX ABC
Overview
Equipped With:

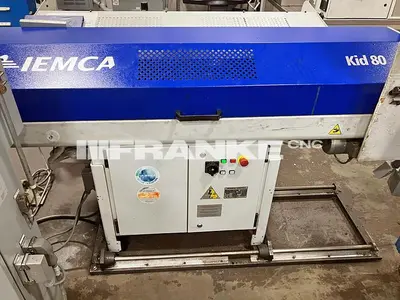

2016 IEMCA Kid 80 bar feeder. Maximum bar length 1,615 mm (5'4")
KNOLL chip conveyor and coolant system
Oil mist extractor
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point.
Price quoted includes the cost of loading onto truck supplied by Buyer.
Buyer is responsible for trucking.
Specs
Machine weight: 6,395 lbs
Main spindle maximum speed: 5,000 rpm
Counter spindle maximum speed: 4,500 rpm
Back working with synchron: Yes
Live tools: Yes
Live tool maximum speed: 6,000 rpm
C-Axis: Yes
Y-Axis or B-Axis: No
Dedicated milling spindle: No
Number of spindles: 1
Number of turrets: 2
"W" serration turret: No
Total number of tools: 17
Material type: Bar
Maximum bar diameter: 60 mm
Maximum part length: 280 mm
Steady rest: No
Oil or coolant: Coolant
VDI tool size: 25
Tools per turret: 7/6
Control: SIEMENS 840D
Rigid tapping: Yes
HMI SW version: 06.040.2.00
Ejector or gantry: Ejector
Counter/Sub spindle clamping mechanism: Jaws (sync)
Materials run on this machine: ONLY aluminum over the life of machine
