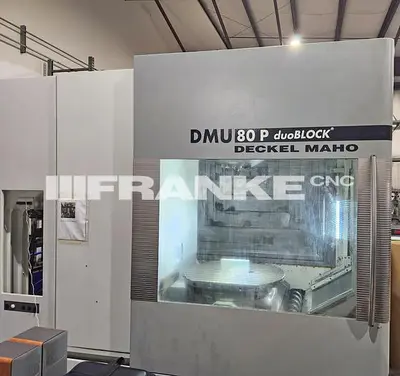

USED 2005 DMG MORI DECKEL MAHO DMU 80P DUOBLOCK
Overview
Machine was manufactured at DECKEL MAHO Pfronten GmbH in Pfronten, Germany
EQUIPPED WITH:

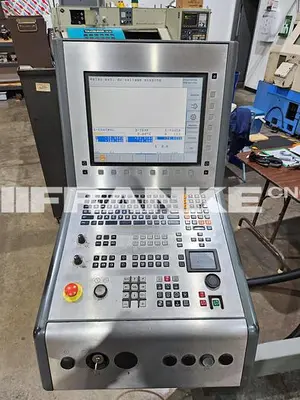

HEIDENHAIN iTNC 530 control

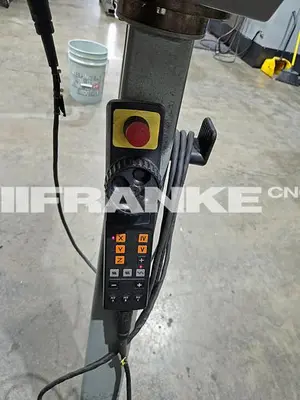

Electronic hand wheel for control
Production Package consisting of:
-Chip conveyor
-Chip flusher

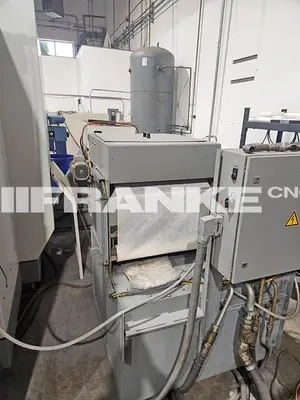

-Filtering unit
-CTS Coolant through spindle center 40 bar (580 PSI)
-158.5 gallons coolant tank
Specs
Working range X-axis: 31.5"
Working range Y-axis: 31.5"
Working range Z-axis: 31.5"
Maximum workpiece diameter: 35.43" (900 mm)
Max. feed speed X/Y/Z: 2,362.2 ipm.
Max. rapid traverse speed X/Y/Z: 196.9 ft/min.
Machine weight: 30,864.4 lbs.
Tool changer tool fitting: CAT 40

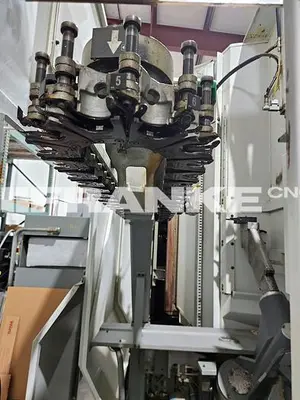

Tool magazine/changer type: Chain/horizontal
Number of magazine pockets: 40
Chip-to-chip time: 5 seconds
Motor spindle (CAT 40) 18,000 rpm. Power (40/100% DC): 37.5/25.5 hp.
Max. torque (40/100% DC): 89.2/60.5 ft./lbs.

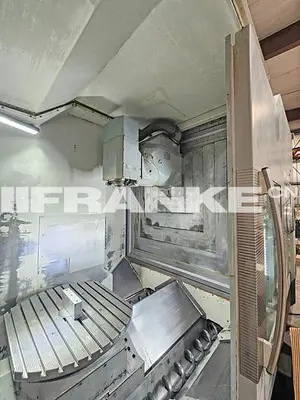

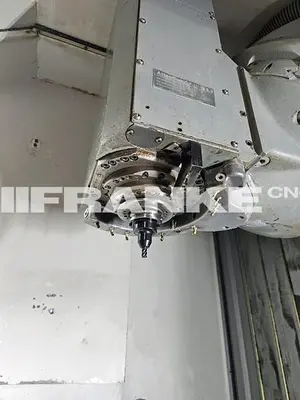

NC-controlled swivel milling head (B-axis) swivel range: 0-190 degrees
Swivel time vertical-horizontal and/or horizontal/vertical: 1.2 seconds
Head rapid traverse and feed: 30 rpm.

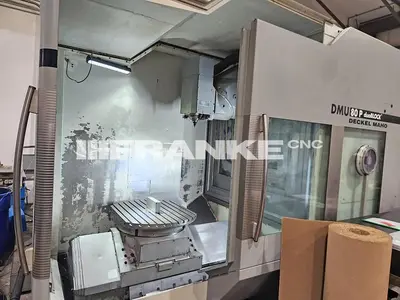

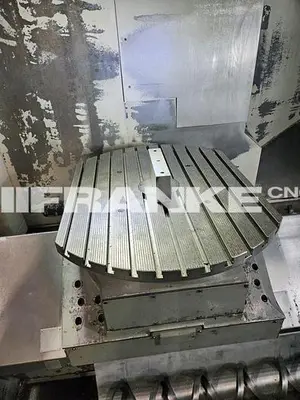

NC-controlled rotary table (C-axis) dimensions: 35.4" diameter x 27.6"
NC rotary table maximum load: 3,086.4 lbs.
Rapid traverse: 30 rpm.
