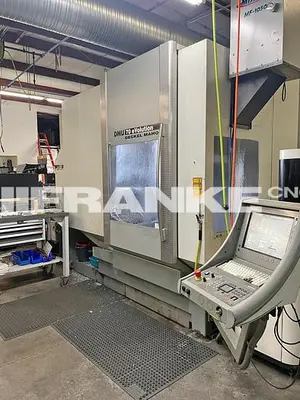

USED 2001 DMG MORI DECKEL MAHO DMU 70 EVOLUTION
Overview
**NEW spindle and oil mist extractor in 2024**
Machine was sold as a demo machine and first installed new in 4/2003
EQUIPPED WITH:
-Production package for 60 tools:
Internal coolant supply thru the spindle (CTS) 40 bar (580 PSI) 23 L/min (6.07 gallon/min) flow rate
900 L (238 gallons) coolant tank
Air purge for linear measuring system
Chip conveyor
-HEIDENHAIN Linear measuring system glass scales X/Y/Z axes
-HEIDENHAIN rotary encoders B/C axes
-Oil and emulsion mist separator
-BLUM laser tool measuring for measurement of tool length and diameter
-RENISHAW MP10 infrared touch probe
-Coolant spray gun for swarf removal
-Multitap transformer
Specs
Control: HEIDENHAIN MillPlus IT 3D path control with electronic handwheel
Working area length (X): 29.5"
Working area width (Y): 23.6"
Working area height (Z): 20.5"
Feed Range: 787.4 IPM
Rapid Traverse: 1,968 IPM
AC Main Drive 40% DC Power: 46.9 HP (35 kW)
AC Main Drive 100% DC Power: 33.5 HP (25 kW)
Spindle Taper: HSK-A63
Spindle Speeds: 20-18,000 RPM
Automatic tool changer: 60 position

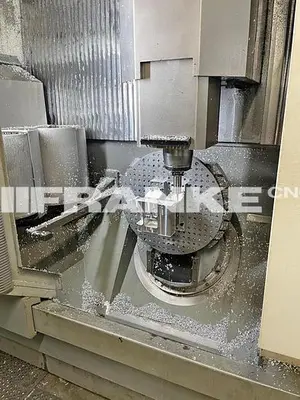

NC Rotary Table with NC Swivel Axis including table cooling: RPM of rotary axes B/C 19/21 RPM
Table work clamping area: 27.6" x 19.7"
Center Bore: 30MM H7
Number/Spacing of T-Slots: 7/63MM 14H
Swivel Axis: 0-180 degrees
Maximum table loading: 770 lbs
