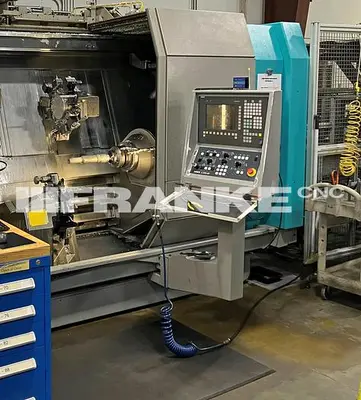

USED 2008 INDEX G250
Overview
Has only cut aluminum since new
Specs

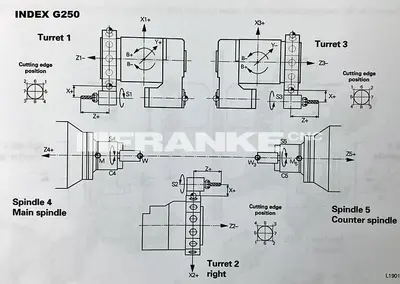

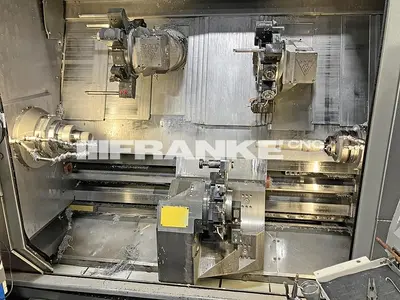

Number of turrets: 3
Tools per turret: 12
Tooling: VDI-30
Control: SIEMENS D
Machine weight: 29,768 lbs
Number of spindles: 2
Maximum bar diameter: 90 mm
Maximum part length: 1,400 mm
Main spindle max. speed: 3,500 RPM
Counter spindle max. speed: 3,500 RPM
Live tools: Yes
VDI Tool Size: 30
Total number of tools: 36
Live tool max. speed: 6,000 rpm
C-Axis: Yes
Y-Axis: Turret 1 and 3
B-Axis: Turret 1 and 3
"W" serration turret: Yes
Material type: Blank
Steady rest: Yes
Oil or coolant: Coolant
Rigid tapping: Yes
HMI software version: 06.04.25.00

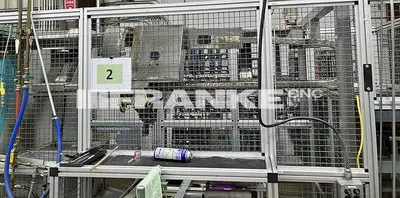

Ejector or gantry: Gantry
Counter/sub spindle clamping mechanism: Jaws/collet/mandrel
