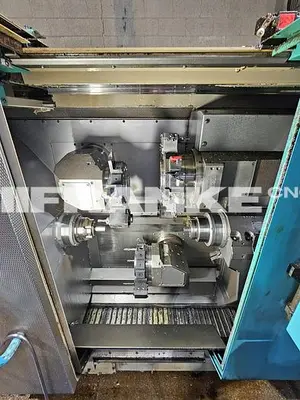

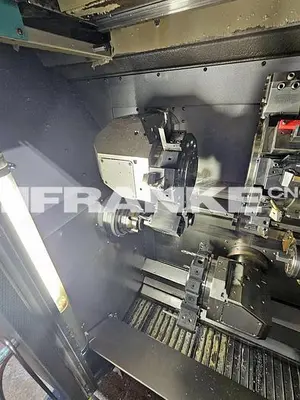

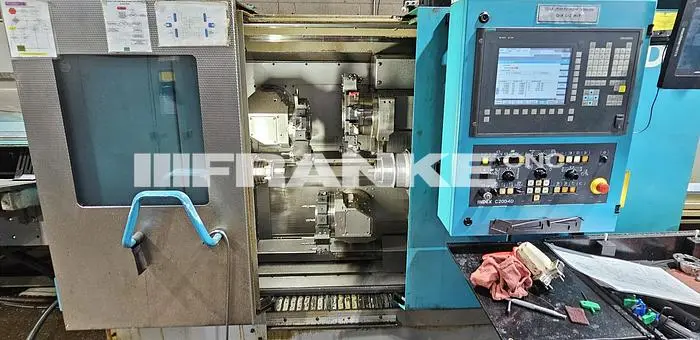

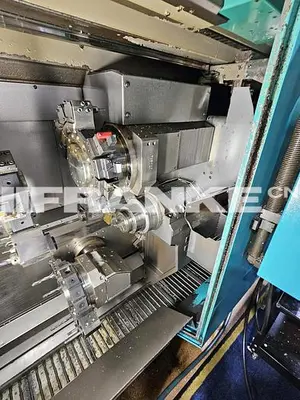

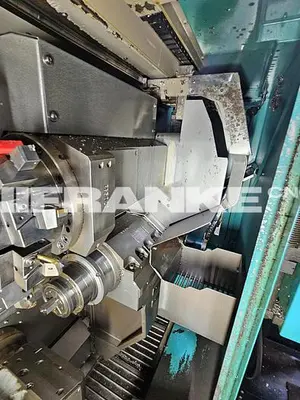

USED 2008 INDEX C100
Overview
Equipped With:

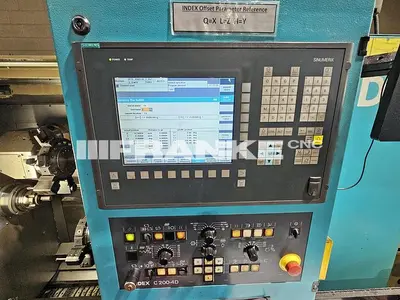

INDEX control system C200-4D with flat screen display
Chip conveyor
INDEX MBL 42/3700 bar loading magazine
External chiller system
KNOLL paper band filter unit
Collet chuck on main spindle
Collet chuck on counter spindle
Finished parts conveyor
Three (3) used live tool holders with the machine
Preparation for the connection of a coolant mist extraction and filter system
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point.
Price quoted includes professional de-installation and shipping preparation by Seller.
Price quoted includes the cost of loading onto truck supplied by Buyer.
Specs
Main spindle bar capacity: 42 mm
Main spindle speed max.: 7,000 rpm
Main spindle power 100%/40%: 22/29 kW
Main spindle torque max. 100%/40%: 50/65 Nm
Main spindle C axis resolution: 0.00014 degree
Counter spindle bar capacity: 42 mm
Counter spindle speed max.: 7,000 rpm
Counter spindle power 100%/40%: 16.5/19 kW
Counter spindle torque max. 100%/40%: 32/43 Nm
Counter spindle slide travel Z: 500 mm
Counter spindle rapid traverse: 60 m/min
Counter spindle C axis resolution: 0.00014 degree
Tool turrets 1,2,3 number of stations: 14 stations VDI20 mounting cylindrical shank D20x40
Tool turrets 1,2,3 speed max.: 8,000 rpm
Tool turrets 1,2,3 power at 25%: 4.2 kW
Tool turrets 1,2,3 torque at 25%: 11 Nm
Tool carrier 1 slide travel X, rapid traverse: 70 mm/60 m/min
Tool carrier 1 slide travel Y, rapid traverse: 70 mm/15 m/min
Tool carrier 1 slide travel Z, rapid traverse: 250 mm/60 m/min
Tool carrier 2 slide travel X, rapid traverse: 70 mm/60 m/min
Tool carrier 2 slide travel Y, rapid traverse: 70 mm/15 m/min
Tool carrier 2 slide travel Z, rapid traverse: 400 mm/60 m/min
Tool carrier 3 slide travel X, rapid traverse: 125 mm/35 m/min
Gantry-type removal unit workpiece weight max.: 2 kg
