USED 2000 DMG MORI DECKEL MAHO DMU 50 EVOLUTION

Subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement, we offer for your consideration:

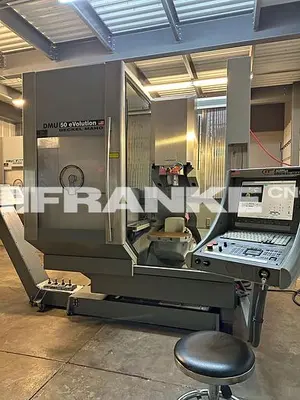

One used 2000 DMG MORI DECKEL MAHO DMU 50 eVolution full 5-Axis simultaneous VMC:

Fly into MKE to inspect under power in our Wisconsin showroom by appointment

History
Machine was manufactured at DECKEL MAHO Seebach GmbH-Germany
Machine was featured at the IMTS and first installed new in the USA 10/2000

Clamp once, machine 5-sides
Table on machine swivels 0-180 degrees and rotates 360 degrees which allows for 5-sided 5-axis simultaneous machining with 1 workpiece clamping.

Working area
Longitudinal (X) 19.7" (500 mm)
Transverse (Y) 16.5" (420 mm)
Vertical (Z) 15.0" (380 mm)

Main drive
AC motor spindle drive power 100% DC 33.5 hp (25 kW)
AC motor spindle drive power 40% DC      46.9 hp (35 kW)
Work spindles, tool mounting                        CAT 40
Speed range                                                  18,000 rpm
Number of gear steps                                    None
Maximum spindle torque                              95.9 ft/lbs (130 Nm)
Spindle bearing diameter                             3.15” (80 mm)

Tool changer
Number of tools                                               32
Maximum tool weight                                    13.22 lbs (6 kg)
Maximum tool diameter wo vacant places  3.15” (80 mm)
Maximum tool diameter with vacant places   4.13” (105 mm)
Maximum tool length                                     11.02” (280 mm)
Chip to chip time                                            Approximately 6 seconds

Feed
Feed range, linear axes                             787.4 ipm (20 m/min)
Rapid traverse, linear axes                         1,968 ipm (50 m/min)

Path measuring system
Direct, Heidenhain glass scales, resolution 1 um (0.00004”) for X/Y/Z

Control
Heidenhain MillPlus iT

Weight
Weight of machine with NCSRT                 Approximately 11,374 lbs

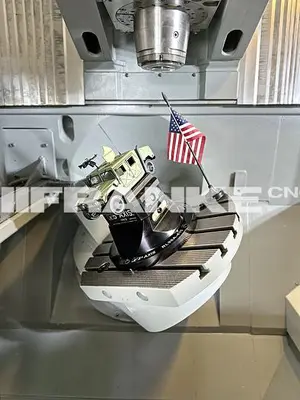

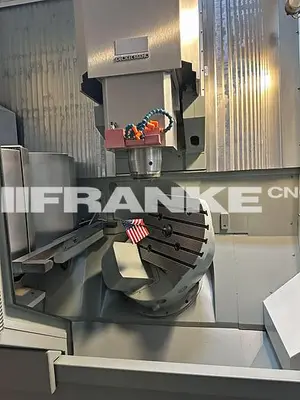

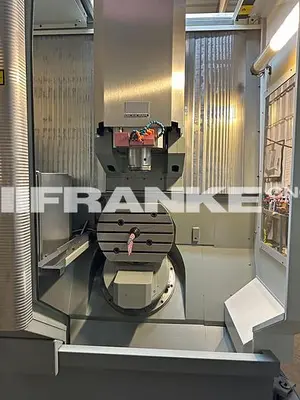

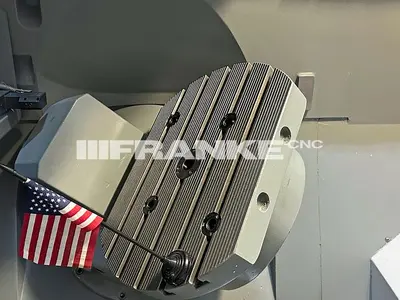

NC-rotary table with NC-swivel axis
Clamping area                                             19.7” diameter x 15” (500 mm x 380 mm)
Center bore                                                   1.2” H6 diameter
No./Spacing of T-slots                                   5/2.5” 14H7
Swivel axis (B axis)                                      0 degrees through 180 degrees
Rapid traverse (Swivel B axis)                      26 rpm
Table swivel time, horizontal to vertical         Approximately 1.5 seconds
Rotary axis (C axis)                                      0-360 degrees (continuous, full 4th axis)
Rapid traverse (Rotary C axis)                     33 rpm
Table loading maximum                                440 lbs (200 kg)
Table measuring system                               Direct, Heidenhain angle encoders for B & C axes
Table cooling                                                 Drive cooling for B & C axis with heat exchanger

Flood coolant
Amount of coolant                                  52.8 gallons (200 l)
Flow rate                                                  5.28 gallon/minute (20 l/minute)

CTS Coolant Thru The Spindle
Amount of coolant 238 gallons (900 l)
Pressure of coolant thru the spindle 580 PSI (40 bar)

Equipped with
BLUM laser tool measuring of tool length, diameter, & broken tool detection
BEMA programmable coolant nozzles
Chip conveyor

Price quoted in United States Dollars
Price quoted is FOB Origin
Origin is Hartland, WI

To the best of our knowledge all details listed above are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
